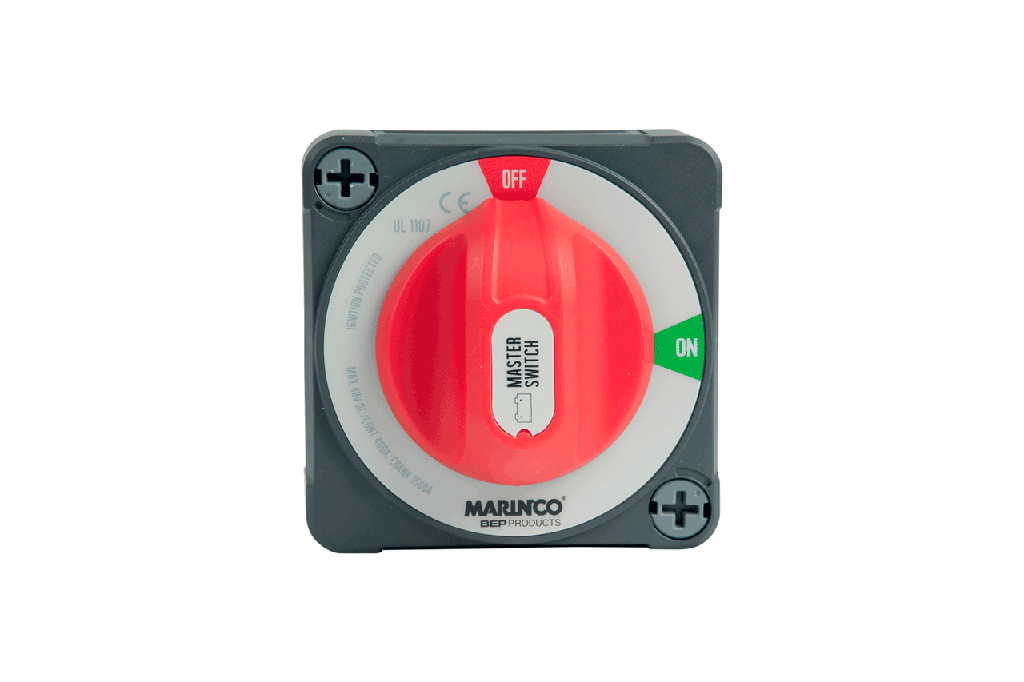

BEP PRO INSTALLER EZ-MOUNT BATTERY SELECTION SWITCHES

STANDARD MOUNT SWITCHES

The new series of powerful 400 Amp rated battery switches have very high quality features and performance that satisfy both the installer and the end user at the same time. Three mounting options, surface, rear panel, front panel, and

optimized cable access make installation safe and fast. They have been designed

using the best materials to withstand the most hostile marine environment

EZ MOUNT SWITCHES

These switches offer a revolutionary three-step installation procedure, with front cable connection.

Just remove the bottom of the switch, wire up, and replace the cover with the knob.

EZ-Mount switches have a standard footprint that allows them to be installed alongside other Pro Installer products, have a continuous rating of 400 Amp and intermittent rating of 600 Amp

ALL PRO INSTALLER SWITCHES FEATURES

• Continuous rating: 400 Amp DC

• Intermittent rating: 600 Amp (5 mins)

• Cranking rating: 1500 Amp (10 secs)

• Waterproof to IP66

• Tinned copper 10 mm (3/8”)studs

• Stainless steel washers/nuts

• Fiber reinforced plastics

• Removable knob allows isolation during servicing

• 3 removable sideplates for protection

• Industry standard 3.85” x 3.85” footprint

• Dimensions mm (“): 97.8 x 97.8 (3.85 x 3.85)

• Tested to UL1107 ignition protection, CE
