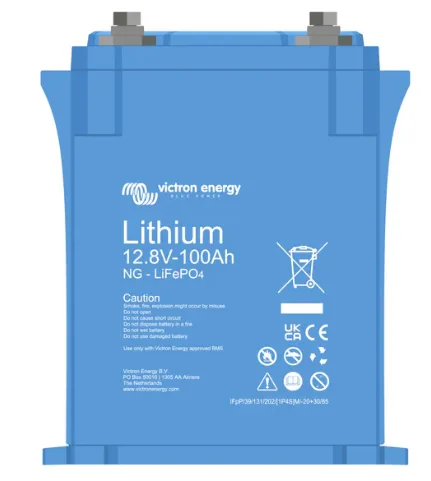

Victron Energy – 12V/100Ah Lithium LifePO4 NG Battery

The Victron Energy Lithium NG 12.8V/100Ah Battery delivers reliable energy storage for RVs, camper vans, marine systems, and off-grid installations. Using lithium iron phosphate (LiFePO₄) technology, it provides 1.28kWh of nominal energy in a compact, lightweight design. An integrated shunt measures battery voltage, current, and temperature for accurate monitoring through compatible Victron systems.

FEATURES

• LiFePO₄ technology: Lithium iron phosphate chemistry for durable energy storage.

• 100Ah capacity: Provides 1.28kWh of nominal energy at 12.8V.

• Integrated shunt: Supplies battery measurements to the BMS for state-of-charge monitoring and alarms.

• Smart monitoring: View battery data through VictronConnect or a compatible GX device and VRM system.

• Expandable battery banks: Supports series, parallel, and series-parallel configurations with a compatible battery management system.

• High current capability: Supports up to 100A continuous charging and discharging.

• Long cycle life: Rated for 2,500 cycles at 80% depth of discharge, 3,000 cycles at 70%, or 5,000 cycles at 50%, under specified conditions.

• IP65 protection: Dust-tight enclosure protected against water jets.

• Flexible installation: Can be mounted upright or on its side, but never with the terminals facing downward.

• Secure mounting: Compatible with mounting straps or brackets.

SPECIFICATIONS

• Battery chemistry: Lithium iron phosphate (LiFePO₄ / LFP)

• Nominal voltage: 12.8V DC

• Nominal capacity: 100Ah

• Nominal energy: 1,280Wh (1.28kWh)

• Maximum continuous charge current: 100A

• Maximum continuous discharge current: 100A

• Maximum pulse discharge current: 200A for 10 seconds

• Charge voltage: 14.0–14.2V

• Float voltage: 13.5V

• End-of-discharge voltage: 11.2V

• Round-trip efficiency: 92%

• Self-discharge: Up to 3% per month at 25°C

• Operating temperature: Discharge: -20°C to +50°C; charge: +5°C to +50°C

• Maximum humidity: 95%, non-condensing

• Protection rating: IP65

• Power connections: M8 threaded inserts and bolts

• Dimensions (H × W × D): 235 × 197 × 160mm (9.3 × 7.8 × 6.3in)

• Weight: Approximately 9.5kg (21lb)

• Warranty: 3-year limited warranty, according to the Ecosolaris listing

IMPORTANT – BATTERY MANAGEMENT

A compatible Lynx Smart BMS NG is required and sold separately. Do not connect or operate this battery without the required BMS and a properly configured system. Follow Victron’s instructions for permitted series and parallel configurations.
