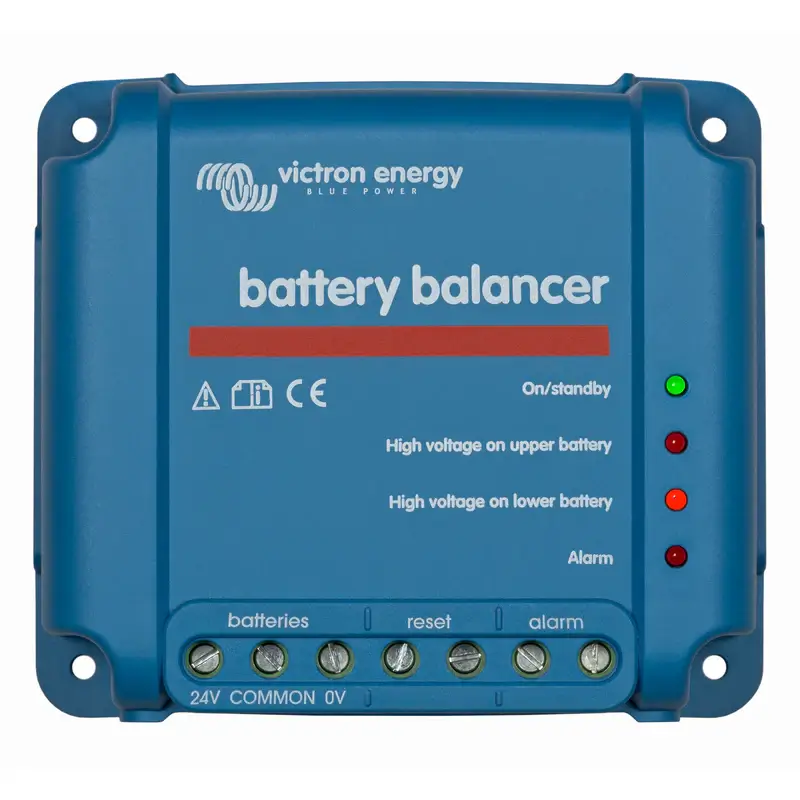

Victron Energy Battery Balancer

The Victron Energy Battery Balancer helps equalize the state of charge of two series-connected 12V batteries or multiple parallel strings of series-connected batteries. By monitoring the voltage of each battery in a 24V system, it compensates for voltage differences during charging. Multiple balancers can be connected for larger battery banks, including 48V systems.

FEATURES

• Automatic balancing: Transfers current from the higher-voltage battery to help equalize the state of charge.

• 24V battery systems: Activates when the system charging voltage rises above approximately 27.3V.

• 48V compatibility: Three balancers can be used to balance a 48V battery bank.

• Voltage deviation alarm: Built-in relay signals excessive voltage imbalance.

• Thermal protection: Includes protection against excessive temperature.

• Expandable system: Multiple balancers can be connected in parallel when required.

SPECIFICATIONS

• Input voltage range: Up to 18V per battery; 36V total

• Balancing current: Up to 0.7A under specified conditions

• Balancing activation threshold: 50mV voltage deviation

• Alarm trigger: 200mV voltage deviation

• Alarm relay: Normally open, rated 60V / 1A

• Operating temperature: -30°C to +50°C

• Maximum humidity: 95%, non-condensing

• Protection rating: IP22

• Connections: Screw terminals, up to 6mm² / AWG 10

• Dimensions (H × W × D): 100 × 113 × 47mm (3.9 × 4.4 × 1.9in)

• Weight: 0.4kg (0.88lb)

• Warranty: 5-year limited warranty

INSTALLATION

Mount vertically on a well-ventilated surface near the batteries, but never directly above them because of potentially corrosive battery gases. Follow the manufacturer’s wiring instructions and applicable electrical protection requirements.

IMPORTANT: This product balances compatible battery banks; it does not charge batteries. Confirm battery configuration and system voltage before installation.
