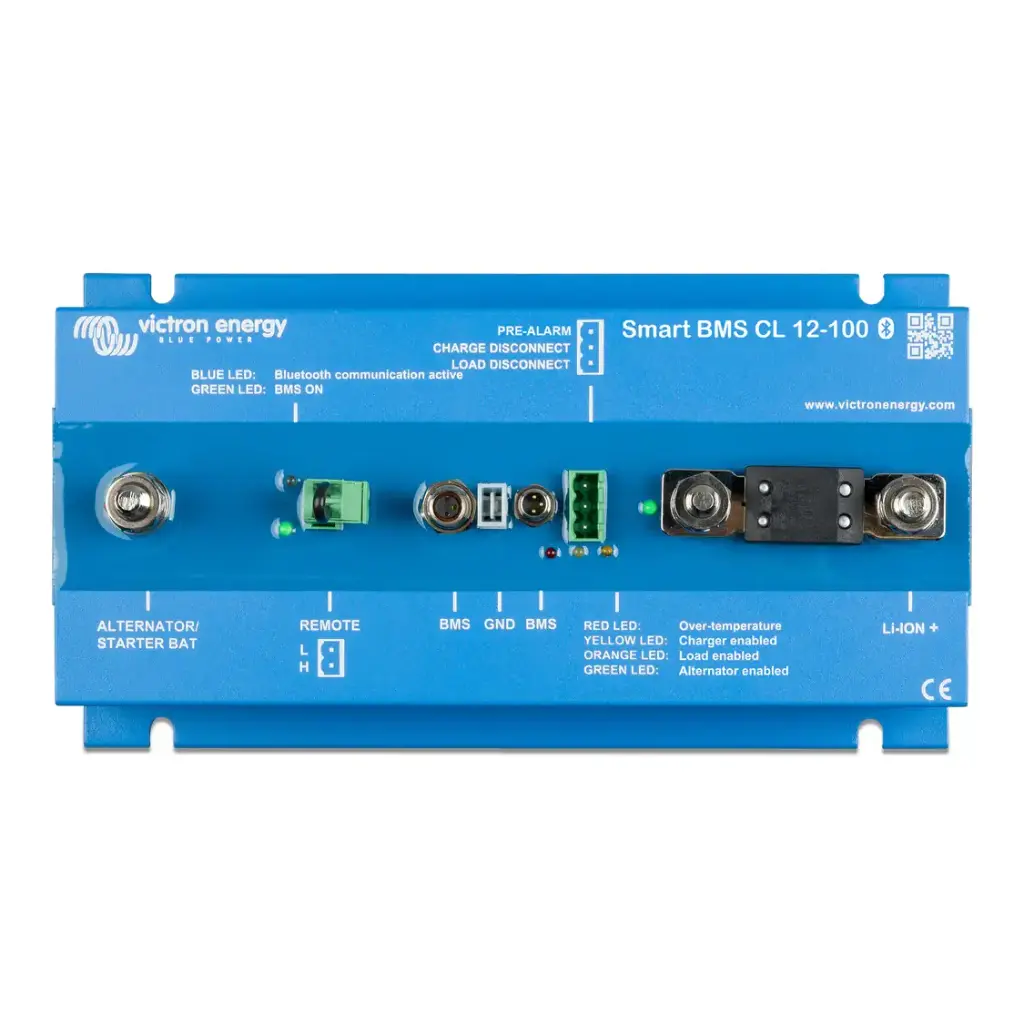

Victron Energy Smart BMS CL 12/100

DATA SHEET  MANUAL

The Victron Energy Smart BMS CL 12/100 manages and protects compatible Victron Lithium Battery Smart systems in RVs, boats and off-grid installations. Designed for 12V systems with a 12V alternator, it limits alternator charging current and monitors battery conditions to help prevent damage from low voltage, overvoltage and temperature extremes.

FEATURES

• 100A alternator charging: Configurable current limiting for alternator charging, with a dedicated alternator input.

• Lithium battery protection: Monitors battery cells and responds to low voltage, overvoltage and temperature conditions.

• Load disconnect: Sends a control signal to disconnect compatible DC loads when required.

• Charge disconnect: Signals compatible chargers to stop charging when necessary.

• Pre-alarm output: Provides a warning signal before a low-cell-voltage shutdown.

• Remote on/off: Allows the BMS and system to be controlled using an external switch.

• VictronConnect compatibility: Configure and monitor supported functions using the VictronConnect app.

• Rugged enclosure: IP65-rated electronics for protection against dust and water jets.

SPECIFICATIONS

• System voltage: 12V

• Battery compatibility: Victron Lithium Battery Smart, 12.8V

• Maximum alternator charging current: 100A, with a 125A fuse

• Charging start voltage: Above 13V

• Current consumption, remote on: 16mA, excluding load and charge output current

• Current consumption, remote off: 5mA; BMS protection remains active

• Load disconnect output: Normally high; 10mA source-current limit

• Charge disconnect output: Normally high; 10mA source-current limit

• Pre-alarm output: Maximum 1A; not short-circuit protected

• DC power connections: M8; tightening torque 10Nm

• Battery negative connector: 6.3mm female Faston terminal

• Operating temperature: -40°C to +60°C

• Humidity: Up to 100% maximum / 95% average

• Protection rating: IP65

• Dimensions: 65 × 120 × 224mm (2.6 × 4.7 × 8.8in)

• Weight: 1.6kg (3.5lb)

IMPORTANT

This BMS is designed for compatible Victron 12.8V Lithium Battery Smart batteries and 12V systems. It is not a universal BMS for arbitrary lithium batteries. Follow Victron's wiring instructions and install the specified alternator-port fuse. The load and charge disconnect outputs are control signals, not high-current power outputs; compatible equipment must be connected as directed in the manual.
