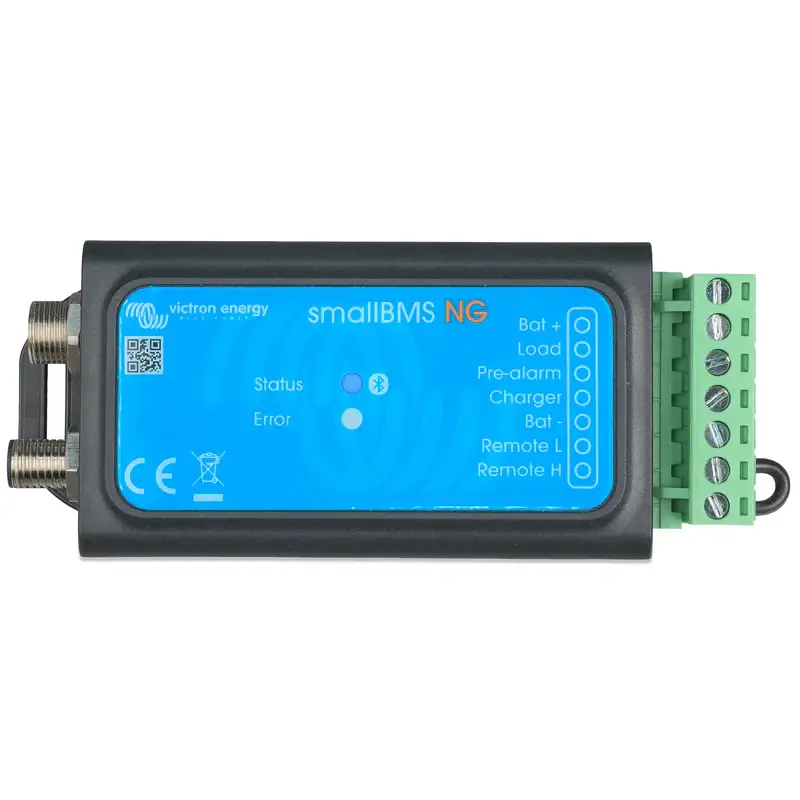

Victron Energy SmallBMS NG

SKU:

202​2323582

https://canadarv.com/web/image/product.template/5836/image_1920?unique=34a0ead

112.74 $ 112.74 CAD 112.74 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

Technical SpecificationS  User manual

The Victron Energy smallBMS NG is an all-in-one battery management system designed specifically for Victron Lithium NG batteries. It monitors battery status and helps protect the system by controlling charging and load-disconnect signals, while providing an early warning of low battery voltage. Built-in Bluetooth enables wireless monitoring, configuration, and firmware updates through the VictronConnect app.

FEATURES

  • Lithium NG protection: Monitors and protects compatible Victron Lithium NG battery systems.

  • Integrated Bluetooth: View battery state of charge, temperature, warnings, and alarms through VictronConnect.

  • Load disconnect output: Controls compatible devices with remote on/off functionality to help prevent excessive battery discharge.

  • Charge disconnect output: Signals compatible chargers to stop charging when required.

  • Low-voltage pre-alarm: Activates a visual or audible warning before load disconnection due to low cell voltage.

  • Remote on/off control: Enables external control of the BMS outputs.

  • Flexible system configuration: Supports compatible 12V, 24V, and 48V battery banks.

SPECIFICATIONS

  • Operating voltage: 8–70V DC

  • Load disconnect output: Maximum source current of 1A

  • Charge disconnect output: Maximum source current of 500mA

  • Pre-alarm output: Maximum source current of 500mA

  • Current consumption: Approximately 3mA with remote control on, excluding output loads

  • Communication: Bluetooth via VictronConnect

  • Protection rating: IP20

  • Operating temperature: -20°C to +50°C (-4°F to +122°F)

  • Maximum humidity: 95%, non-condensing

  • Housing: Matte-black ABS plastic

  • Dimensions (H × W × D): Approximately 106 × 42 × 23mm (4.2 × 1.7 × 0.9in)

  • Weight: Approximately 0.1kg (0.22lb)

  • Warranty: 5-year limited warranty

IMPORTANT – COMPATIBILITY

Designed exclusively for Victron Lithium NG batteries; it is not compatible with the older Lithium Battery Smart series. The smallBMS NG does not have a VE.Bus interface and is not suitable for managing VE.Bus MultiPlus or Quattro inverter/chargers. Compatible external devices and correct wiring are required for the charge- and load-disconnect functions.
