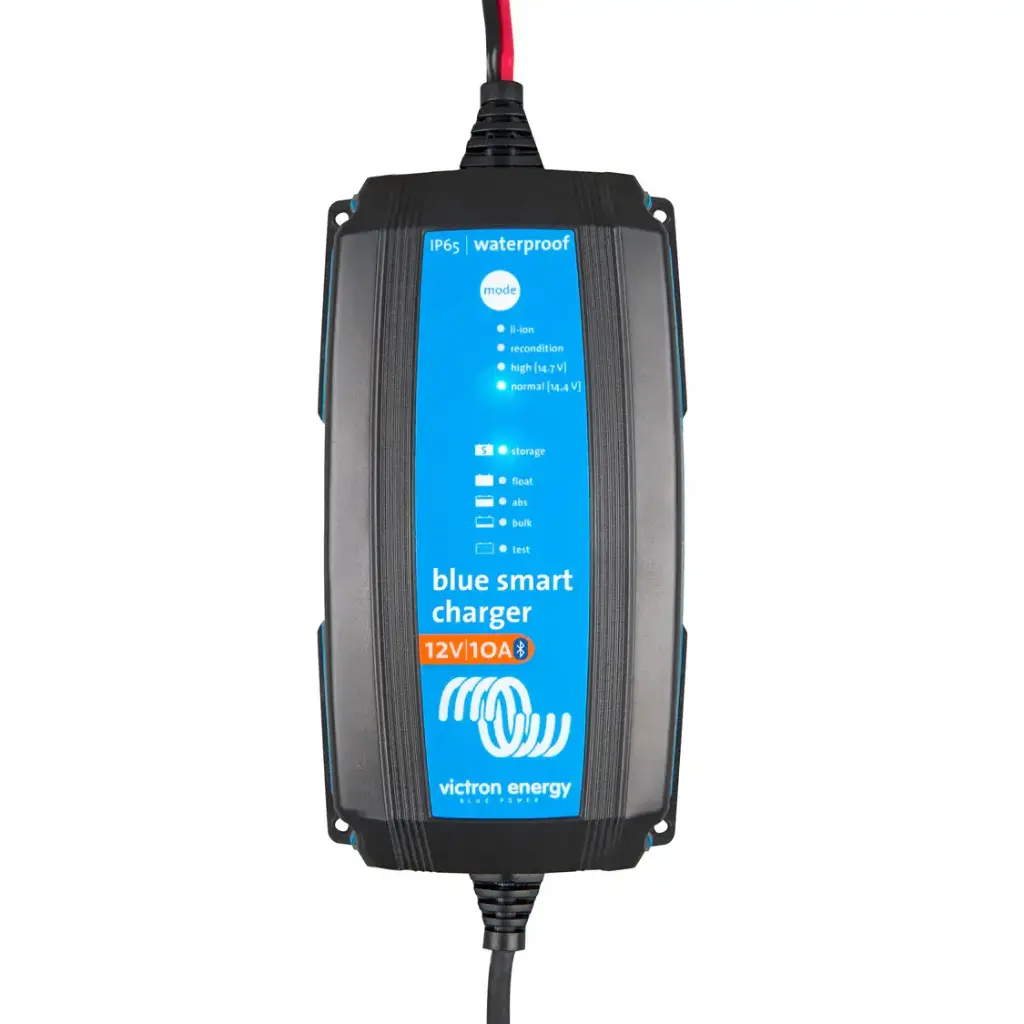

Victron Energy Blue Smart IP65 Charger 12V/10 120V NEMA 1-15P

DATA SHEET   USER MANUAL

The Victron Energy Blue Smart IP65 Charger 12/10 is a professional smart battery charger for RVs, boats, vehicles and workshop applications. Its built-in Bluetooth allows you to monitor charging status and configure settings through the VictronConnect app. The adaptive charging algorithm helps maintain battery health, while its sealed IP65 housing protects against dust and water exposure.

FEATURES

• 10A charging current: For compatible 12V battery systems.

• Low-current mode: Selectable 3A charging for smaller batteries.

• Built-in Bluetooth: Monitor and configure the charger with VictronConnect.

• Adaptive charging: Seven-stage algorithm for lead-acid batteries and four-stage charging for compatible lithium batteries.

• Battery recovery: Helps recover certain deeply discharged batteries.

• Multiple battery connections: Includes battery clamps and M8 ring terminals.

• Protection: Reverse-polarity, output short-circuit and over-temperature protection.

• Silent operation: Fanless convection cooling.

• IP65 housing: Dust-tight and protected against water jets.

SPECIFICATIONS

• Battery voltage: 12V DC

• Maximum charging current: 10A

• Low-current mode: 3A

• AC input: 100–130V, 50–60Hz nominal (45–65Hz operating range)

• Absorption voltage: 14.4V Normal / 14.7V High / 14.2V Lithium

• Float voltage: 13.8V Normal/High; not used in Lithium mode

• Storage voltage: 13.2V Normal/High / 13.5V Lithium

• Maximum efficiency: 94%

• Standby consumption: 0.5W

• AC power cord: 1.8m (6ft), US NEMA 1-15P plug

• Battery cable: 1.5m (5ft), with battery clamps and M8 ring terminals

• Operating temperature: -20°C to +50°C; full rated output up to +30°C

• Protection rating: IP65

• Dimensions: 60 × 105 × 190mm (2.4 × 4.1 × 7.5in)

• Weight: 0.9kg (2lb)

• Warranty: 5-year limited warranty

IMPORTANT

Select the correct charging profile for your battery chemistry and follow the battery manufacturer's voltage and charging recommendations. This model uses a 120V AC input with a US NEMA 1-15P plug.
