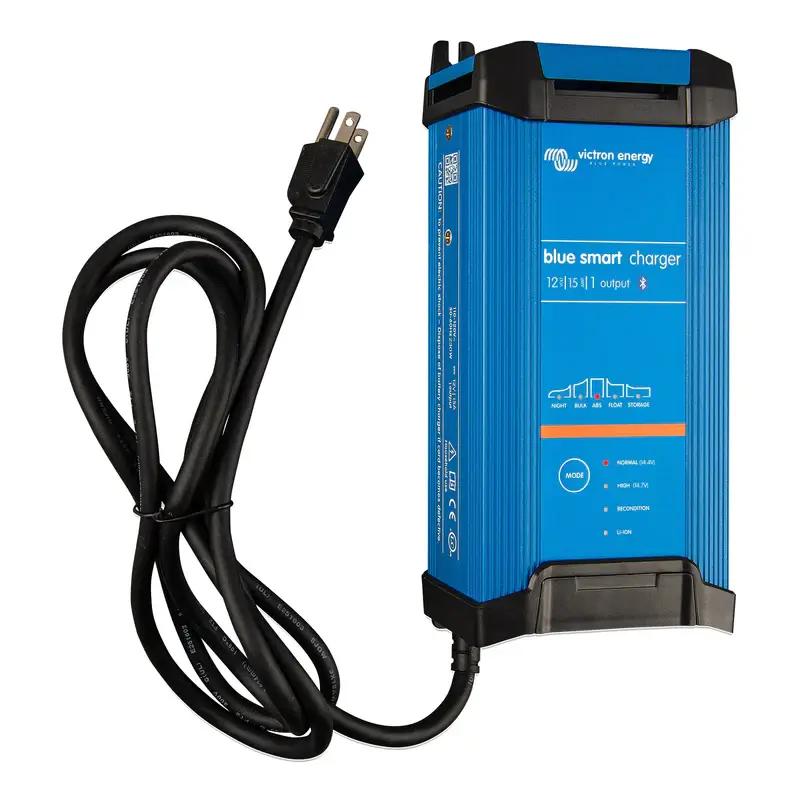

Victron Energy Blue Smart IP22 Charger 12V/15(1) 120V NEMA 5-15 - single output

Datasheets  Manual

The Victron Energy Blue Smart IP22 12V/15A is an intelligent battery charger designed for RVs, camper vans, boats, vehicles, and workshop use. With built-in Bluetooth and adaptive charging technology, it automatically optimizes the charging process to help maintain battery performance and extend service life.

FEATURES

• Bluetooth connectivity: Monitor battery voltage and current, adjust settings, and update firmware through the VictronConnect app.

• Adaptive six-stage charging: Test, bulk, absorption, recondition, float, and storage modes help optimize charging.

• Lead-acid and lithium compatibility: Select the appropriate charging algorithm for the battery type.

• Programmable settings: Adjust charging voltages, reconditioning, and temperature compensation through the app.

• Storage mode: Reduces charging voltage when the battery is not in use to help limit aging.

• Night and Low modes: Reduce charging current to 50% of nominal output for quieter operation.

• VE.Smart Networking: Supports synchronized charging with compatible Victron chargers and optional battery-monitoring devices.

• Built-in protection: Protection against reverse polarity, output short circuits, and overheating.

• Single output: One battery charging connection.

• Easy installation: Includes a 120V AC power cord with a NEMA 5-15 plug and screw-terminal battery connections.

SPECIFICATIONS

• Model: BPC121545102

• AC input voltage: 100–130V AC (nominal 110–120V)

• Input frequency: 45–65Hz

• Battery voltage: 12V

• Maximum charging current: 15A

• Charging current in Night/Low mode: 7.5A

• Maximum efficiency: 94%

• Standby power consumption: 0.5W

• Protection rating: IP22

• Operating temperature: -4°F to 122°F (-20°C to +50°C); full rated output up to 104°F (40°C)

• AC connection: 6 ft (1.8 m) cable with NEMA 5-15 plug

• Battery connections: Screw terminals, up to 16mm² (AWG 6)

• Dimensions (H × W × D): 9.7 × 4.3 × 2.6 in (245 × 108 × 65 mm)

• Weight: 2.9 lb (1.3 kg)

• Warranty: 5-year limited warranty
