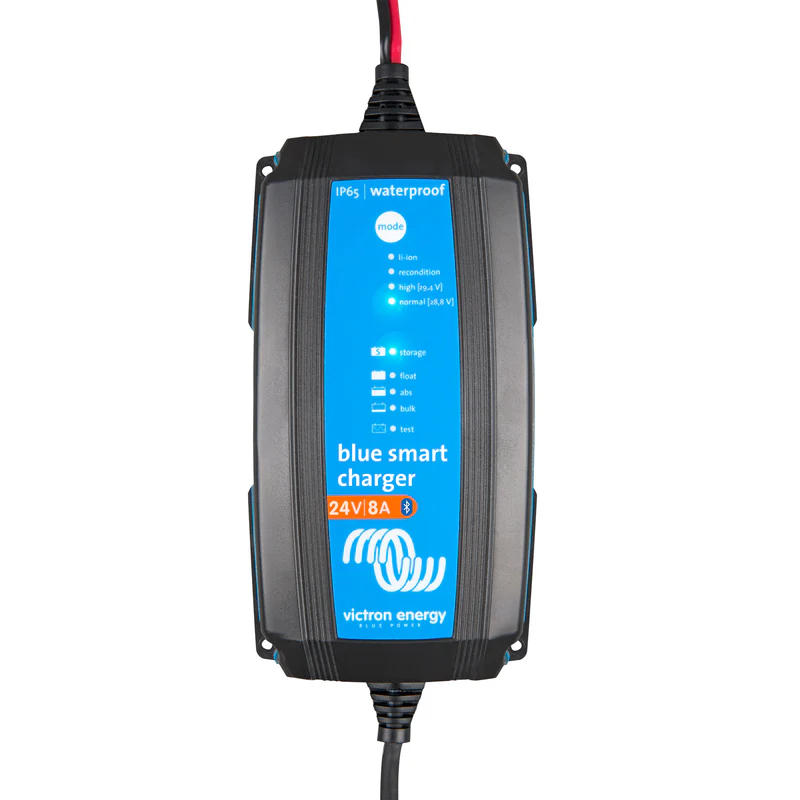

Victron Energy Blue Smart IP65 Charger 24V/8 120V NEMA 1-15P

Datasheets  Manual

The Victron Energy Blue Smart IP65 Charger 24/8 is an intelligent battery charger designed for 24V battery systems in RVs, camper vans, boats, vehicles, and workshops. With built-in Bluetooth and the VictronConnect app, you can monitor charging progress and configure charging settings from your smartphone. Its adaptive charging algorithm helps maintain battery health, while its IP65-rated enclosure provides protection against dust and water splashes.

FEATURES

• Smart charging: Seven-stage adaptive charging algorithm; four-stage charging for lithium-ion batteries.

• Bluetooth connectivity: Monitor and configure the charger through VictronConnect.

• Charging current: 8A in normal mode; selectable 3A low-current mode.

• Battery compatibility: Supports compatible lead-acid and lithium-ion batteries, including LiFePO₄.

• Selectable charge profiles: Normal, High, and Li-ion modes.

• Built-in protection: Reverse polarity, output short circuit, and overheating protection.

• IP65 protection: Dust-tight, splash-resistant, and ignition-protected enclosure.

• Connections included: Battery clamps and M8 ring terminals.

SPECIFICATIONS

• Battery system: 24V DC

• AC input: 100–130V AC, 45–65Hz (120V nominal)

• Absorption voltage: 28.8V Normal / 29.4V High / 28.4V Li-ion

• Float voltage: 27.6V Normal / 27.6V High

• Storage voltage: 26.4V Normal / 26.4V High / 27.0V Li-ion

• Maximum efficiency: 95%

• Standby power consumption: 0.5W

• Operating temperature: -40°C to +60°C; full rated output up to +30°C

• AC cable: 1.8m (6 ft) with US NEMA 1-15P plug

• Battery cable: 1.5m (5 ft), with interchangeable battery clamps and M8 ring terminals

• Dimensions (H × W × D): 60 × 105 × 190mm (2.4 × 4.1 × 7.5in)

• Weight: 0.9kg (2lb)

• Warranty: 5-year limited manufacturer warranty
