Victron Energy

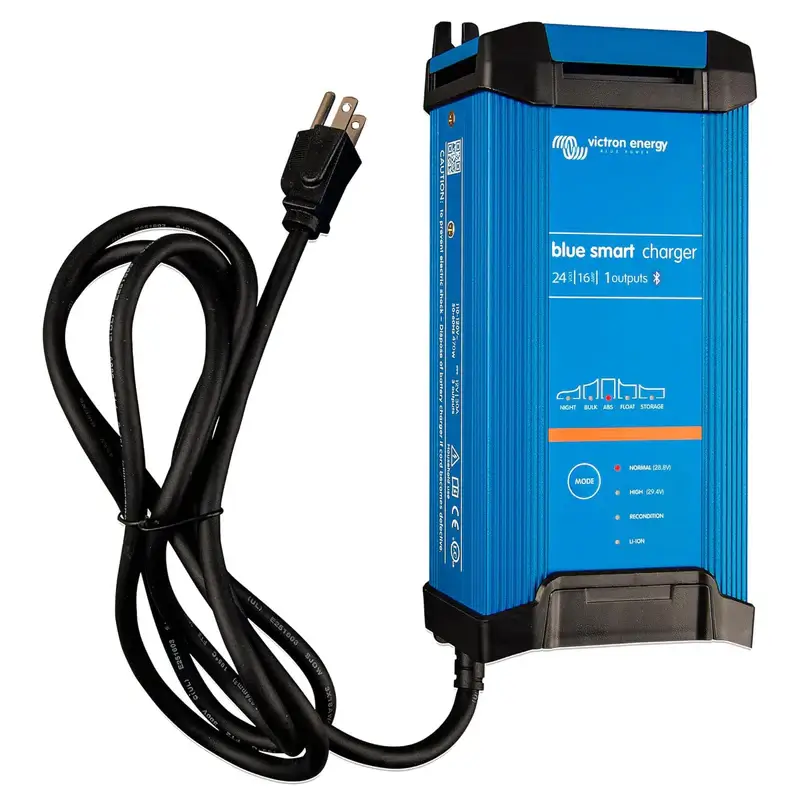

Victron Energy Blue Smart IP22 Charger 24V/16(1) 120V NEMA 5-15 - single output

SKU:

202​2323582

https://canadarv.com/web/image/product.template/5913/image_1920?unique=cb5ef4d

259.90 $ 259.9 CAD 259.90 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

Datasheets  Manual

The Victron Energy Blue Smart IP22 24V/16A is an intelligent battery charger designed for RVs, camper vans, boats, and other 24V electrical systems. Built-in Bluetooth allows convenient monitoring and configuration through the VictronConnect app, while its adaptive charging technology helps optimize battery performance and service life.

FEATURES

  • Bluetooth connectivity: Monitor charging data, adjust settings, and update firmware using the VictronConnect app.

  • Adaptive six-stage charging: Test, bulk, absorption, recondition, float, and storage modes optimize each charging cycle.

  • Lead-acid and lithium compatibility: Supports compatible AGM, gel, flooded lead-acid, and LiFePO₄ batteries.

  • Temperature compensation: Adjusts charging voltage according to ambient temperature for compatible battery types.

  • Storage mode: Reduces unnecessary battery stress during extended periods of continuous connection.

  • Night and Low modes: Reduce charging current to 8A for quieter operation.

  • VE.Smart Networking: Supports synchronized charging and compatible battery-monitoring devices.

  • Battery recovery: Can attempt to recover deeply discharged batteries, subject to battery condition.

  • Power supply mode: Can provide a regulated DC power supply when configured for this purpose.

  • Built-in protection: Protection against reverse polarity, output short circuits, and overheating.

  • Single output: One battery charging connection.

  • Easy installation: Includes a 120V AC power cord with a NEMA 5-15 plug and screw-terminal battery connections.

SPECIFICATIONS

  • AC input voltage: 100–130V AC

  • Input frequency: 45–65Hz

  • Battery voltage: 24V

  • Maximum charging current: 16A

  • Charging current in Night/Low mode: 8A

  • Maximum efficiency: 94%

  • Standby power consumption: 0.5W

  • Protection rating: IP22

  • AC connection: 120V NEMA 5-15 plug

  • Battery connections: Screw terminals, up to 16mm² (AWG 6)

  • Dimensions (H × W × D): 9.7 × 4.3 × 2.6 in (245 × 108 × 65 mm)

  • Weight: 2.9 lb (1.3 kg)

  • Warranty: 5-year limited warranty
