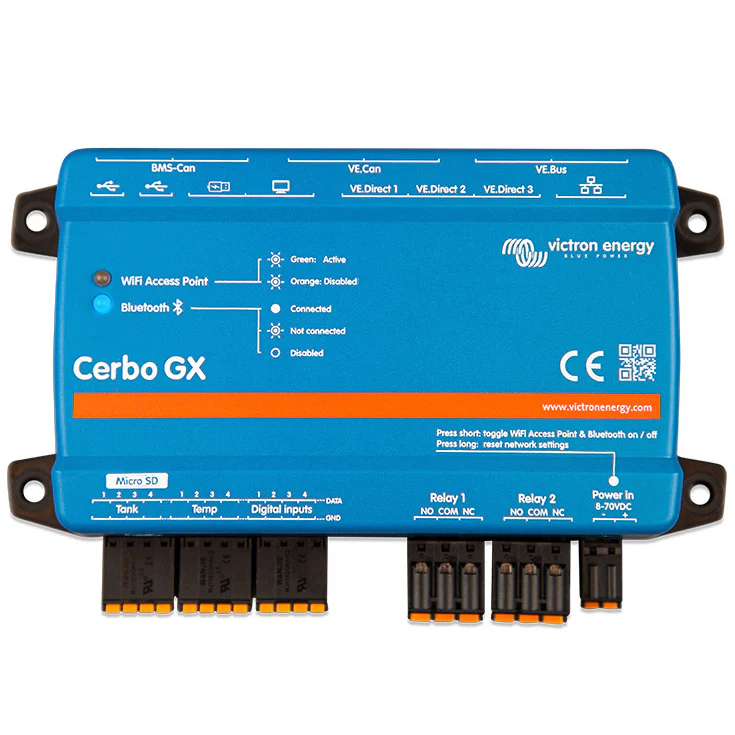

Victron Energy Cerbo GX

DATA SHEET  USER MANUAL

The Victron Energy Cerbo GX MK2 centralizes monitoring and control of compatible Victron power systems in RVs, boats and off-grid installations. Connect compatible inverters, solar charge controllers, battery monitors and other equipment to view system performance, configure settings and access remote monitoring through the Victron Remote Management (VRM) portal.

FEATURES

• Centralized monitoring: View connected equipment and system performance from one interface.

• Remote access: Monitor system data and receive notifications through the VRM portal, with an internet connection.

• Built-in connectivity: Wi-Fi, Bluetooth and 10/100 Mbps Ethernet.

• Communication ports: 3 VE.Direct ports, 2 parallel VE.Bus RJ45 sockets and 2 configurable VE.Can ports.

• MK2 CAN-bus design: One isolated VE.Can port and one non-isolated VE.Can port; both can be configured for supported CAN-bus profiles.

• Monitoring inputs: 4 resistive tank-level inputs, 4 temperature-sensor inputs and 4 digital inputs.

• Programmable relays: 2 relays for supported automation and control functions.

• Flexible installation: Wall mounting or 35mm DIN-rail mounting.

• Expandable display: Compatible with GX Touch displays, sold separately.

SPECIFICATIONS

• Supply voltage: 8–70V DC

• Power consumption: Approximately 2.8W at 12V without a GX Touch display

• VE.Direct: 3 isolated ports; supports up to 15 compatible VE.Direct devices, subject to system configuration

• VE.Bus: 2 parallel RJ45 sockets

• VE.Can: 2 configurable ports; one isolated and one non-isolated

• Ethernet: 10/100 Mbps RJ45

• Wireless connectivity: Wi-Fi 2.4GHz and Bluetooth

• Digital inputs: 4

• Tank-level inputs: 4, for resistive sensors

• Temperature inputs: 4

• Relays: 2; ratings depend on voltage and current

• Operating temperature: -20°C to +50°C

• Protection rating: IP20

• Dimensions: 154 × 78 × 48mm (6.1 × 3.1 × 1.9in)

• Mounting: Wall or 35mm DIN rail

IMPORTANT

The Cerbo GX MK2 is a monitoring and communications device, not an inverter, battery charger or solar charge controller. Compatible equipment and an internet connection are required for remote VRM access. The GX Touch display is sold separately.
