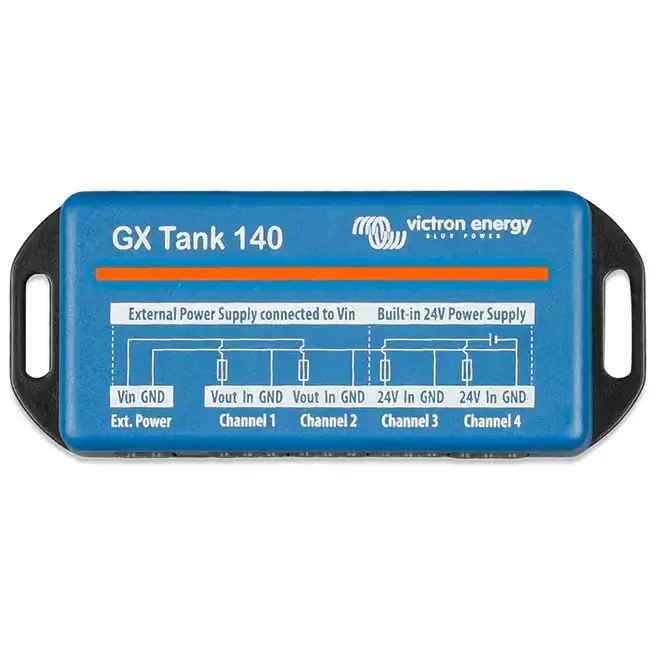

Victron Energy GX Tank 140

User manual

The Victron Energy GX Tank 140 connects up to four tank-level sensors to a compatible Victron GX monitoring device, such as the Cerbo GX. Monitor fuel, fresh water, wastewater, and other compatible tank levels locally or remotely through the VRM Portal.

FEATURES

• 4-channel monitoring: Connect up to four tank-level sensors.

• Sensor compatibility: Supports 4–20 mA current sensors and 0–10 V voltage sensors, including a combination of both.

• USB connection: Connects to and receives power from the GX device through USB.

• Simplified wiring: Two channels provide an integrated 24 V sensor supply; the other two require an external supply.

• Adjustable readings: Configure input limits and averaging from 1 to 60 seconds to help stabilize readings.

• Fault detection: Triggers an alarm when sensor readings fall outside the accepted range.

• Remote monitoring: View tank levels through the GX system and VRM Portal; compatible marine systems can transmit data over NMEA 2000.

SPECIFICATIONS

• Number of channels: 4

• Input types: 4–20 mA or 0–10 V

• Connection: USB

• USB cable length: 1.5 m (4.9 ft), permanently attached

• Compatibility: Victron GX monitoring devices

• Included: GX Tank 140 module, USB cable, one 2-way terminal block, and four 3-way terminal blocks

IMPORTANT: Tank-level sensors are not included. Use only compatible 4–20 mA or 0–10 V sensors within the unit’s permitted input range. Other sensor types or excessive input voltage may damage the device.
