Camper Van Expandable Elevator Bed

https://canadarv.com/web/image/product.template/6106/image_1920?unique=282eb10

WANT IT INSTALLED ? WE CAN DO THAT FOR YOU, CLICK HERE AND CONTACT US ! ! !

Specifications

  • Retracted dimensions: 63" x 55"
  • Expanded dimensions: 77" x 55"
  • Frame thickness: 80 mm (approx. 3.1") without mattress/slats
  • Frame material: Powder-coated aluminum
  • Mattress included: 2" bi-fold mattress
  • Lift system: Electric motor with manual backup release
  • Weight: 66 lbs (30 kg)
  • Control system: Wireless remote + optional wired switch
  • Extension mechanism: Manual slide-out with locking handles

2,899.00 $ 2899.0 CAD 2,899.00 $

Contact us for quote

  • Installation Services

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

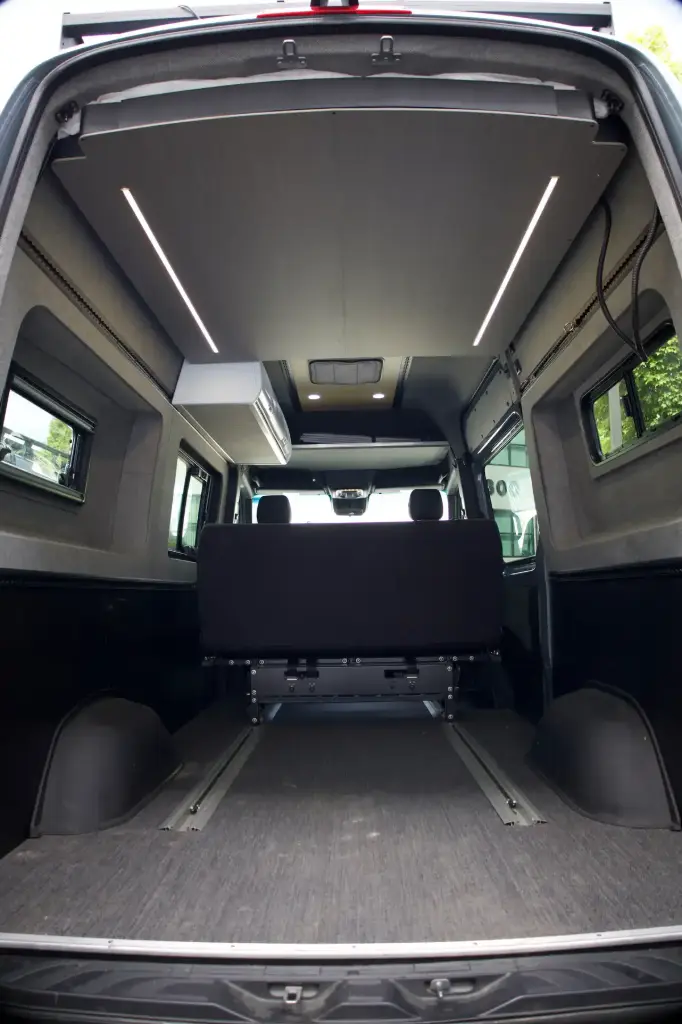

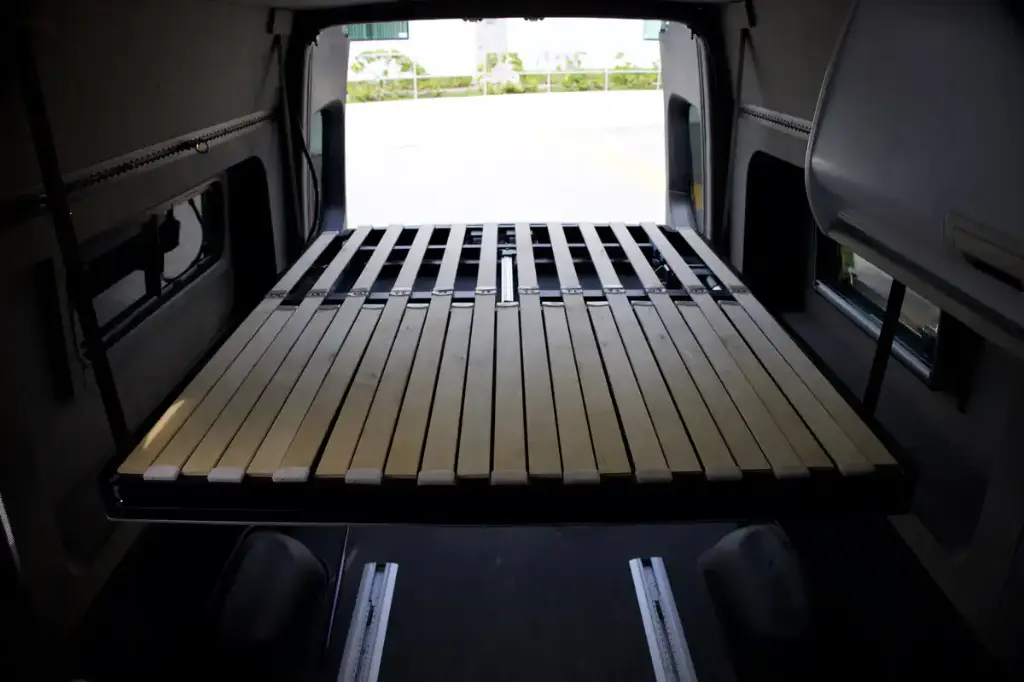

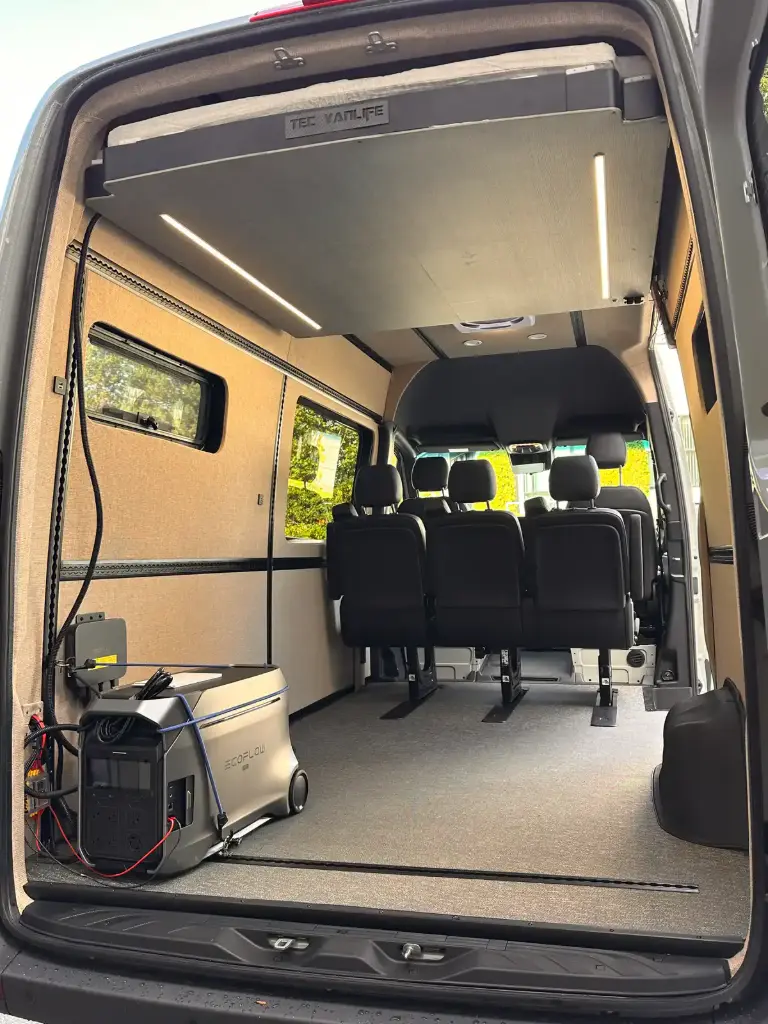

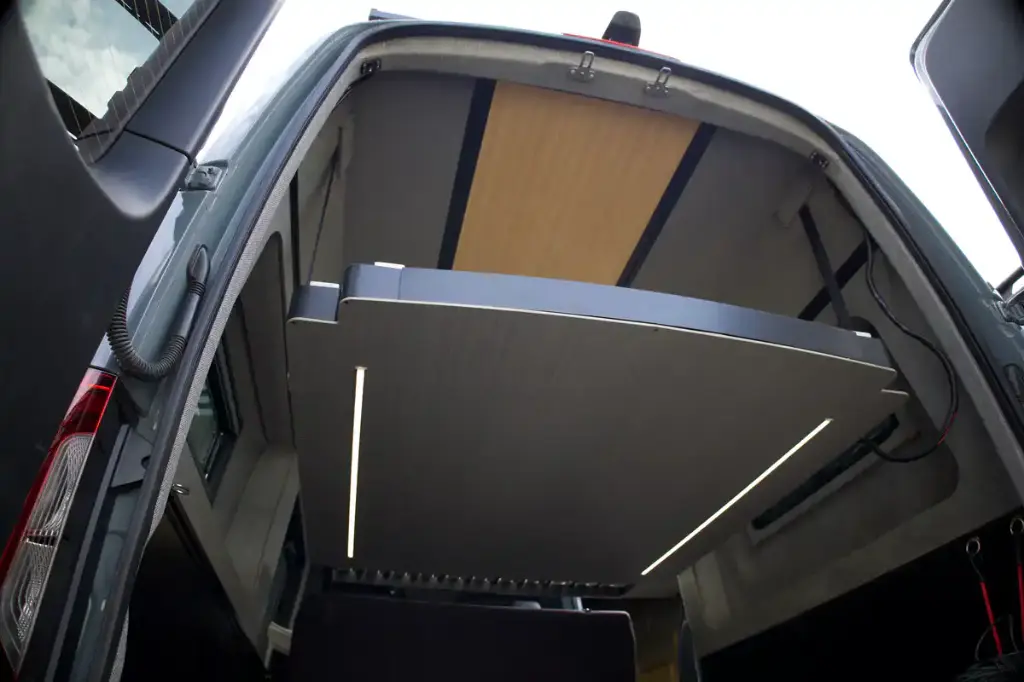

Expandable Elevator Bed for Camper Vans – Electric Lift Bed System

This expandable elevator bed system is designed to maximize sleeping comfort and interior space in camper van conversions. Featuring an ultra-low profile frame with electric height adjustment, it allows full north-south sleeping orientation while maintaining open living space during the day.

Features

  • Expandable sleeping platform converts from compact mode to full sleeping length
  • Electric elevator lift system for smooth height adjustment and storage access
  • Ultra-low profile frame preserves interior headroom when lowered
  • Wireless remote control included for bed and lighting operation
  • Optional hardwired switch for manual wall-mounted control
  • Manual extension section reduces overall weight and improves reliability
  • Integrated manual emergency release system for added safety
  • Guide rails included for improved platform stability and alignment
  • Eliminates the need for daily bed assembly or teardown

Compatibility / Installation

  • Compatible with:
    • Mercedes Sprinter (144 / 170)
    • Ford Transit
    • Ram ProMaster
    • Other custom van platforms
  • Designed for short and long wheelbase camper van conversions
  • Requires only positive (+) and negative (–) power connections for operation
  • Guide rails can be mounted on vertical cabinets, wardrobes, or wall panels
  • Rails may be omitted in certain layouts where cabinetry supports the bed platform
  • Emergency manual release accessible from top frame openings or underside motor access
  • Recommended for builders seeking a permanent bed solution with maximum floor space efficiency
Installation Services I would like it installed ( Give us a call or an Email ) or I will do it Myself
