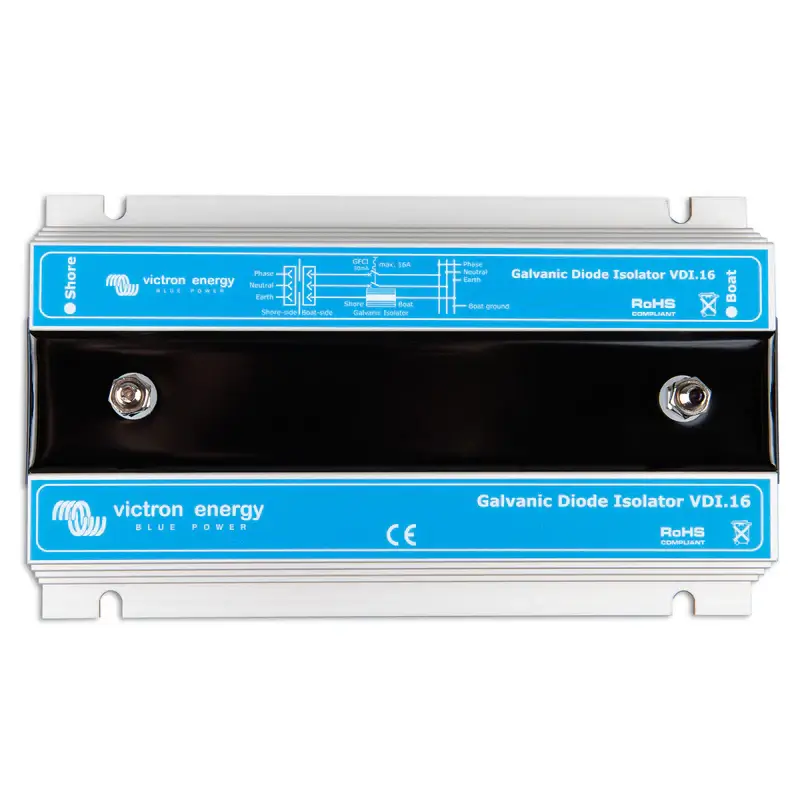

Victron Energy VDI-16 Galvanic Isolator

The Victron Energy VDI-16 Galvanic Isolator helps protect boats from electrolytic corrosion caused by low-voltage DC currents entering through the shore-power grounding connection. Its internal diode circuit blocks galvanic currents while preserving the protective earth path for electrical safety. The sealed, IP67-rated design is built for marine installations.

FEATURES

• Corrosion protection: Helps prevent galvanic corrosion of underwater metals, including the hull, propeller, and shaft.

• Diode technology: Blocks low-voltage DC currents below approximately 1.4V while allowing higher fault currents to pass.

• Marine-ready construction: Fully encapsulated, waterproof design.

• High peak-current capacity: Handles peak currents of 1,600A for 20ms.

• Secure connections: Two M6 connection studs.

• Durable housing: Anodized aluminium heat sink with IP67 protection.

SPECIFICATIONS

• Maximum current: 16A

• Peak current: 1,600A for 20ms

• Connections: 2 × M6 studs

• Housing / Heat sink: Anodized aluminium

• Protection rating: IP67

• Dimensions (H × W × D): 60 × 120 × 200mm (2.4 × 4.7 × 7.9in)

• Weight: 1kg (2.2lb)

• Warranty: 5-year limited manufacturer warranty

IMPORTANT – INSTALLATION

• Install in the vessel’s protective earth conductor, before any grounding connections to the vessel, so no connection bypasses the isolator.

• Mount vertically in a well-ventilated, heat-resistant area, leaving at least 10cm of clearance around the unit.

• Installation must comply with applicable electrical regulations and be performed by a qualified professional.
