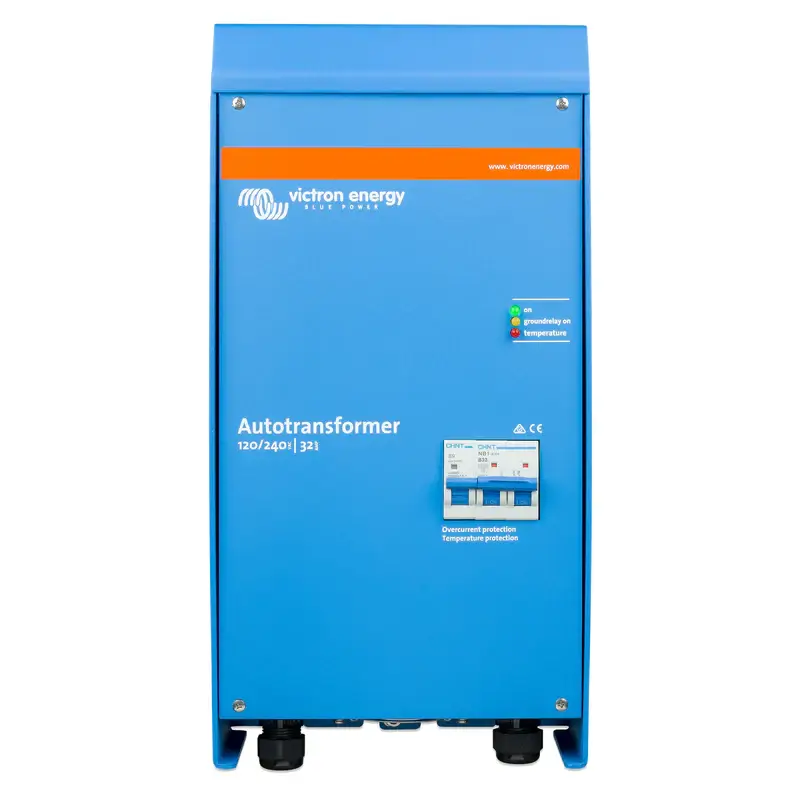

Victron Energy Autotransformer 120/240V-32A

SKU:

202​2323582

https://canadarv.com/web/image/product.template/5871/image_1920?unique=2f4b00d

630.17 $ 630.17 CAD 630.17 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

Technical Specifications  User manual

The Victron Energy 120/240V 32A Autotransformer is designed to step voltage up or down and balance uneven loads in split-phase electrical systems. Ideal for RVs, marine installations, and off-grid power systems, it helps redistribute unbalanced 120V loads between the two legs of a 120/240V supply, allowing available power to be used more efficiently. It features a toroidal transformer, built-in circuit breaker, thermal protection, and a grounding relay for compatible Victron inverter/chargers.

FEATURES

  • Voltage conversion: Steps 120V AC up to 240V AC or 240V AC down to 120V AC.

  • Split-phase load balancing: Helps redistribute uneven 120V loads between both legs of a 120/240V system.

  • 32A pass-through capacity: Supports up to 32A of 240V feed-through current.

  • Toroidal transformer: Designed for efficient power transfer.

  • Built-in protection: Two-pole circuit breaker and thermal protection; overheating disconnects the supply and requires a manual reset.

  • Grounding relay: Supports neutral-to-ground bonding with compatible MultiPlus or Quattro inverter/chargers when correctly configured.

  • Durable enclosure: Aluminium housing with IP21 protection.

  • Multiple applications: Suitable for RVs, marine electrical systems, generators, and off-grid installations.

SPECIFICATIONS

  • Input / Output Voltage: 120/240V AC

  • Maximum 240V feed-through current: 32A

  • Input circuit breaker: 32A, two-pole

  • Neutral current: 32A for 30 minutes (3,800VA); 28A continuous at 40°C

  • Frequency: 50/60Hz

  • Transformer type: Toroidal

  • Electrical connections: Screw terminals, up to 35mm² (AWG 2)

  • Protection rating: IP21

  • Safety standard: EN 60076

  • Dimensions (H × W × D): Approximately 425 × 214 × 110mm (16.7 × 8.4 × 4.3in)

  • Weight: 12.5kg (27.6lb)

  • Warranty: 5-year limited manufacturer warranty

IMPORTANT: This autotransformer does not provide galvanic isolation and does not convert between 50Hz and 60Hz. Correct wiring and grounding are essential; installation should be performed by a qualified professional.
