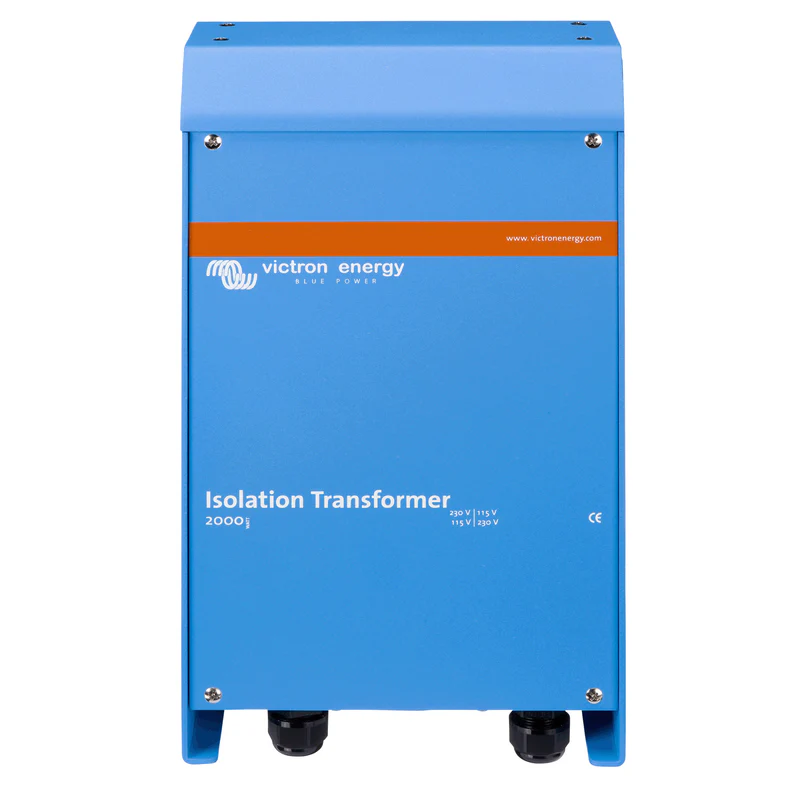

Victron Energy Isolation Transformer - 2000W 115/230V

Technical Specifications  User manual

The Victron Energy Isolation Transformer 2000W provides galvanic isolation between shore power and a boat’s onboard AC electrical system. Designed for marine applications, it helps prevent galvanic corrosion while improving electrical safety. Its low-noise toroidal construction, built-in soft start and voltage-conversion capability make it suitable for compatible marine power systems.

FEATURES

• Galvanic isolation: Electrically separates the vessel’s AC system from shore power to help prevent shore-originated galvanic corrosion.

• Voltage conversion: Supports 115V or 230V AC input and 120V or 240V AC output, depending on configuration.

• Soft start: Limits startup current to help prevent shore-power circuit breakers from tripping.

• Toroidal design: Provides quiet, efficient operation with a compact transformer design.

• Thermal protection: Temperature-controlled fan cooling and overtemperature shutdown help protect the unit.

• Marine safety: Allows a properly configured onboard grounding system while maintaining electrical separation from shore ground.

SPECIFICATIONS

• Rated power: 2000W

• AC input voltage: 115V or 230V

• AC output voltage: 120V or 240V, depending on configuration

• Output current rating: 17A at 115V; 8.5A at 230V

• Frequency: 50/60Hz

• Transformer ratio: 1:1.05

• Soft start: Yes

• Operating temperature: -20°C to +40°C

• Maximum humidity: 95%, non-condensing

• Cooling: Temperature-controlled fan

• Enclosure: Aluminium, blue RAL 5012

• Protection rating: IP21

• Safety standard: EN 60076

• Dimensions (H × W × D): Approximately 375 × 214 × 135mm

• Weight: 12.7kg

• Warranty: 5-year limited warranty

IMPORTANT: This transformer must be configured and installed according to the manufacturer’s instructions and applicable marine electrical safety requirements. It does not convert 50Hz power to 60Hz or vice versa.
