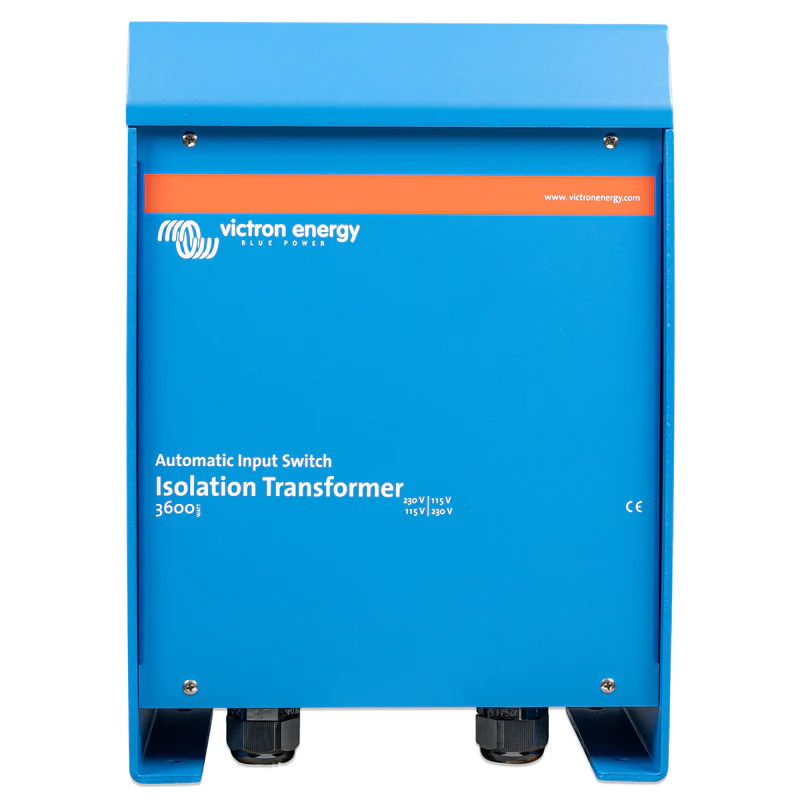

Victron Energy Isolation Transformer - 3600W 115/230V
SKU:
2022323582
Technical Specifications User manual
The Victron Energy Isolation Transformer 3600W provides galvanic isolation between shore power and a vessel’s onboard AC electrical system. Designed for marine applications, it helps prevent galvanic corrosion while maintaining a properly grounded and electrically safe installation. Its low-noise toroidal design and built-in soft-start circuitry make it suitable for boats and other compatible marine power systems.
FEATURES
Galvanic isolation: Electrically separates the vessel’s AC system from shore power to help prevent galvanic corrosion.
Voltage conversion: Supports compatible 115V and 230V AC input/output configurations, with a 1:1.05 transformer ratio.
Soft start: Limits startup current to help prevent shore-power circuit breakers from tripping.
Toroidal design: Provides quiet operation and efficient power transfer.
Thermal protection: Temperature-controlled fan cooling and overtemperature shutdown help protect the transformer.
Marine electrical safety: Supports a properly configured onboard grounding system while maintaining electrical separation from shore ground.
SPECIFICATIONS
Rated power: 3600W
AC input voltage: 115V or 230V
AC output voltage: 120V or 240V, depending on configuration
Rated output current: 32A at 115V; 16A at 230V
Frequency: 50/60Hz
Transformer ratio: 1:1.05
Soft start: Yes
Cooling: Temperature-controlled fan
Operating temperature: -20°C to +40°C
Maximum humidity: 95%, non-condensing
Enclosure: Aluminium, blue RAL 5012
Protection rating: IP21
Safety standard: EN 60076
Dimensions (H × W × D): Approximately 362 × 258 × 221mm
Weight: Approximately 21.3kg
Warranty: 5-year limited warranty
IMPORTANT: Verify the input and output voltage configuration before operation. This transformer does not convert 50Hz power to 60Hz or vice versa. Installation must follow the manufacturer’s instructions and applicable marine electrical safety requirements.
