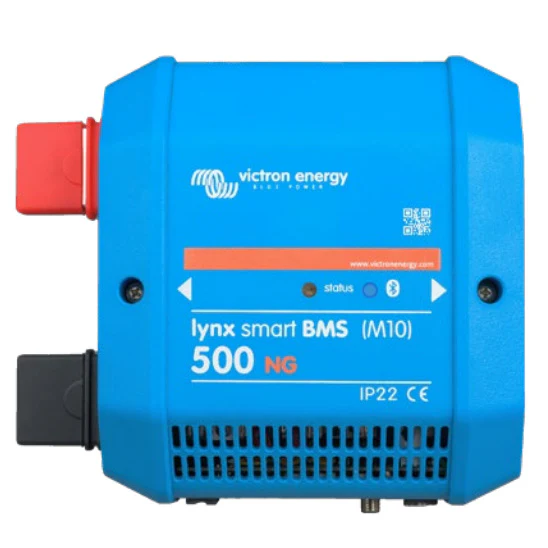

Lynx Smart BMS 500 NG de Victron Energy

The Victron Energy Lynx Smart BMS 500 NG is an advanced battery management system designed specifically for Victron Lithium NG batteries. It combines battery monitoring, protection, a built-in 500A safety contactor and pre-charge circuitry in a compact module that integrates with the Lynx Distribution system. Bluetooth connectivity and compatibility with Victron GX devices enable local and remote system monitoring.

FEATURES

• 500A continuous contactor: Provides a remotely controlled main system disconnect and secondary battery protection.

• Pre-charge circuit: Helps prevent high inrush currents when connecting capacitive loads, such as inverters.

• Integrated battery monitor: Tracks state of charge, voltage, current, cell data and historical information.

• Bluetooth connectivity: Configure and monitor the system using the VictronConnect app.

• GX and VRM integration: View battery data remotely through compatible GX devices and the VRM portal.

• Charge and discharge control: ATC/ATD contacts and DVCC integration help control compatible chargers and loads.

• Programmable relay: Can be configured for alarms or supported alternator-control functions.

• Auxiliary power output: Supplies up to 1.1A at system voltage for compatible equipment after BMS shutdown.

• Lynx Distributor integration: Monitors fuses in up to four connected Lynx Distributors.

• Parallel redundancy: Supports installations with up to five compatible Lynx Smart BMS units.

SPECIFICATIONS

• Contactor rating: 500A continuous; 600A for up to 5 minutes

• Supported system voltages: 12V, 24V and 48V

• Supply voltage range: 9–60V DC

• Maximum input voltage: 75V DC

• Battery compatibility: Victron Lithium NG batteries only

• AUX output: 1.1A continuous, protected by a resettable fuse

• Allow-to-charge output: 0.5A maximum at 60V DC

• Allow-to-discharge output: 0.5A maximum at 60V DC

• Programmable relay: 2A maximum at 60V DC

• Communication: Bluetooth and VE.Can (RJ45); NMEA 2000 integration with the appropriate cable

• Busbar connections: M10; tightening torque 33Nm

• Power consumption: Approximately 2.6W in ON mode at 12V; 0.6W in standby

• Operating temperature: -40°C to +60°C

• Protection rating: IP22

• Dimensions: 190 × 180 × 80mm (7.5 × 7.1 × 3.1in)

• Weight: 1.9kg (4.2lb)

• Warranty: 5-year limited warranty

IMPORTANT

This BMS is designed specifically for Victron Lithium NG batteries and is not interchangeable with the BMS intended for the older Victron Lithium Battery Smart range. Reverse-polarity protection is not provided. Follow Victron's installation instructions and use compatible system components.
