Victron Energy Lynx Shunt VE.Can M8
Intelligent 1000A Battery Monitor with Integrated Busbar & Fuse Location
Part Number: LYN040102100

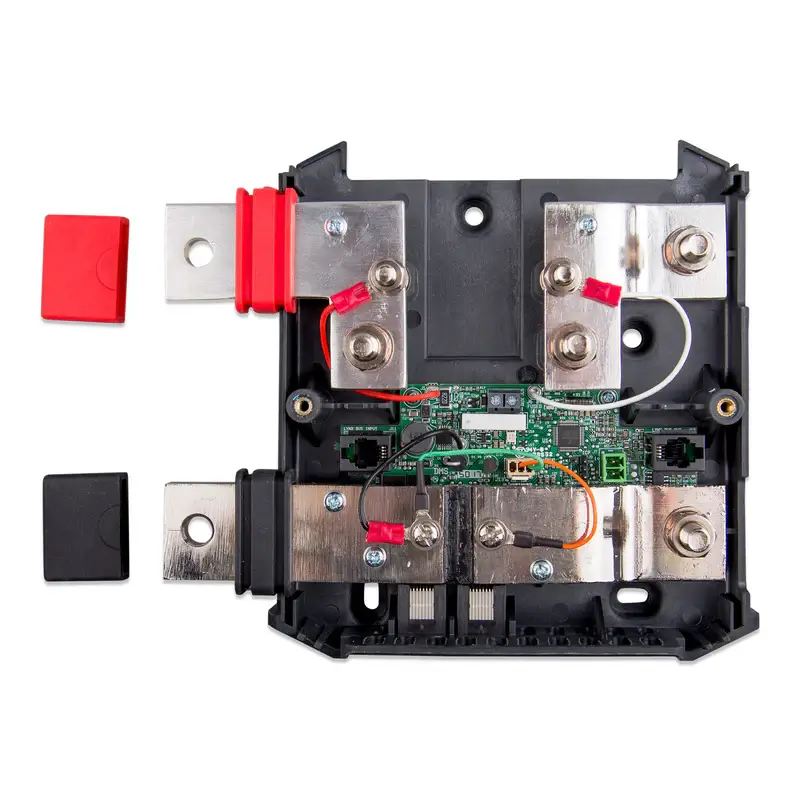

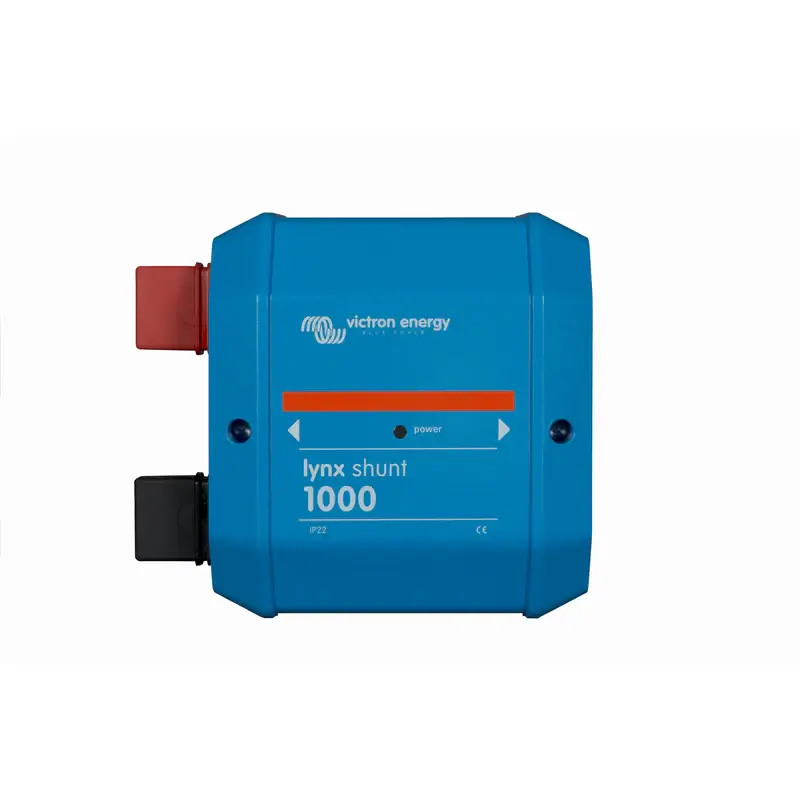

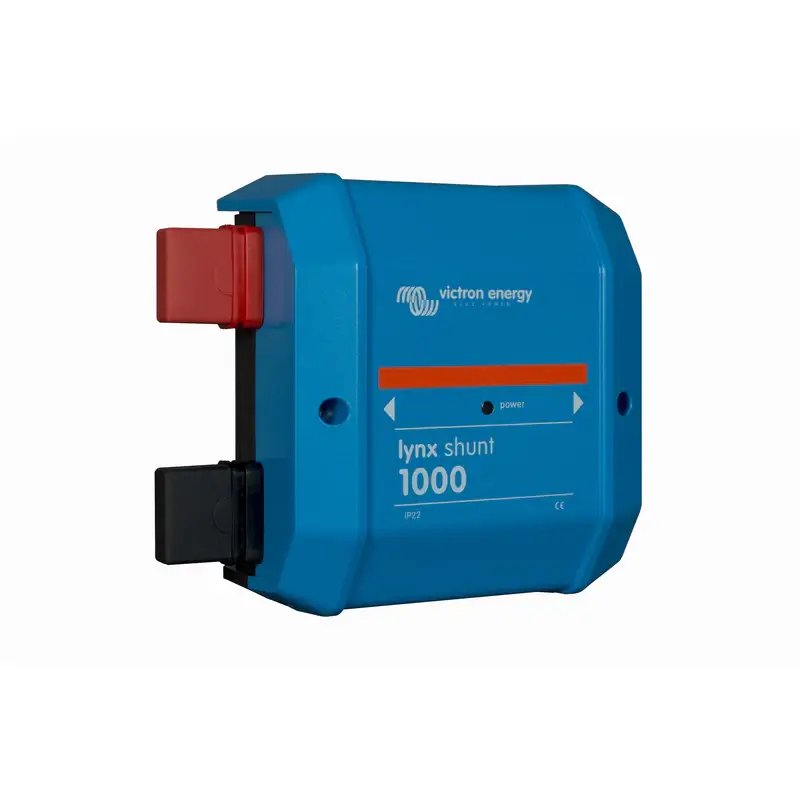

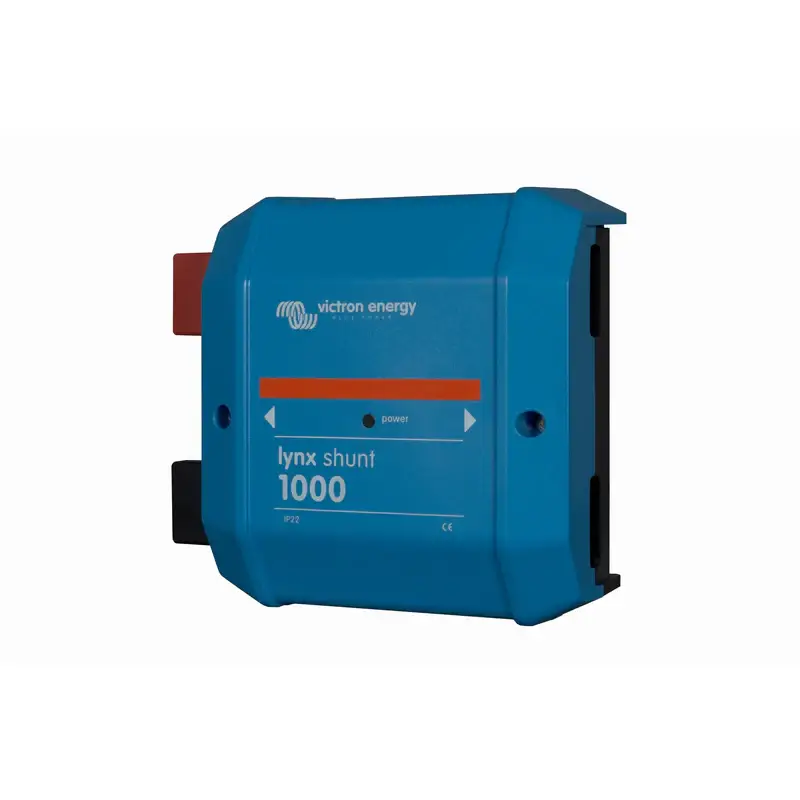

The Victron Lynx Shunt VE.Can M8 is a smart 1000A shunt that combines battery monitoring and system protection in one compact unit. Designed as part of the modular Victron Lynx Distribution System, it includes a built-in battery monitor, a fuse holder (fuse not included), and both positive and negative busbars.
Use with a GX device (such as the Cerbo GX) to monitor detailed battery parameters including voltage, current, and state of charge via the VE.Can connection.
Key Features:
- Accurate Battery Monitoring: Integrated shunt measures current and tracks battery state of charge.
- VE.Can Communication: Connects to GX devices for live monitoring and historical data via VictronConnect or VRM Portal.
- Integrated Fuse Holder: Designed for use with CNN fuses (fuse sold separately).
- LED Status Indicator: Built-in power LED shows device and fuse status.
- Modular Design: Compatible with other Lynx distribution modules for scalable power systems.
- Included Accessories: Ships with two VE.Can RJ45 terminators for easy system integration.
Specifications:
- Rated Current: 1000A
- Connection Type: VE.Can
- Compatible Fuse: CNN (M8 version)
- Mounting: Fits seamlessly into Lynx system enclosures
- Dimensions: Matches other Lynx modules for clean installation
Applications:
- Off-grid solar systems
- RVs and campers
- Marine electrical systems
- Commercial DC installations
Note: Fuse is not included and must be selected based on your system’s current requirements. For other fuse types or the M10 variant (compatible with CNN, ANL, and MEGA fuses), see Victron’s full Lynx Shunt VE.Can range.
