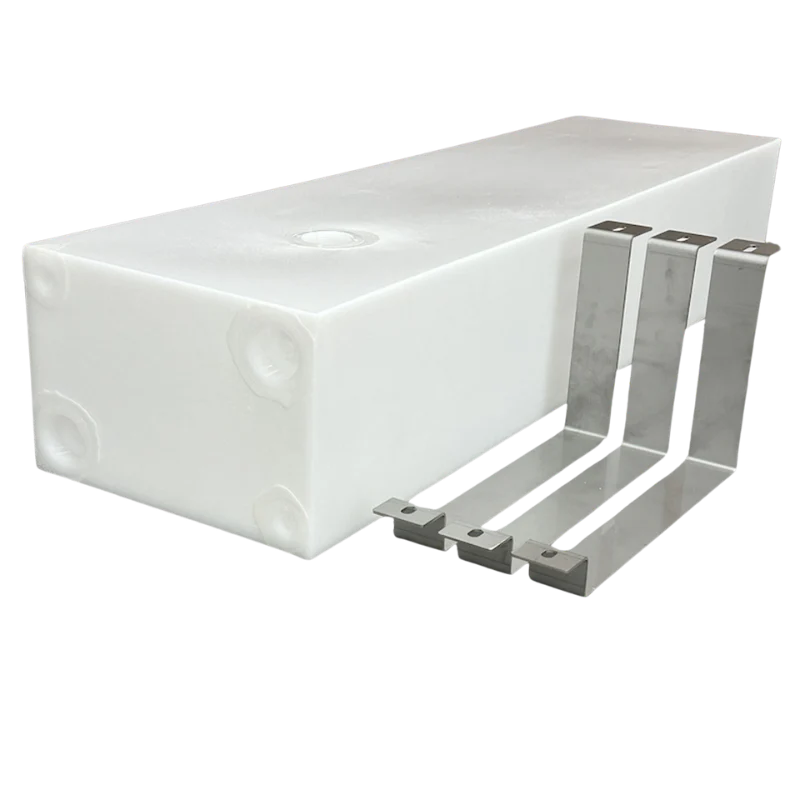

NW Conversions 20 Gallon Driver Side Transit Undercarriage Water Tank (TR-UC-20)

• Fits Transit Van undercarriage Driver side next to fuel tank.
• **** Does NOT Fit Transit 130 Wheel Base  ****
• *** May NOT fit with Transit van with rear passenger heater or AC unit due to heater lines in the bay.  The TR-UC-16 tank may be a better fit.
• Tank can be used for fresh or grey water
• 20 Gallon Tank
• IAPMO TS-4 Certified
• Tank is designed not to be pressurised (I.e.  Needs to be vented).
• Overall dimensions: 45″L x 8.5″H x 12.75″W.
• BPA Free, food grade polyethylene plastic.
• Tank has (2) 1.5″ NPT port and (2) 1/2″ NPT ports on end and (1) 1.5" NPT port on top.
• *(3) Stainless steel Brackets, Stainless steel 3/8" hardware, and rivnuts included.
• Requires drilling of (3) new holes (17/32") for 3/8" rivnuts near pinch weld for one side of the strap and the other side of the strap will use the same bolt and location as the fuel tank straps.
• This will require a rivnut tool.
• Made in the USA

The 20 Gallon Transit Van Undercarriage Water Tank is designed to fit under the van on the Driver side next to the fuel tank.  (3) Stainless steel laser cut straps, 3/8" hardware and 3/8" rivnuts are included (Rivnut tool needed for installation not included).  Tank fits Ford Transit van. It may fit other makes and models as well.

Weight: 23lbs

Dimensions: 48x15x10in

Tank Compatibility:
