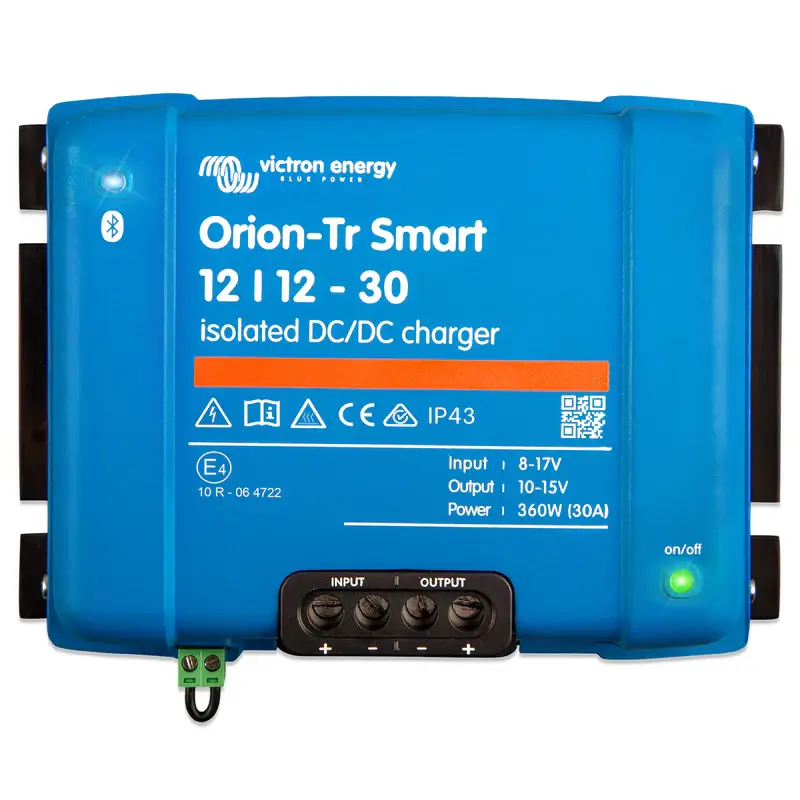

Victron Energy – Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC Charger

The Victron Energy Orion-Tr Smart 12/12-30A is an isolated DC-DC battery charger designed to charge a 12V auxiliary battery from a 12V alternator or other DC power source. With built-in Bluetooth, configurable charging settings and an adaptive three-stage charging algorithm, it supports reliable battery charging in RVs, camper vans, boats and other mobile electrical systems.

FEATURES

• 30A charging current: Delivers up to 360W of continuous output power at 40°C.

• Built-in Bluetooth: Monitor and configure the charger using the VictronConnect app.

• Adaptive three-stage charging: Bulk, absorption and float charging for lead-acid batteries; configurable charging settings for lithium batteries.

• Galvanic isolation: 200V DC isolation between input, output and case.

• Smart alternator compatibility: Engine-running detection helps prevent starter-battery discharge when the engine is off.

• Flexible configuration: Adjustable output voltage, remote on/off connection and parallel operation with additional units.

• Protection: Short-circuit protection and temperature-based output reduction.

• IP43 protection: Applies when installed with the screw terminals facing downward.

SPECIFICATIONS

• Input voltage range: 10–17V DC

• Nominal output voltage: 12.2V DC

• Adjustable output voltage: 10–15V DC

• Continuous output current: 30A

• Maximum continuous output power: 430W at 25°C; 360W at 40°C

• Efficiency: 87%

• Operating temperature: -20°C to +55°C; output derates above 40°C

• Connections: Screw terminals; maximum cable cross-section of 16mm² (AWG 6)

• Dimensions (H × W × D): 130 × 186 × 80mm

• Weight: 1.8kg

• Warranty: 5-year limited warranty
