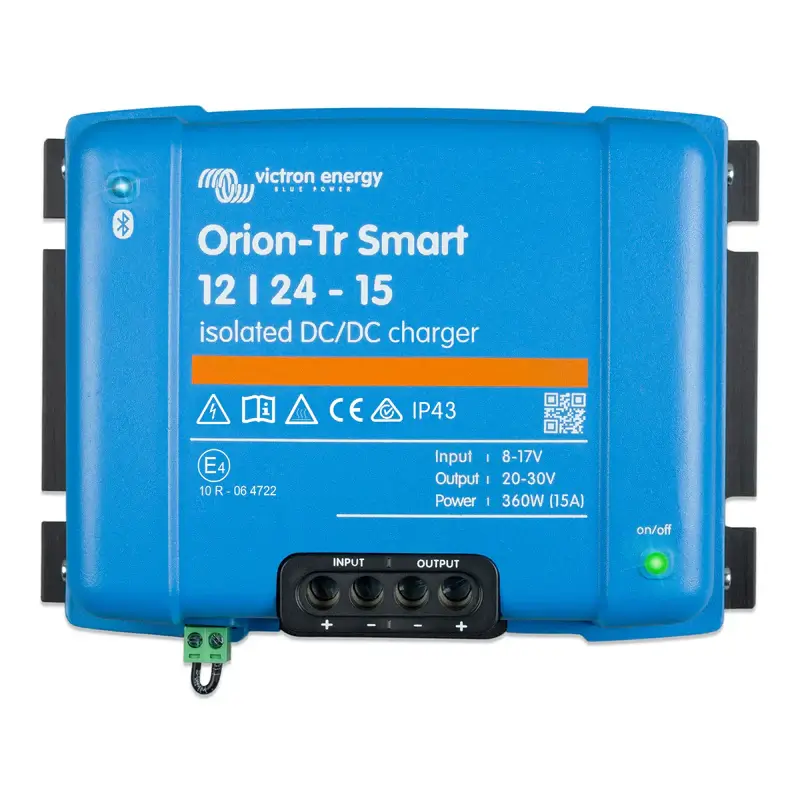

Victron Energy Orion-Tr Smart 12/24-15A (360W) Isolated DC-DC Charger

Technical Specifications  User manual

The Victron Energy Orion-Tr Smart 12/24-15A is an isolated DC-DC battery charger designed to charge a 24V auxiliary battery from a 12V DC source, such as a vehicle alternator. With built-in Bluetooth, configurable charging profiles and an adaptive three-stage charging algorithm, it provides controlled charging for RVs, camper vans, boats and other mobile electrical systems.

FEATURES

• 15A charging current: Delivers up to 360W of continuous output power at 40°C.

• Built-in Bluetooth: Monitor, configure and update the charger using the VictronConnect app.

• Adaptive three-stage charging: Bulk, absorption and float charging for lead-acid batteries, with configurable settings for lithium batteries.

• Galvanic isolation: 200V DC isolation between input, output and case.

• Smart alternator compatibility: Engine-running detection helps prevent starter-battery discharge when the engine is off.

• Flexible configuration: Adjustable output voltage, remote on/off connection and parallel operation with additional units.

• Dual operating modes: Can operate as a battery charger or a regulated DC power supply.

• Protection: Overload, short-circuit and overtemperature protection, with output derating at elevated temperatures.

• IP43 protection: Applies when installed with the screw terminals facing downward.

SPECIFICATIONS

• Input voltage range: 8–17V DC

• Undervoltage shutdown / restart: 7V / 7.5V

• Nominal output voltage: 24.2V DC

• Adjustable output voltage: 20–30V DC

• Continuous output current: 15A at 40°C

• Maximum output current: 25A for 10 seconds at nominal output voltage minus 20%

• Continuous output power: 430W at 25°C; 360W at 40°C

• Efficiency: 88%

• No-load input current: Less than 100mA

• Standby current: Less than 1mA

• Galvanic isolation: 200V DC between input, output and case

• Operating temperature: -20°C to +55°C; output derates by 3% per °C above 40°C

• Maximum humidity: 95%, non-condensing

• Connections: Screw terminals; maximum cable cross-section of 16mm² (AWG 6)

• Dimensions (H × W × D): 130 × 186 × 80mm

• Weight: 1.8kg

• Warranty: 5-year limited warranty
