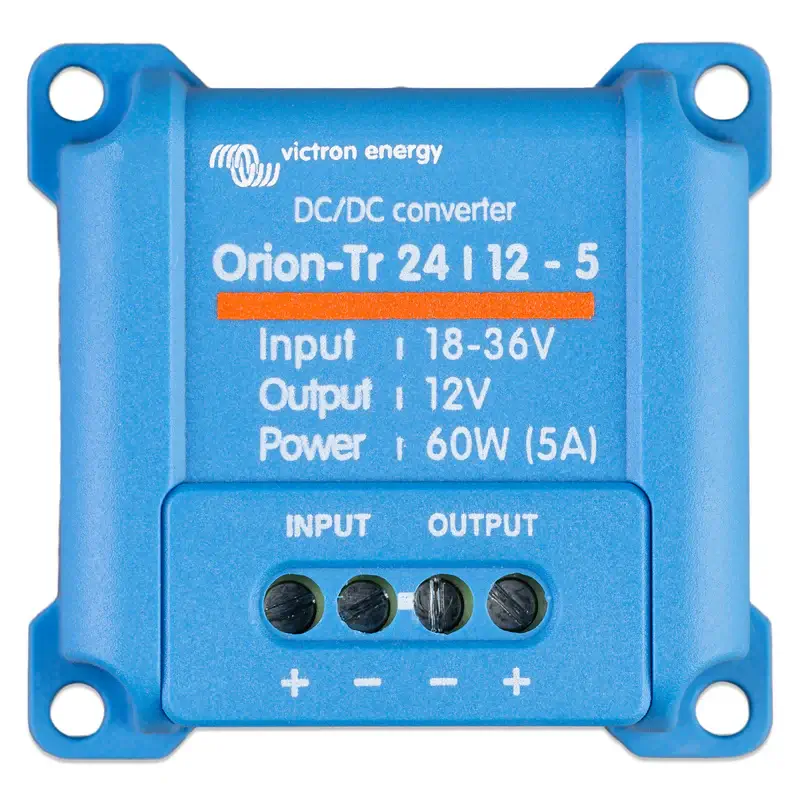

Victron Energy Orion-Tr 24/12-5 (60W) Non-Isolated DC-DC Converter

Technical Specifications  User manual

The Victron Energy Orion-Tr 24/12-5 converts 24V DC input power into a stable 12.7V DC output for compatible 12V equipment. Its compact, non-isolated design and high conversion efficiency make it suitable for RVs, camper vans, boats, and other applications requiring reliable DC voltage conversion.

FEATURES

• High efficiency: Synchronous rectification delivers over 95% efficiency at full load.

• Stable DC output: Supplies 12.7V DC at a continuous current of up to 5A.

• Non-isolated design: Input and output share a common ground.

• Expandable capacity: Multiple units can be connected in parallel to increase output current.

• Built-in protection: Short-circuit protection helps protect the converter and connected equipment.

• IP43 protection: Applies when installed with the screw terminals facing downward.

• Simple installation: Screw-terminal connections require no special tools.

SPECIFICATIONS

• Input voltage range: 18–35V DC

• Nominal input voltage: 24V DC

• Output voltage: 12.7V DC

• Continuous output current: 5A

• Maximum output current: 7A

• Rated output power: 60W

• Maximum efficiency: 95%

• Operating temperature: -20°C to +55°C; output derates above 40°C

• Protection rating: IP43 when correctly installed

• Connections: Screw terminals

• Maximum cable cross-section: 3.3mm² (AWG 12)

• Dimensions (H × W × D): 2.1 × 2.0 × 1.1 in (53 × 51 × 27 mm)

• Weight: 0.2 lb (0.09 kg)

• Warranty: 5-year limited warranty
