Victron Energy Orion-Tr 24/12-10 (120W) DC-DC Converter

Technical Datasheet  User Manual

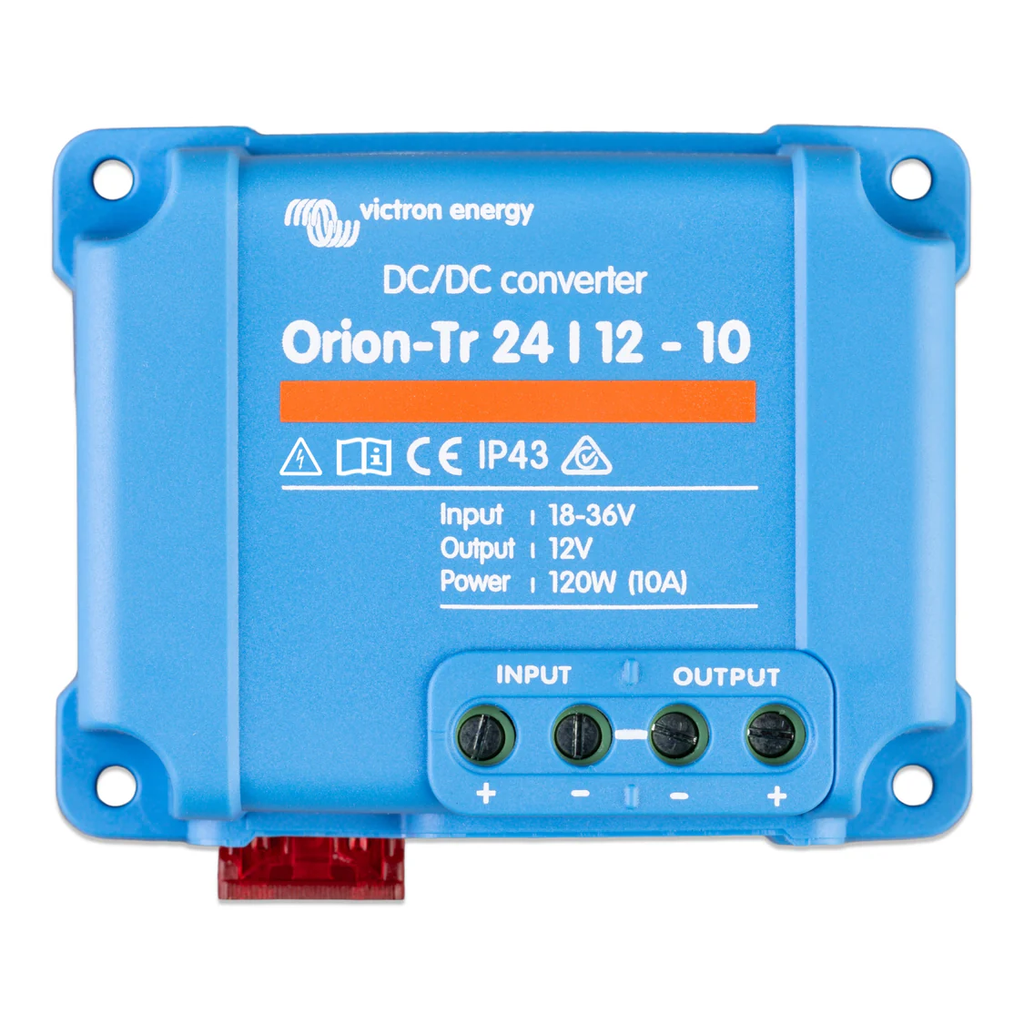

Victron Energy Orion-Tr 24/12-10 (120W) DC-DC Converter – Non-Isolated

The Victron Orion-Tr 24/12-10 DC-DC Converter is a compact and high-efficiency solution for converting 24V DC input into a reliable 12V DC output, delivering up to 10A (120W) of power. Ideal for automotive, marine, and off-grid applications, it ensures safe and stable operation for sensitive 12V electronics.

Key Features:

• High Efficiency: Thanks to synchronous rectification, the converter achieves efficiency levels exceeding 95%, reducing energy loss and heat generation.
• Rugged Design: Rated IP43 when mounted with terminals facing downward, providing reliable protection against moisture and dust.
• User-Friendly Installation: Equipped with screw terminals—no special tools required.

Applications:

• Vehicles, boats, and off-grid systems where a stable 12V output is needed from a 24V source.
• Powering 12V appliances in 24V battery systems.

Technical Specifications:

• Input Voltage: 24V DC
• Output Voltage: 12V DC
• Output Current: 10A
• Power Output: 120W
• Protection: IP43 (with correct mounting)
• Cooling: Passive (no fan)
