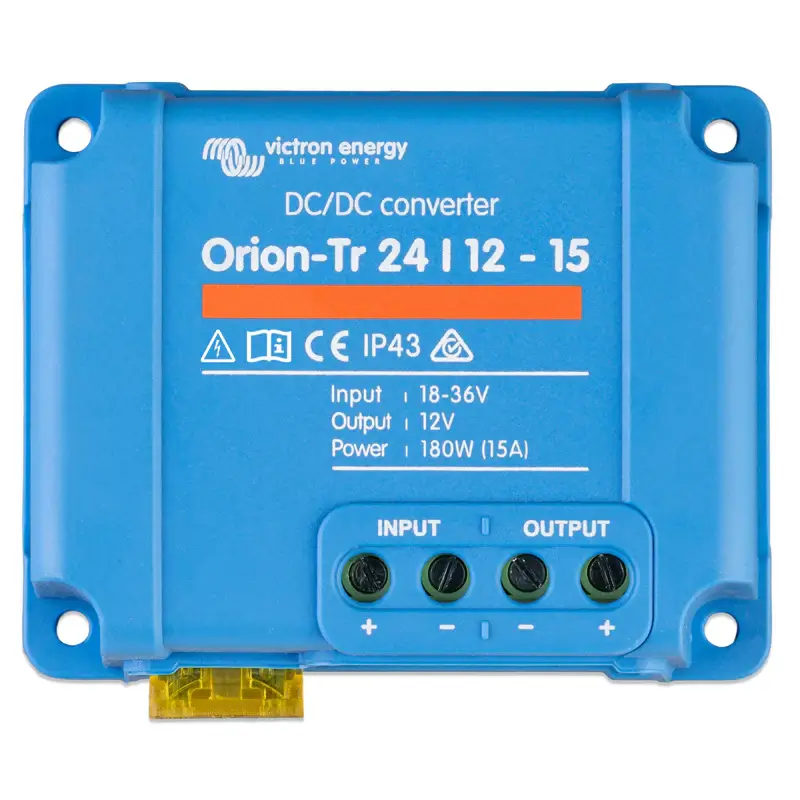

Victron Energy Orion-Tr 24/12-15 (180W) Non-Isolated DC-DC Converter

Technical Specifications  User manual

The Victron Energy Orion-Tr 24/12-15 converts 24V DC power into a stable 12V DC supply, allowing 12V equipment to operate from a 24V electrical system. With up to 15A of continuous output current and high conversion efficiency, it is a practical solution for RVs, camper vans, marine applications, and off-grid installations.

FEATURES

• High efficiency: Synchronous rectification delivers over 95% efficiency at full load.

• Non-isolated design: Input and output share a common ground.

• IP43 protection: Rated IP43 when installed with the screw terminals facing downward.

• Simple installation: Screw-terminal connections require no special tools.

• Expandable output: Multiple units can be connected in parallel to increase output current.

SPECIFICATIONS

• Input voltage range: 18–35V DC

• Output voltage: 12.5V DC

• Continuous output current: 15A

• Maximum output current: 20A

• Rated output power: 180W

• Maximum efficiency: 97%

• Operating temperature: -20°C to +55°C

• Dimensions (H × W × D): 2.87 × 3.70 × 1.77 in (73 × 94 × 45 mm)

• Weight: 0.55 lb (0.25 kg)
