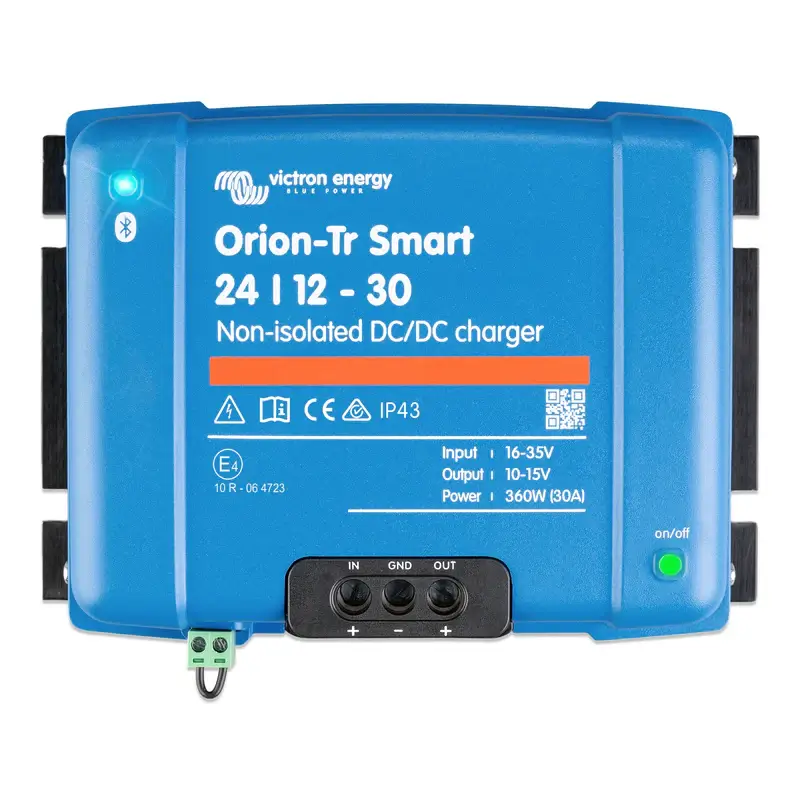

Victron Energy – Orion-Tr Smart 24/12-30A (360W) Non-Isolated DC-DC Charger

Technical Specifications  User manual

The Victron Energy Orion-Tr Smart 24/12-30A is a professional DC-DC battery charger that converts 24V DC input power into a controlled 12V DC output. Designed for dual-battery systems in RVs, camper vans, boats, and other off-grid applications, it features built-in Bluetooth monitoring, programmable charging, and an adaptive three-stage charging algorithm for lead-acid and lithium batteries.

FEATURES

• Bluetooth connectivity: Monitor and configure the charger, view warnings, and update firmware using the VictronConnect app.

• Adaptive three-stage charging: Bulk, absorption, and float charging adjusts to battery requirements.

• Smart alternator compatibility: Engine-running detection supports charging systems using modern smart alternators.

• Programmable operation: Configure the battery charging algorithm or select a fixed output voltage.

• Remote on/off control: Compatible with an external switch or relay.

• Non-isolated design: Input and output share a common ground.

• Expandable capacity: Multiple units can be connected in parallel to increase output current.

• Built-in protection: Short-circuit protection and output-current reduction at high temperatures.

• IP43 protection: Applies when installed with the screw terminals facing downward.

• Easy installation: Screw terminals require no special tools; the input fuse is not replaceable.

SPECIFICATIONS

• Input voltage range: 16–35V DC

• Nominal output voltage: 12.2V DC

• Adjustable output voltage: 10–15V DC

• Continuous output current: 30A

• Continuous output power: 430W at 25°C / 360W at 40°C

• Efficiency: 88%

• Operating temperature: -4°F to 131°F (-20°C to +55°C); output derates above 104°F (40°C)

• DC connections: Screw terminals

• Maximum cable cross-section: 16mm² (AWG 6)

• Dimensions (H × W × D): 5.1 × 7.3 × 2.8 in (130 × 186 × 70 mm)

• Weight: Approximately 2.9 lb (1.3 kg)
