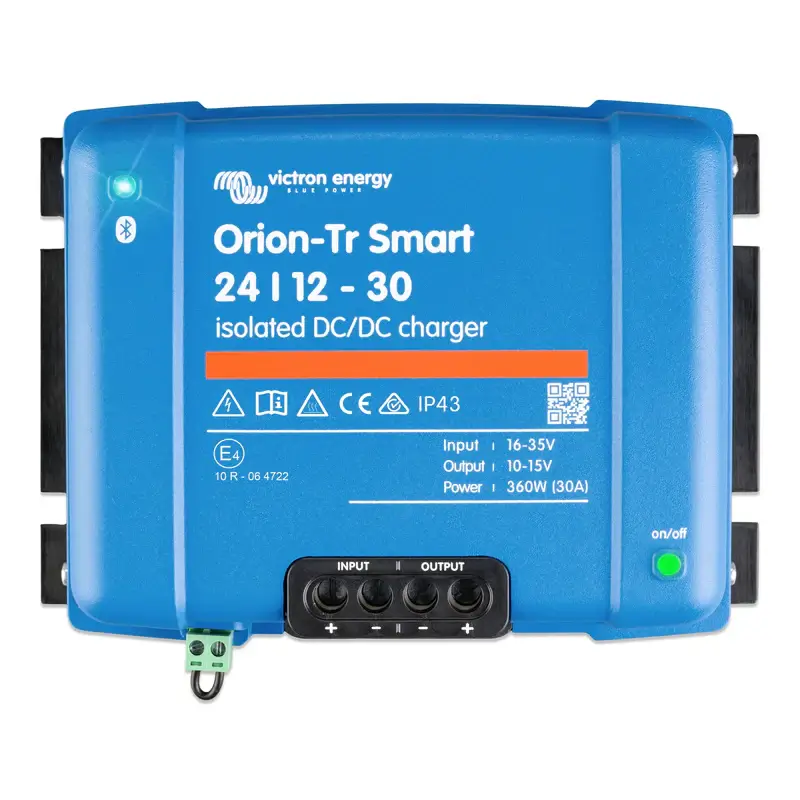

Victron Energy Orion-Tr Smart 24/12-30A (360W) Isolated DC-DC Charger

The Victron Energy Orion-Tr 24/12-30A converts 24V DC input power into a stable, adjustable 12V DC output. Its galvanically isolated design separates the input and output circuits, making it suitable for RVs, camper vans, boats, and off-grid electrical systems that require reliable voltage conversion.

IMPORTANT: This converter is designed for voltage conversion and is not intended to charge batteries. For battery charging, consider a compatible Orion-Tr Smart DC-DC charger.

FEATURES

• Galvanic isolation: Provides electrical separation between the input and output circuits, rated at 200V DC.

• Adjustable output voltage: Configure the output from 10V to 15V DC to suit compatible equipment.

• Remote on/off control: Connect an external low-current switch or an engine-run signal without requiring a high-current switch in the input wiring.

• Expandable capacity: Multiple units can be connected in parallel to increase output current.

• Built-in protection: Short-circuit protection and automatic output-current reduction at high temperatures.

• IP43 protection: Applies when installed with the screw terminals facing downward.

• Simple installation: Screw-terminal connections require no special tools.

• Replaceable-system consideration: The internal input fuse is not replaceable.

SPECIFICATIONS

• Input voltage range: 16–35V DC

• Nominal output voltage: 12.2V DC

• Adjustable output voltage: 10–15V DC

• Continuous output current: 30A at 40°C

• Continuous output power: 430W at 25°C / 360W at 40°C

• Maximum efficiency: 88%

• Galvanic isolation: 200V DC

• Operating temperature: -20°C to +55°C; output derates above 40°C

• Protection rating: IP43 when correctly installed

• Connections: Screw terminals, up to 16mm² (AWG 6) cable

• Dimensions (H × W × D): 5.1 × 7.3 × 3.2 in (130 × 186 × 80 mm)

• Weight: Approximately 4 lb (1.8 kg)

• Warranty: 5-year limited warranty
