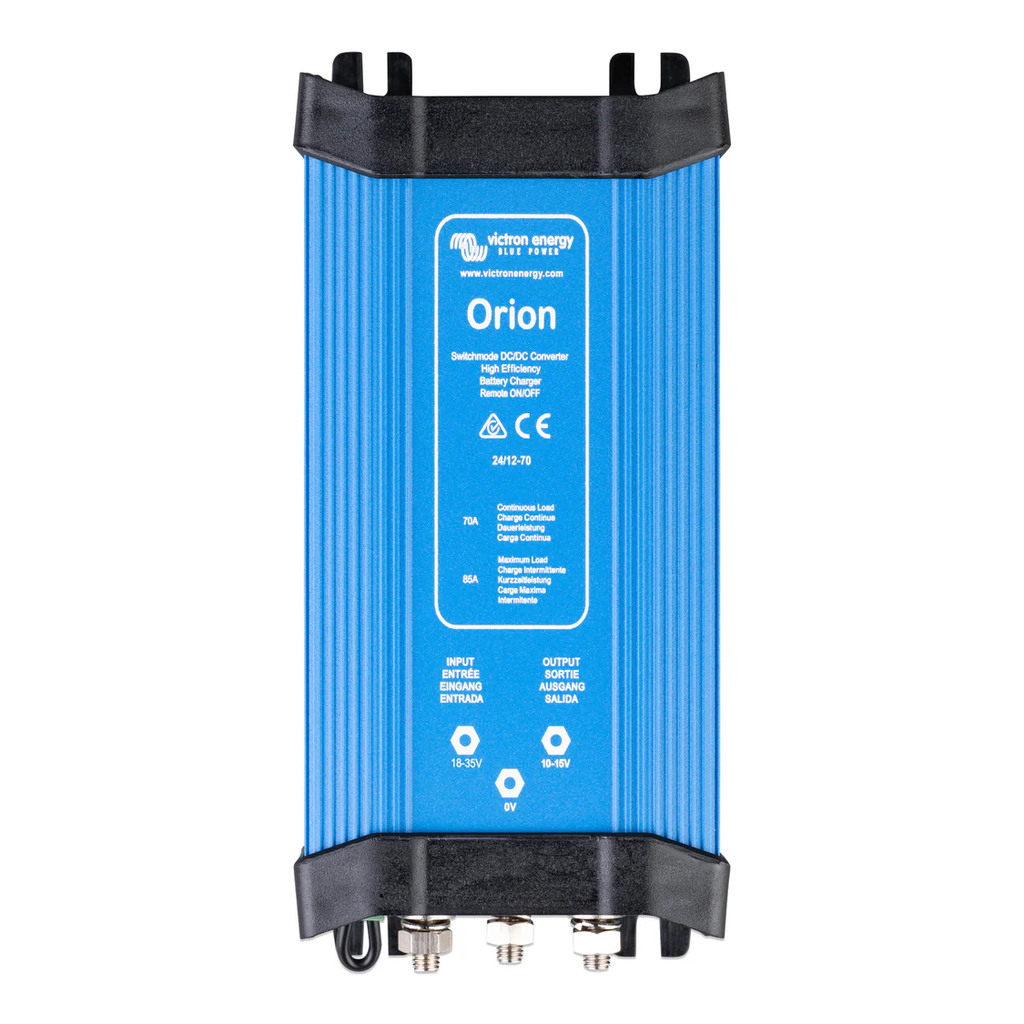

Victron Energy Orion 24/12-70A DC-DC Converter

Technical Datasheet  User Manual

The Victron Energy Orion 24/12-70A converts a 24V DC supply into an adjustable 12V-range output for powering high-current equipment in RVs, boats and other electrical systems. Its non-isolated design, remote on/off connector and temperature-controlled fan make it suitable for demanding DC applications. It can also be configured for compatible battery-charging applications.

FEATURES

• 70A continuous output: Powers compatible high-current 12V equipment.

• Adjustable output voltage: Adjustable from 10V to 15V, factory-set to 13.2V.

• Non-isolated conversion: Input and output share a common electrical ground.

• Remote on/off control: Operate the converter with a low-power switch or engine run signal.

• Parallel operation: Connect up to five compatible units to increase output current.

• Battery charging capability: Adjustable output allows use as a buffer charger for a compatible 12V battery in a 24V system.

• Active cooling: Temperature-controlled fan helps manage heat under load.

• IP20 enclosure: Intended for protected indoor installations.

SPECIFICATIONS

• Input voltage range: 18–35V DC

• Undervoltage shutdown: 14V

• Undervoltage restart: 18V

• Output voltage: Adjustable 10–15V DC; factory setting 13.2V

• Continuous output current: 70A

• Maximum output current: 85A

• Maximum efficiency: 92%

• No-load current: Less than 20mA

• Galvanic isolation: None

• Cooling: Temperature-controlled fan

• Operating temperature: -20°C to +55°C; output derating above +40°C

• Protection rating: IP20

• Connections: Screw/terminal connections; verify the exact terminal arrangement before installation

• Dimensions: Approximately 195 × 88 × 65mm (7.7 × 3.5 × 2.6in)

• Weight: Approximately 0.9kg (2lb)

• Warranty: 5-year limited warranty
