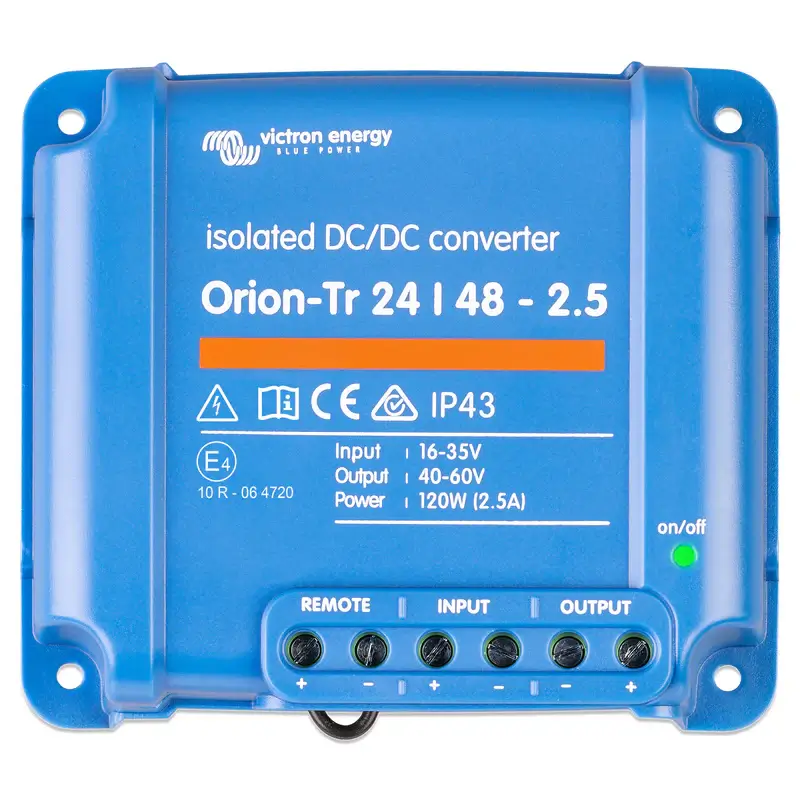

Victron Energy Orion-Tr 24/48-2.5A (120W) Isolated DC-DC Converter

Technical Specifications  User manual

The Victron Energy Orion-Tr 24/48-2.5A is an isolated DC-DC converter that steps up a 24V DC supply to an adjustable 48V-class output. Designed for vehicle electrical systems, marine installations, and off-grid applications, it delivers stable power with galvanic isolation between input and output. Remote on/off control, short-circuit protection, and the ability to connect multiple units in parallel provide added flexibility for custom electrical systems.

FEATURES

• Voltage conversion: Steps up 24V DC to an adjustable 40–60V DC output.

• Galvanic isolation: Provides 200V DC isolation between input, output, and case.

• Remote on/off: Allows control using a low-power switch or compatible engine signal.

• Parallel operation: Multiple units can be connected in parallel to increase output current.

• Short-circuit protection: Designed to protect against output short circuits.

• Thermal protection: Automatically reduces output current at high ambient temperatures.

• IP43 protection: Applies when installed with the screw terminals facing downward.

• Simple connections: Screw terminals require no special installation tools.

SPECIFICATIONS

• Input voltage range: 16–35V DC

• Undervoltage shutdown / restart: 14V / 15V

• Nominal output voltage: 48.2V DC

• Adjustable output voltage: 40–60V DC

• Continuous output current: 2.5A at nominal output voltage and 25°C

• Maximum output current: 3A for 10 seconds

• Continuous output power: 120W at 25°C

• Maximum efficiency: 88%

• Galvanic isolation: 200V DC between input, output, and case

• Operating temperature: -20°C to +55°C; output derating above 40°C

• DC connections: Screw terminals

• Maximum cable cross-section: 6mm²

• Protection rating: IP43 when installed with terminals facing downward

• Dimensions (H × W × D): Approximately 100 × 113 × 47mm (3.9 × 4.4 × 1.9in)

• Weight: 0.42kg (0.93lb)

• Warranty: 5-year limited manufacturer warranty

IMPORTANT: This converter is not intended as a dedicated battery charger. For battery charging with configurable charging algorithms, consider a compatible Victron Orion-Tr Smart model.
