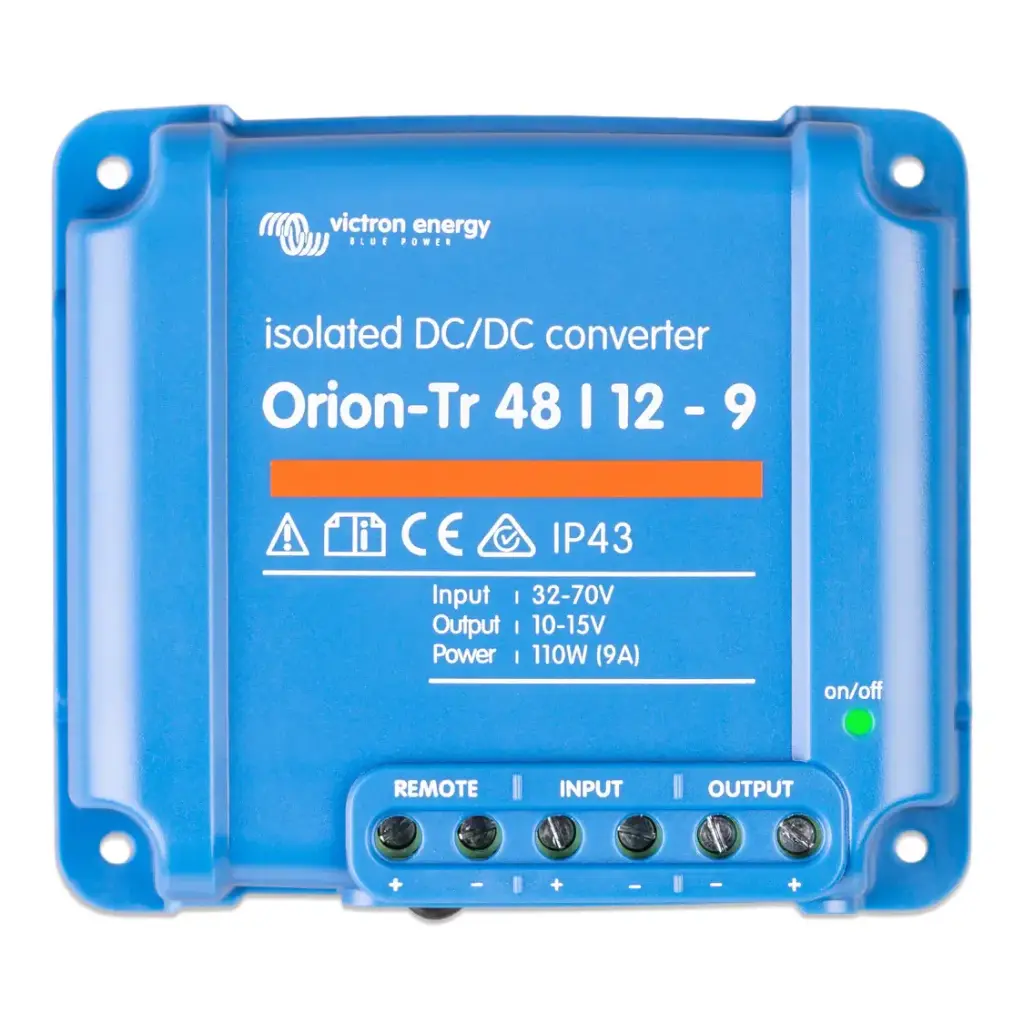

Victron Energy Orion-Tr 48/12-9A (110W) Isolated DC-DC Converter

DATA SHEET  USER MANUAL

The Victron Energy Orion-Tr 48/12-9A converts 48V-class DC power into a stable, adjustable lower-voltage supply for compatible 12V equipment in RVs, boats and off-grid systems. Its galvanic isolation separates the input and output circuits, while remote on/off control and parallel operation provide installation flexibility.

FEATURES

• Voltage conversion: Steps down a 48V-class DC input to an adjustable 12V-range output.

• Galvanic isolation: 200V DC isolation between input, output and case.

• Adjustable output: Set the output voltage to suit compatible DC equipment.

• Remote on/off: Control the converter using a low-power switch without a high-current input switch.

• Parallel operation: Connect multiple units in parallel to increase output current.

• Protection: Short-circuit protection and temperature protection with automatic output-current reduction.

• Simple installation: Screw terminals require no special tools.

SPECIFICATIONS

• Input voltage range: 32–70V DC

• Undervoltage shutdown: 28V

• Undervoltage restart: 30V

• Nominal output voltage: 12.2V DC

• Adjustable output range: 10–15V DC

• Continuous output current: 9A at nominal output voltage and 40°C

• Maximum output current: 12.5A for 10 seconds under specified conditions

• Output power: 110W at 25°C; 85W continuous at 40°C

• Maximum efficiency: 87%

• No-load input current: Less than 50mA

• Remote-off consumption: Less than 200µA

• Operating temperature: -20°C to +55°C; derate output by 3% per °C above +40°C

• Humidity: Maximum 95%, non-condensing

• Protection rating: IP43 when installed with screw terminals facing downward

• Connections: Screw terminals; cable cross-section up to 16mm²

• Dimensions: 100 × 113 × 47mm (3.9 × 4.4 × 1.9in)

• Weight: 0.42kg (0.93lb)

• Warranty: 5-year limited warranty

IMPORTANT

This standard Orion-Tr converter is not intended for battery charging. For charging a 12V battery from a 48V system, choose a suitable DC-DC battery charger, such as a compatible Orion-Tr Smart model.
