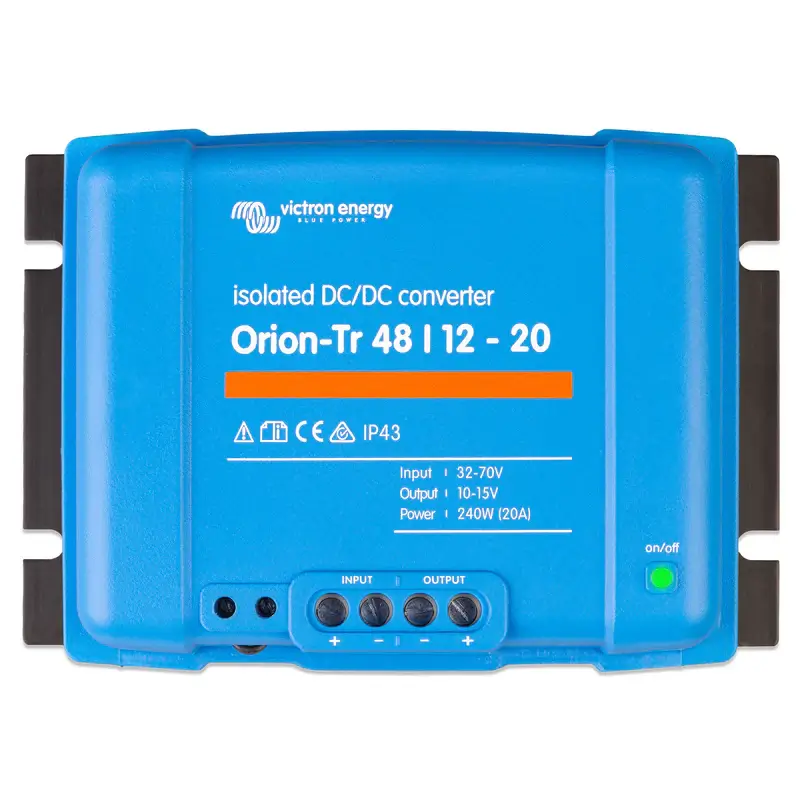

Victron Energy Orion-Tr 48/12-20A (240W) Isolated DC-DC Converter

Technical Specifications  User manual

The Victron Energy Orion-Tr 48/12-20A converts a 32–70V DC input into a stable, adjustable 12V output for vehicle, marine, and off-grid electrical systems. Galvanic isolation separates the input and output circuits, while remote on/off control, short-circuit protection, and parallel operation provide flexibility for demanding installations.

FEATURES

• 48V to 12V conversion: Provides a nominal 12.2V output, adjustable from 10V to 15V.

• 20A continuous output: Supplies up to 20A at 40°C under specified operating conditions.

• Galvanic isolation: Provides 200V DC isolation between input, output, and case.

• Remote on/off control: Allows operation through a low-current switch without a high-current input switch.

• Parallel operation: Connect multiple units to increase available output current.

• Integrated protection: Short-circuit protection and thermal protection with automatic output-current reduction at high temperatures.

• Flexible installation: Screw terminals simplify wiring; IP43 protection applies when installed with terminals facing downward.

SPECIFICATIONS

• Input voltage range: 32–70V DC

• Undervoltage shutdown / restart: 28V / 30V

• Nominal output voltage: 12.2V DC

• Adjustable output voltage: 10–15V

• Continuous output current: 20A at 40°C

• Maximum output current: 25A for 10 seconds under specified conditions

• Continuous output power: 280W at 25°C; 240W at 40°C

• Peak efficiency: 87%

• No-load input current: Less than 80mA

• Galvanic isolation: 200V DC

• Operating temperature: -20°C to +55°C; derating above 40°C

• Maximum humidity: 95%, non-condensing

• Connections: Screw terminals, up to 16mm² / AWG 6

• Protection rating: IP43 when installed with terminals facing downward

• Dimensions (H × W × D): 130 × 186 × 70mm (5.1 × 7.3 × 2.8in)

• Weight: Approximately 1.3kg (2.9lb)

• Warranty: 5-year limited warranty

IMPORTANT: This converter is not intended as a dedicated battery charger. For battery charging, use a compatible Orion-Tr Smart DC-DC charger. The 48V-input model does not include the internal input fuse fitted to certain 12V and 24V-input models.
