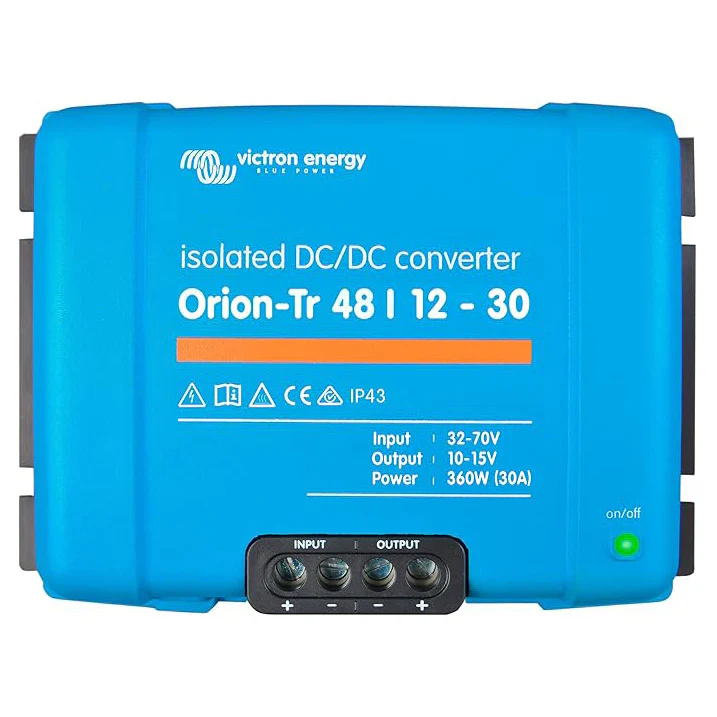

Victron Energy Orion-Tr 48/12-30A (360W) Isolated DC-DC Converter

Victron Energy Orion-Tr 48/12-30A (360W) Isolated DC-DC Converter

Technical Specifications  User manual

Victron Energy Orion-Tr 48/12-30A (360W) – Isolated DC-DC Converter

Powerful 48V to 12V Conversion for Mobile and Off-Grid Systems

The Victron Orion-Tr 48/12-30A is a high-performance isolated DC-DC converter designed to step down 48V DC to 12V DC with a maximum output of 30 amps and 360 watts. Ideal for demanding electrical systems in vehicles, marine setups, and off-grid installations, it ensures consistent and stable 12V power delivery under all conditions.

Key Features:

• Isolated Design – Electrical isolation prevents ground loop issues and enhances safety
• Remote On/Off Terminal – Enables switching with a low-power signal or ignition switch; no high-current switch needed
• Parallel Capable – Connect multiple units in parallel to increase total output current
• High Temperature Protection – Output is automatically derated in high ambient temperatures to prevent overheating
• IP43 Rated – Resistant to dust and splashes when mounted with terminals facing downward
• Screw Terminals – No special tools required for installation
• Non-Replaceable Input Fuse – For added internal protection (not present on 48V input models)
• Adjustable Output Voltage – Allows voltage fine-tuning (not designed for battery charging)

⚠️ For battery charging applications, consider using the Victron Orion-Tr Smart series instead.

Technical Specifications:

• Input Voltage: 48V DC
• Output Voltage: 12V DC (adjustable)
• Output Current: 30A
• Power Output: 360W
• Isolation: Yes
• IP Rating: IP43
• Connector Type: Screw terminals
• Mounting Orientation: Terminals must face downward for IP rating

Ideal Applications:

✔ RV and vehicle electrical systems

✔ Boats and marine electronics

✔ Remote off-grid power setups

✔ DC loads requiring a stable 12V supply from 48V sources

Built for reliability in tough environments, the Victron Orion-Tr 48/12-30A delivers stable 12V power with flexible installation options and protective features.
