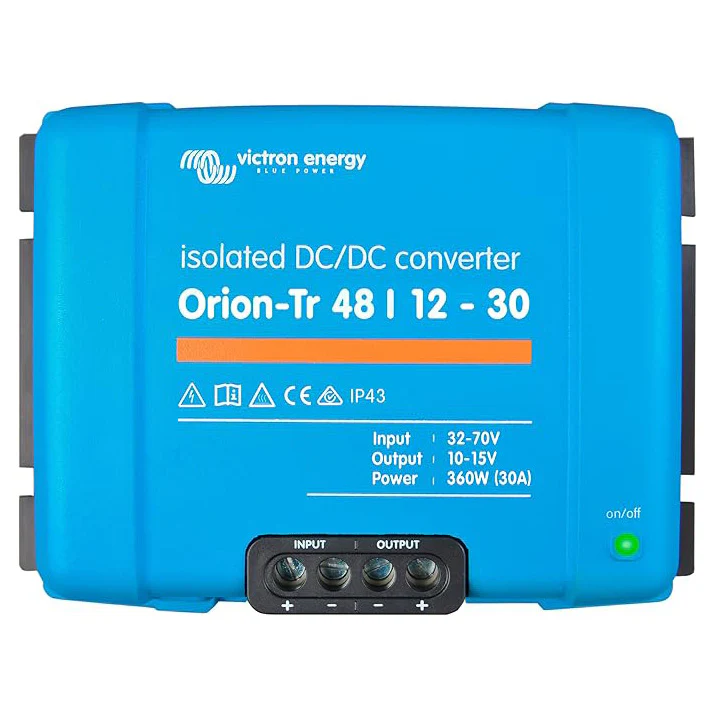

Victron Energy Orion-Tr 48/12-30A (360W) Isolated DC-DC Converter

Technical Specifications  User manual

The Victron Energy Orion-Tr 48/12-30A converts a 48V-class DC supply into adjustable 12V output for powering lower-voltage equipment in RVs, marine systems, vehicles, and off-grid installations. Its galvanic isolation separates the input, output, and case, while remote on/off control and built-in protection support reliable operation in demanding electrical systems.

FEATURES

• Voltage conversion: Converts 48V DC to an adjustable 10–15V DC output.

• High output current: Provides 30A continuous output at 40°C.

• Galvanic isolation: 200V DC isolation between input, output, and case.

• Remote on/off control: Operates through a low-power switch or compatible engine signal.

• Parallel operation: Multiple units can be connected in parallel to increase output current.

• Built-in protection: Short-circuit protection and thermal protection with automatic output-current reduction at high temperatures.

• IP43 protection: Applies when installed with the screw terminals facing downward.

• Simple installation: Screw terminals require no special tools.

SPECIFICATIONS

• Input voltage range: 32–70V DC

• Undervoltage shutdown / restart: 28V / 30V

• Nominal output voltage: 12.2V DC

• Adjustable output voltage: 10–15V DC

• Continuous output current: 30A at nominal output voltage and 40°C

• Maximum output current: 40A for 10 seconds under specified conditions

• Short-circuit output current: 60A

• Continuous output power: 430W at 25°C; 360W at 40°C

• Maximum efficiency: 87%

• No-load input current: Less than 80mA

• Remote-off current consumption: Less than 200µA

• Galvanic isolation: 200V DC between input, output, and case

• Operating temperature: -20°C to +55°C; output derating of 3% per °C above 40°C

• Maximum humidity: 95%, non-condensing

• DC connections: Screw terminals

• Maximum cable cross-section: 16mm² (AWG 6)

• Protection rating: IP43 when installed with terminals facing downward

• Dimensions (H × W × D): 130 × 186 × 80mm (5.1 × 7.3 × 3.2in)

• Weight: 1.8kg (4lb)

• Warranty: 5-year limited manufacturer warranty

IMPORTANT: This is a DC-DC converter, not a dedicated battery charger. For battery charging with configurable charging algorithms, consider a compatible Victron Orion-Tr Smart model.
