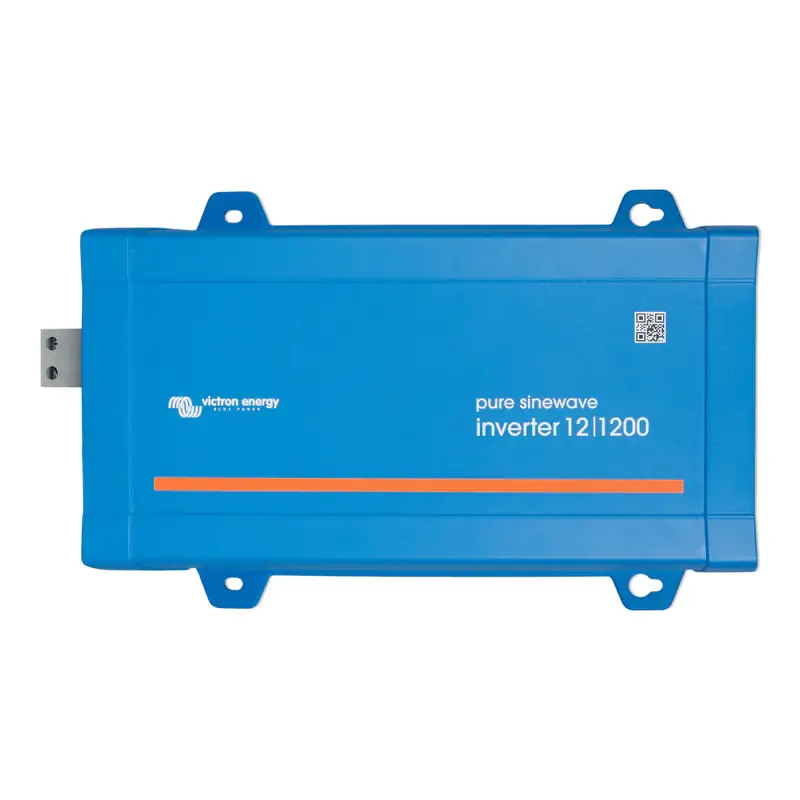

Victron Energy 12/1200 120V VE.Direct NEMA GFCI Phoenix Inverter

Datasheets  Manual

Power your 120V AC appliances from a 12V battery system with the Victron Energy Phoenix 12/1200 inverter. It delivers pure sine wave power, high start-up capacity and configurable operating settings for reliable use in RVs, vans and off-grid systems.

FEATURES

• 1200VA rated output

• Continuous power: 1000W at 25°C

• Peak power: 2200W

• 120V AC output with NEMA GFCI receptacle

• VE.Direct communication port for monitoring and configuration

• Compatible with optional VE.Direct-to-USB cable or VE.Direct Bluetooth Smart dongle

• Adjustable low-battery alarms, cut-off and restart thresholds

• Configurable output settings and ECO mode

• Remote on/off connection

• LED diagnostic indicators

• Protection against short circuits and overheating

SPECIFICATIONS

• DC input: 12V

• Maximum efficiency: 91%

• Dimensions (H × W × D): 4.6 × 9.1 × 12.9 in

• Weight: 16.3 lb

• Warranty: 5-year limited warranty

INSTALLATION

• DC connections use screw terminals; no special tools required

• Optional Filax automatic transfer switch can transfer the load to another AC source

• Consult the manufacturer’s manual for wiring and safety requirements
