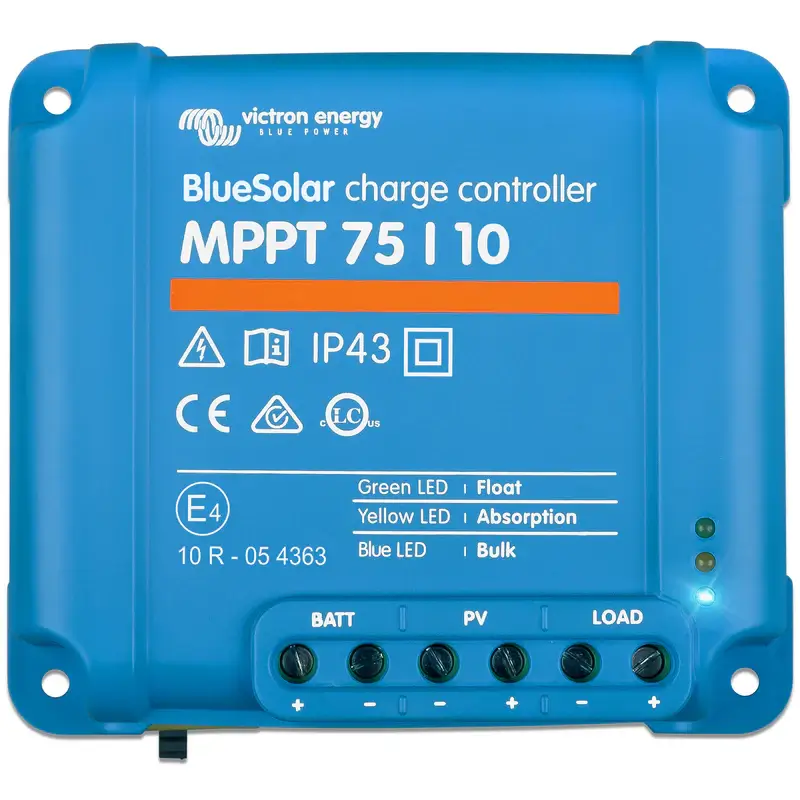

Victron Energy BlueSolar MPPT 75/10 Solar Charge Controller

Technical Specifications  User manual

The Victron Energy BlueSolar MPPT 75/10 efficiently converts solar energy into battery charge for 12V and 24V systems. Its ultra-fast Maximum Power Point Tracking (MPPT) technology optimizes energy harvesting, particularly in changing or cloudy conditions, helping charge batteries efficiently and extend their service life.

FEATURES

• Ultra-fast MPPT technology: Can harvest up to 30% more energy than PWM controllers and up to 10% more than slower MPPT controllers.

• Battery protection: Automatic load disconnect helps prevent excessive battery discharge.

• BatteryLife algorithm: Intelligently adjusts load disconnection to promote regular, near-full battery recharging.

• Short-circuit protection: Built-in protection for the load output.

• Adaptive charging: Multi-stage charging algorithm adapts to battery requirements.

• VE.Direct port: Supports communication with compatible monitoring and control devices.

SPECIFICATIONS

• Battery voltage: 12V / 24V, automatic detection

• Maximum charge current: 10A

• Maximum PV open-circuit voltage: 75V

• Nominal solar power: 145W at 12V / 290W at 24V

• Peak efficiency: 98%

• Maximum continuous load current: 15A

• Dimensions (H × W × D): 3.94 × 4.45 × 1.57 in (100 × 113 × 40 mm)

• Weight: Approximately 1.1 lb (0.5 kg)
