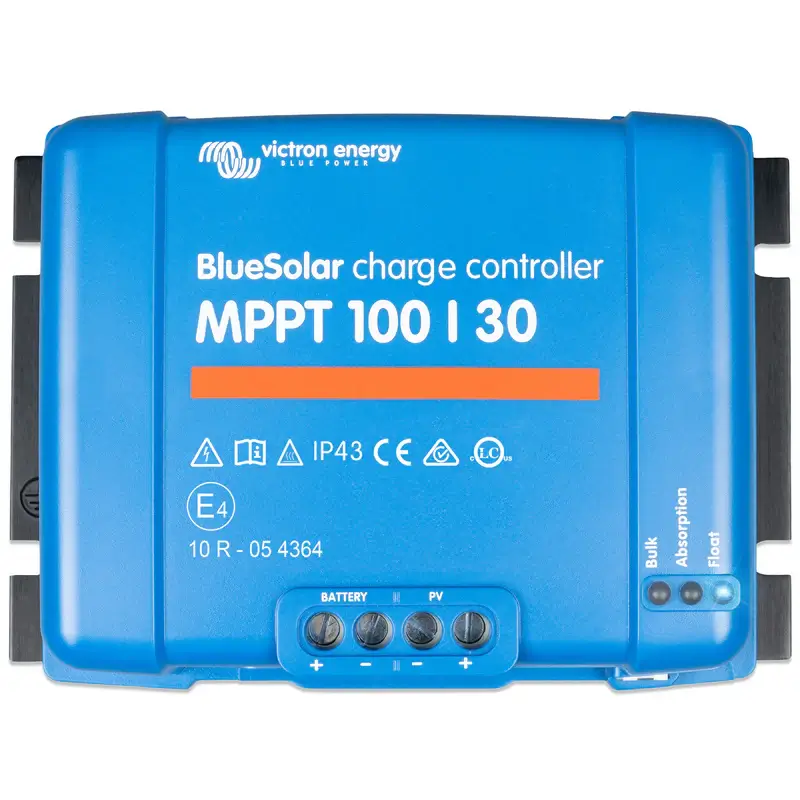

Victron Energy BlueSolar MPPT 100/30 Solar Charge Controller

Technical Specifications  User manual

The Victron Energy BlueSolar MPPT 100/30 efficiently converts solar energy into battery charge for 12V and 24V systems. Its ultra-fast Maximum Power Point Tracking (MPPT) technology optimizes energy harvesting, particularly in changing or cloudy conditions, helping maintain battery health and extend service life.

FEATURES

• Ultra-fast MPPT technology: Can harvest up to 30% more energy than PWM controllers and up to 10% more than slower MPPT controllers.

• Battery protection: Load output disconnects connected equipment when the battery reaches a preset voltage.

• BatteryLife algorithm: Intelligently adjusts load disconnection to promote regular, near-full battery recharging.

• Short-circuit and over-temperature protection: Helps protect the controller during operation.

• Adaptive charging: Eight preset charging algorithms, with the option to configure a custom algorithm.

• VE.Direct port: Supports communication with compatible monitoring and control devices.

SPECIFICATIONS

• Battery voltage: 12V / 24V, automatic detection

• Rated charge current: 30A

• Maximum PV open-circuit voltage: 100V

• Nominal solar power: 440W at 12V / 880W at 24V

• Maximum PV short-circuit current: 35A

• Peak efficiency: 98%

• Operating temperature: -22°F to 140°F (-30°C to +60°C); full rated output up to 104°F (40°C)

• Protection rating: IP43 for electronic components; IP22 for the connection area

• Dimensions (H × W × D): 5.12 × 7.32 × 2.76 in (130 × 186 × 70 mm)

• Weight: 2.87 lb (1.3 kg)
