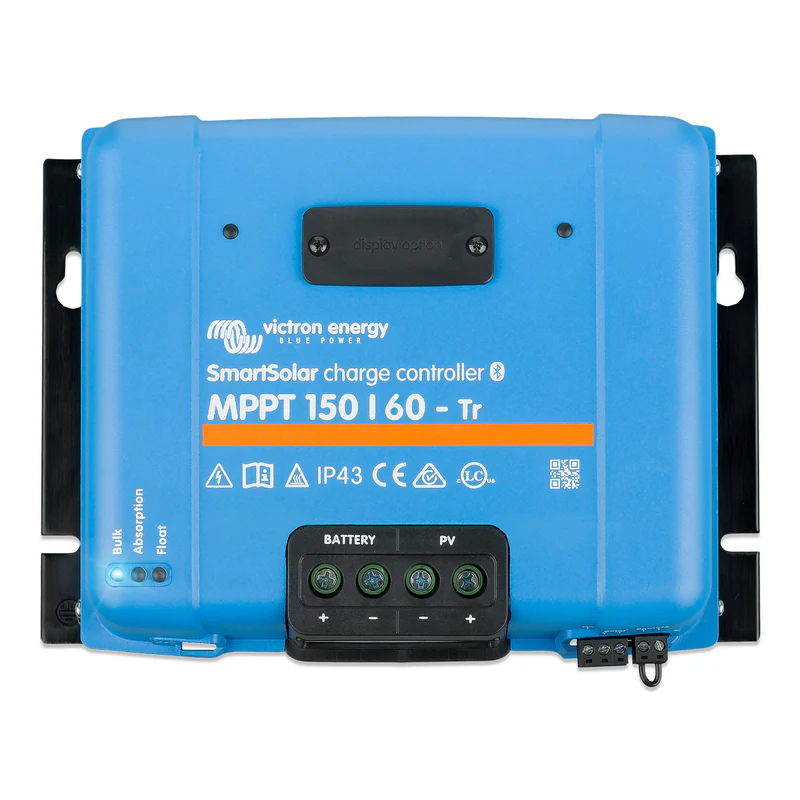

Victron Energy SmartSolar MPPT 150/60-Tr Solar Charge Controller

Datasheets  Manual

The Victron Energy SmartSolar MPPT 150/60-Tr efficiently converts solar power into battery charging energy using ultra-fast Maximum Power Point Tracking (MPPT) technology. With built-in Bluetooth, configurable charging algorithms, and support for 12V to 48V battery systems, it helps maximize solar energy harvest while protecting battery health. Its TR version uses screw terminals for solar panel and battery connections.

FEATURES

• 60A charging current: Supports compatible 12V, 24V, 36V, and 48V battery systems.

• 150V PV input: Maximum absolute open-circuit voltage of 150V; 145V maximum for startup and operation.

• High efficiency: Peak conversion efficiency of 98%.

• Built-in Bluetooth: Configure, monitor, and update the controller through the VictronConnect app.

• Advanced MPPT tracking: Optimizes solar energy harvest, including under changing light and partial shading.

• Flexible charging: Eight preset charging algorithms plus a configurable user-defined profile.

• Synchronized charging: Supports synchronized operation with compatible SmartSolar controllers via Bluetooth.

• Integrated protection: Includes protection against overheating, PV reverse polarity, PV short circuits, and reverse current.

• Remote control: Includes a remote on/off connection and a programmable relay.

SPECIFICATIONS

• Maximum battery charging current: 60A

• Compatible battery voltages: 12V, 24V, 36V, and 48V DC

• Maximum PV open-circuit voltage: 150V absolute maximum; 145V operating maximum

• Maximum PV short-circuit current: 50A

• Nominal PV power at 12V: 860W

• Nominal PV power at 24V: 1,720W

• Nominal PV power at 36V: 2,580W

• Nominal PV power at 48V: 3,440W

• Peak efficiency: 98%

• Communication: Bluetooth and VE.Direct

• PV and battery connections: Screw terminals, up to 35mm² / AWG 2

• Protection rating: IP43 for electronic components; IP22 for the connection area

• Operating temperature: -30°C to +60°C; full rated output up to +40°C

• Dimensions (H × W × D): 185 × 250 × 95mm (7.3 × 9.8 × 3.7in)

• Weight: 3kg (6.6lb)

• Warranty: 5-year limited warranty

IMPORTANT: The PV array’s open-circuit voltage must remain within the controller’s limits under the coldest expected conditions. The 150V rating is an absolute maximum, not the recommended operating voltage. Nominal PV power ratings depend on battery voltage; the controller limits excess input power.
