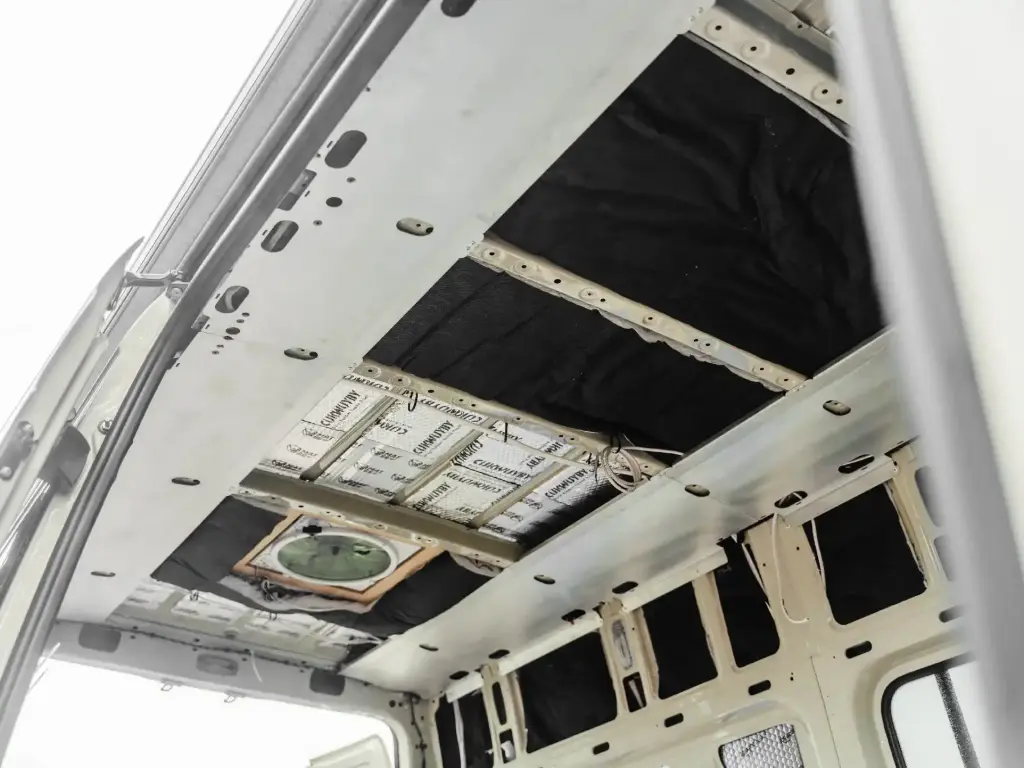

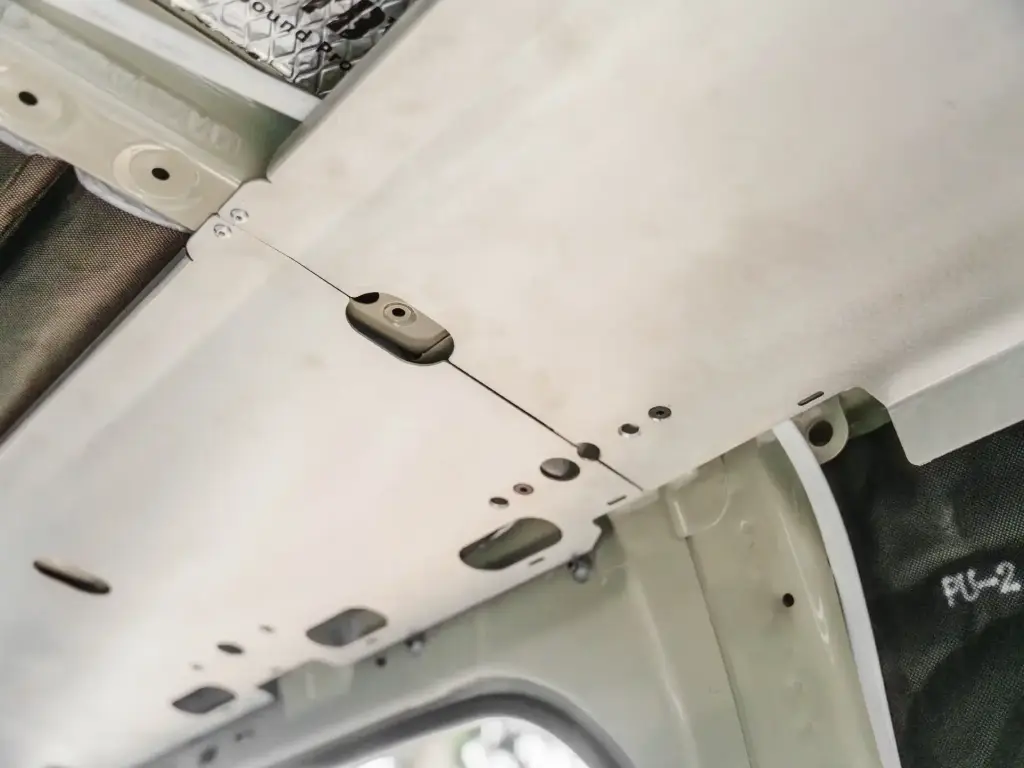

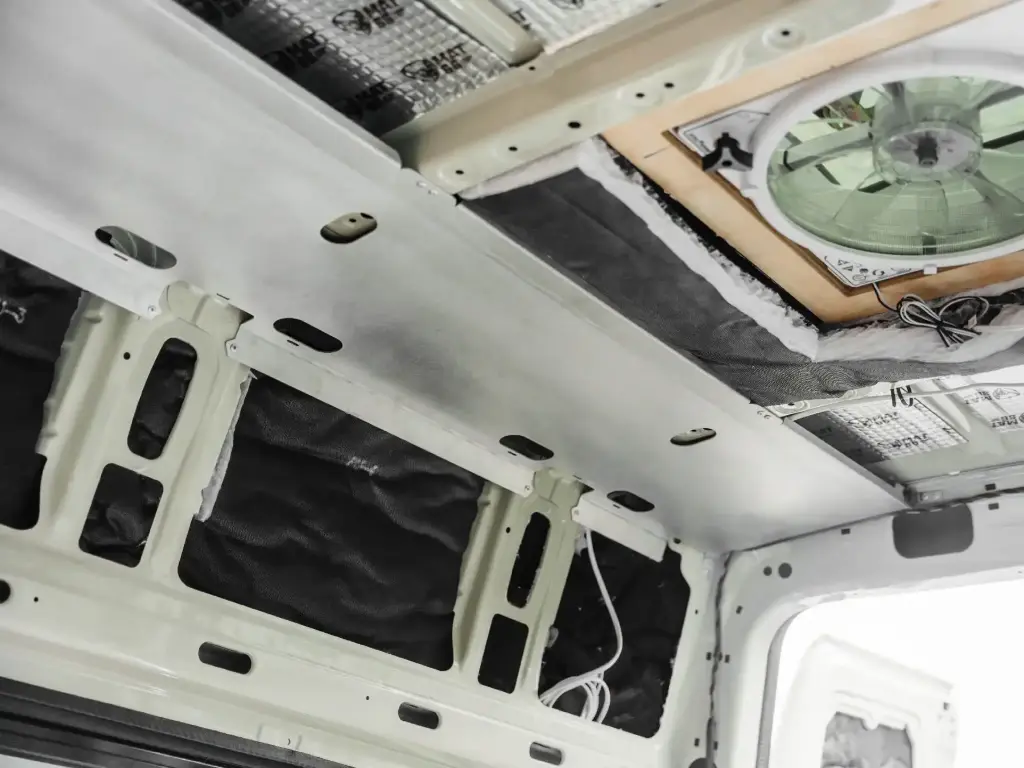

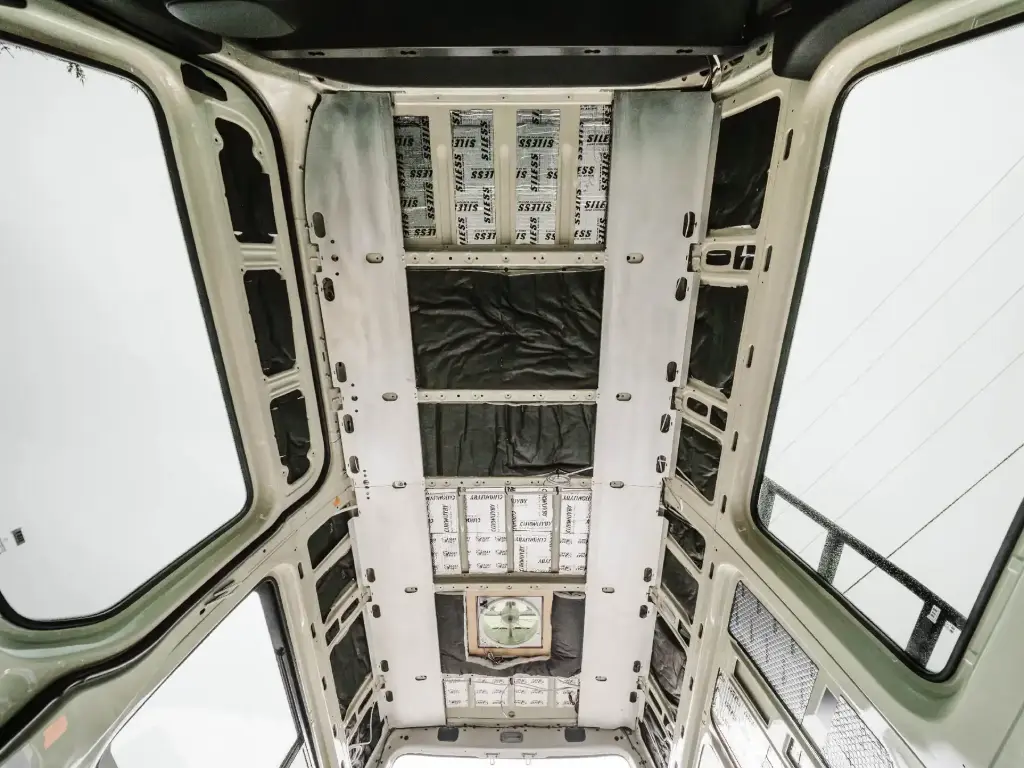

Sprinter Van Ceiling Structure Kit – 2019+ High Roof

Upgrade your van build process with the Sprinter Van Ceiling Structure Kit, designed to create a continuous, flat and professional mounting surface across the entire ceiling. This system eliminates the common challenges of locating structural ribs, dealing with uneven ceiling panels, and planning cabinet placement around factory limitations.

By bridging factory ceiling ribs, the kit provides a stable foundation for insulation, wiring, and overhead storage installations while delivering a clean, factory-style interior finish.

Features

  • Creates a continuous flat ceiling mounting surface (13” wide)
  • Bridges factory ceiling structural ribs
  • Enables flexible placement of upper cabinets and storage systems
  • Built-in wire routing channels and pass-through access
  • Creates dedicated insulation pockets
  • Eliminates sagging or uneven ceiling panel issues
  • Produces a clean, factory-style interior finish
  • Reduces installation complexity and build time

Installation Overview

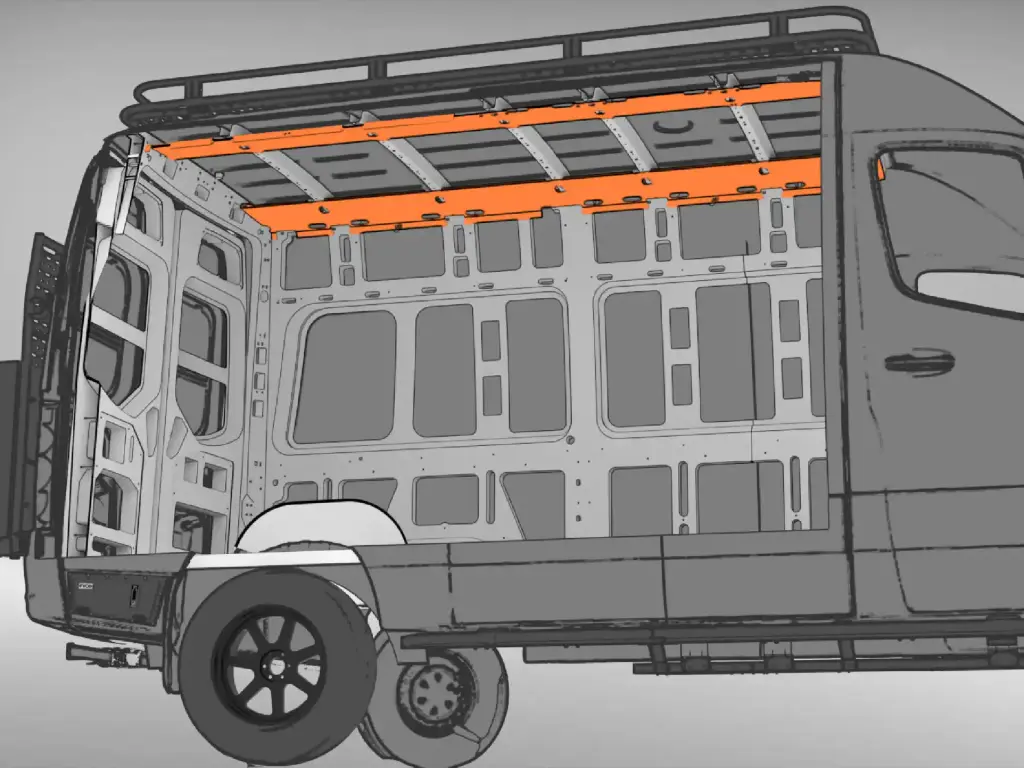

The structure panels install along the factory ceiling ribs, forming a unified mounting surface that runs the length of the van. Integrated flanges at the wall-to-ceiling junction help align interior panels without additional furring strips or leveling components.

Once installed, the system provides structured channels for wiring and defined cavities for insulation placement, allowing subsequent ceiling panels, cabinetry, and accessories to be mounted anywhere along the supported surface.

Compatibility

  • Compatible with Mercedes-Benz Sprinter High Roof vans (2019+)
  • Fits both 144” and 170” wheelbase models
  • Designed for cargo van interior conversion use

Specifications

  • Material: 2mm aluminum
  • Brackets: stainless steel
  • Flat mounting surface width: 13 inches
  • Integrated features: wire channels, pass-throughs, insulation pockets
  • Finish: factory-style structural interior mounting system
Select your van SPRINTER 144" or SPRINTER 170"
Installation Services I would like it installed ( Give us a call or an Email ) or I will do it Myself
