545W Longi Solar Panel bifacial

Price:

290,00 $
  2. Shop
  3. 545W Longi Solar Panel bifacial
Roof Rack F45s - Sprinter 170 - EAGLE - Backland
Roof Rack F45s - Sprinter 170 - EAGLE - Backland
7 495,00 $
7 495,00 $
Solar Panel - PV cable #10 - 2 conductors M&F
Solar Panel - PV cable #10 - 2 conductors M&F
90,00 $
90,00 $
Longi Solar

545W Longi Solar Panel bifacial

SKU:

202​2323582

https://canadarv.com/web/image/product.template/5977/image_1920?unique=aad780c

290,00 $ 290.0 CAD 290,00 $

Contactez-nous pour obtenir un prix

Cette combinaison n'existe pas.

Contactez-nous

Conditions générales
Retour sous 30 jours pour la plupart des commandes.
Livraison gratuite sur la plupart des commandes.

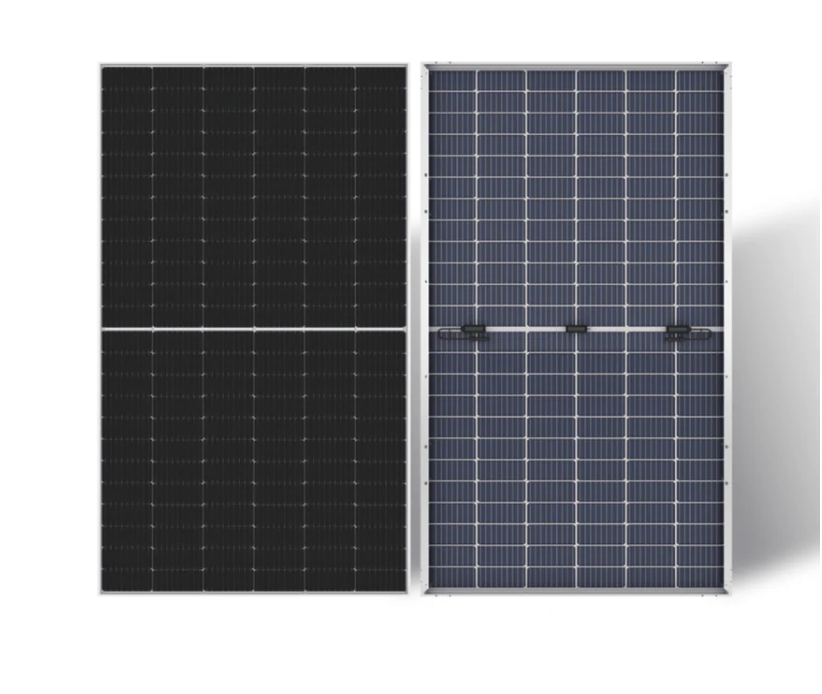

545W Longi Solar Panel bifacial

Dimensions & Weight:
  • Metric: 1133mm x 2256mm x 35mm
  • Imperial: 88.2" × 44.61" × 1.37"

Product Specifications:

  • Cell Orientation: 144 (6X24)
  • Junction Box: 1P68, three diodes
  • Output Cable: 4mm 2, +400, -200mm/±1400mm length can be customized.
  • Glass: Dual glass, 2.0mm coated tempered glass
  • Frame: Anodized aluminum alloy frame
  • Weight: 32.3kg
  • Dimension: 2256X1133 X 35mm
  • Operational Temperature: -40°C ~ +85°C
  • Power Output Tolerance: 0 ~ +5 W
  • Voc and Isc Tolerance: ±3%
  • Maximum System Voltage: DC1500V (IEC/UL)
  • Maximum Series Fuse Rating: 30A
  • Nominal Operating Cell Temperature: 45±2°C
  • Protection Class: Class II
  • Fire Rating: UL type 29
  • Bifaciality: 70±5%

DATA SHEET

USER MANUAL

Width: 62.79" (1595mm)

Crossbar Length: 62.40" (1585mm)

130 HR Transit: 104.72" (266.0cm)

148 MR Transit: 132.3" (336.0cm)

148 HR Transit: 81.9" (308.0cm)

148 HR EXT Transit: 150.4" (382.0cm)

Lengths by Vehicle:

Internal Width: 62.22" (1555mm)

130 Transit: 49 lbs

148 Transit: 58 lbs

148 EXT Transit: 74 lbs
