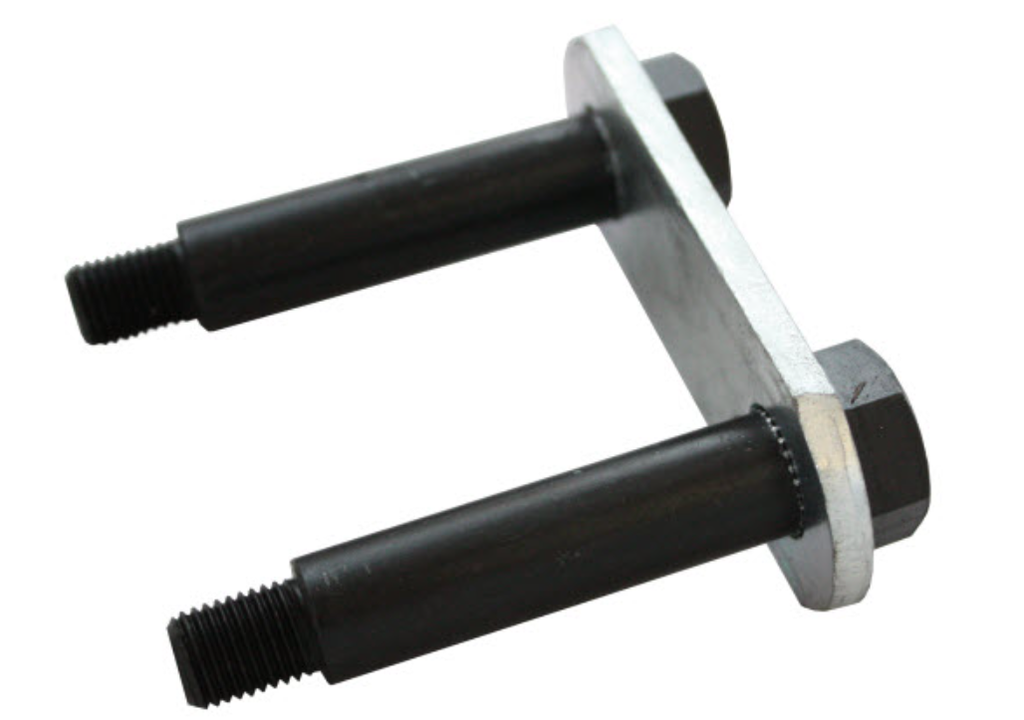

Shackle Link Assembly - 0.224" Thickness, 2-1/4" Center-to-Center
Features
- Direct replacement shackle link assembly for RV suspension systems
- Connects leaf springs to axle hangers for stable suspension movement
- Available in multiple sizes for proper system matching
- Includes complete installation hardware for straightforward replacement
- Heavy-duty compatible design for use with greaseable wet bolt systems
- Supports improved suspension stability during travel conditions
- DIY-friendly replacement kit for efficient maintenance and repair
Specifications
- Component type: Suspension shackle link assembly
- Available sizes: 2.25" and 3.13" (center-to-center measurement)
- Measurement reference: Center hole to center hole width
- Material: Heavy-duty steel construction
- Compatibility: RV trailer suspension systems
- Installation: Replacement kit, no assembly required
- Unit of measure: EA
- Fitment: Application-specific (not universal)
RV Suspension Shackle Link Assembly – Replacement Axle Connection Kit
Replacement shackle link assembly designed for RV suspension systems. This component connects suspension springs to axle hangers, helping maintain proper alignment, stability, and smooth suspension travel during towing and road use.
Included Components
- (1) Shackle link plate
- (2) Shoulder bolts
Installation Notes
- Replace worn or damaged suspension shackle components as needed
- Ensure correct sizing by referencing original suspension hardware
- Compatible with wet bolt (greaseable) configurations where applicable
Function Notes
- Maintains proper suspension geometry and axle alignment
- Helps improve towing stability and ride consistency
- Critical wear component for RV suspension maintenance
