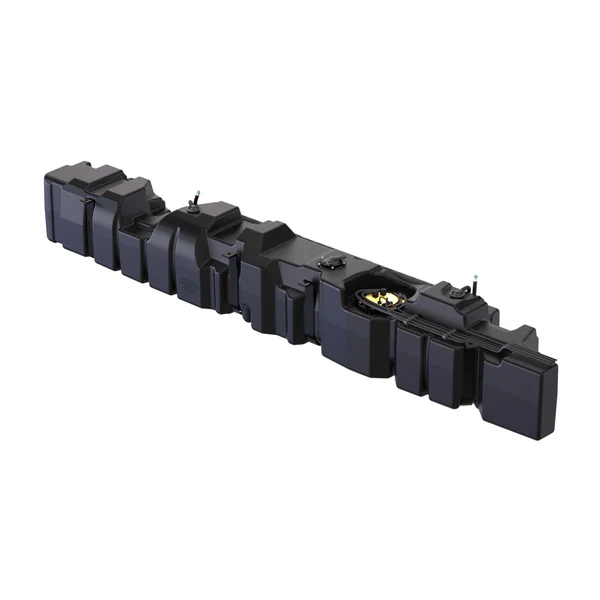

45 GALLON REPLACEMENT FUEL TANK FOR 2023-2025 MERCEDES SPRINTER 144" AND 170" WHEELBASE (10-1031)
This tank will NOT fit 170" Crew Vans or 144" Dual Rear Wheel Vans.
This tank will NOT fit:
- 144” Dually Vans
- 170” Crew Vans (1 row of seats)
- With plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.
- Storyteller XO (accommodation coming soon)
Part # 10-1032 is a shorter 40 gallon tank and will work for 170" Crew Vans and vans with plumbing behind the tank
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call your Mercedes dealer to confirm if you have this option. If you don’t have it, you will need TI1349-00.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
PRODUCT DETAILS
| DIMENSIONS | 98.28" X 15.41" X 14.17" |
| DRAIN | NO |
| GROUND CLEARANCE COMPARE TO OE TANK: 1.5" | 1.5" |
| OEM CAPACITY | 24 GALLONS |
| SENDING UNIT | OE |
| STRAPS INCLUDED | YES |
| SUMP | NO |
| S&B CAPACITY (APPROXIMATE) | 45 GALLONS |
| TANK TYPE | MIDSHIP |
| WEIGHT DRY | 45LBS |
VEHICLE FITMENT
| YEAR | MAKE | MODEL | ENGINE |
|---|---|---|---|
| 2023-2025 | MERCEDES | SPRINTER | 2.0L, DIESEL |
| 2023-2025 | STORYTELLER | CLASSIC MODE 4X4 | 3.0L, DIESEL |
| 2023-2025 | STORYTELLER | STEALTH MODE 4X4 | 3.0L, DIESEL |
| 2023-2025 | STORYTELLER | BEAST MODE 4X4 | 3.0L, DIESEL |
| 2025 | WINNEBAGO | EKKO | 2.0L, DIESEL |
