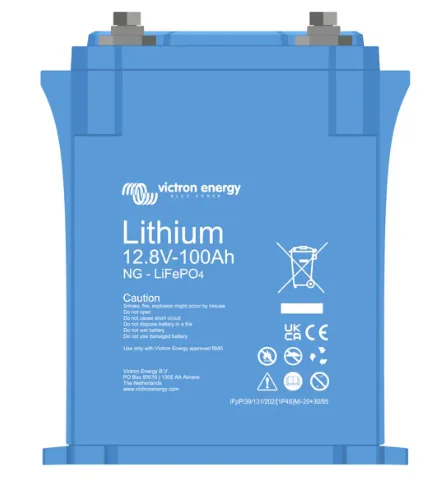

Victron Energy – 12V/100Ah Lithium LifePO4 NG Battery

Victron Energy Lithium NG Series – Advanced LiFePO₄ Battery Storage

The Victron Lithium NG (Next Generation) Series builds on the trusted performance of the Lithium Smart line, offering upgraded reliability, efficiency, and smart integration. Designed for high-demand off-grid, marine, RV, and industrial applications, these LiFePO₄ batteries deliver scalable, long-lasting energy storage in a compact, intelligent package.

Key Features:

• Available Voltages: 12.8 V, 25.6 V, 51.2 V
• Flexible System Design: Connect in series, parallel, or series/parallel to build battery banks for 12 V, 24 V, or 48 V systems
• High Capacity:
  • Up to 50 batteries per system
  • Max capacity:
    • 12 V system: 192 kWh
    • 24 V / 48 V system: 384 kWh

Integrated Intelligence

• Built-in Shunt: Measures voltage, current, and temperature, sending real-time data to the BMS for accurate State of Charge (SoC) calculation and system protection.
• Smart Monitoring: View battery performance via VictronConnect, a GX device, or the VRM Portal. Access cell voltages, temperatures, alerts, and firmware updates from anywhere.
• Automatic Configuration: The BMS (Lynx Smart BMS NG 500A/1000A – required and sold separately) auto-detects battery count and system voltage for seamless setup.

Rugged and Reliable

• Easy Bracket Mounting: Securely fastens the battery to prevent movement in mobile and vibration-prone environments.
• IP-Rated Enclosure: Dust-tight and water-resistant, suitable for marine, industrial, or outdoor installations.
• Low Self-Discharge: <2% per month, ideal for seasonal or infrequent use.

Long Cycle Life

• 2,500 cycles @ 80% DoD
• 3,000 cycles @ 70% DoD
• 5,000 cycles @ 50% DoD
