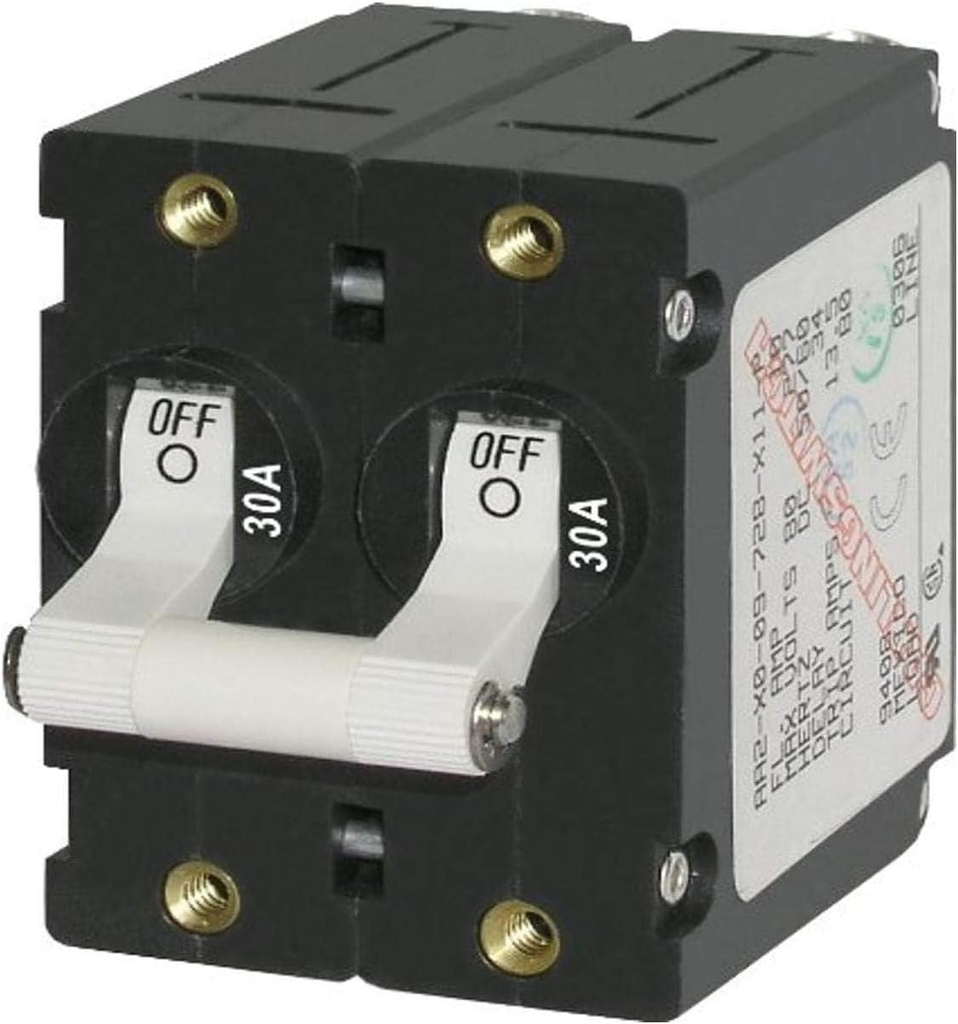

CIRCUIT BREAKER 30A - BLUE SEA
SKU:
2022323582
CIRCUIT BREAKER 30A - BLUE SEA
Description
Double Pole Toggle World Circuit Breakers - 30A - White - meets all American Boat and Yacht Council (ABYC) standards - UL 1077 recognized. TUV certified. CSA certified for Canada.
- the industry standard circuit breaker for Blue Sea Systems electrical panels.
- combines switching and circuit protection into a single device. - double pole used as 120/240 Volt AC branch circuit breakers to switch line 1 and line 2.
- "trip Free" design cannot be held "ON" during fault current condition.
- Circuit Breaker Type - Magnetic Hydraulic - Trip free
- Maximum Amperage - 50 Amperes.
- Weight: .34lb (0.15kg)
- Maximum Voltage - 277 Volts AC/ 65Volts DC
- Rated Switch Cycles - 10,000 @ rated amperage and voltage. Mounting Screw - #6-32. Terminal Screw - #10-32 with external tooth lock washer. Voltage - 65V DC Current 1-50A Interrupt Rating - 7,500A Voltage - 120V AC Current 1-50A Interrupt Rating - 3,000A Voltage - 250V AC Current 1-50A Interrupt Rating - 1,500A
