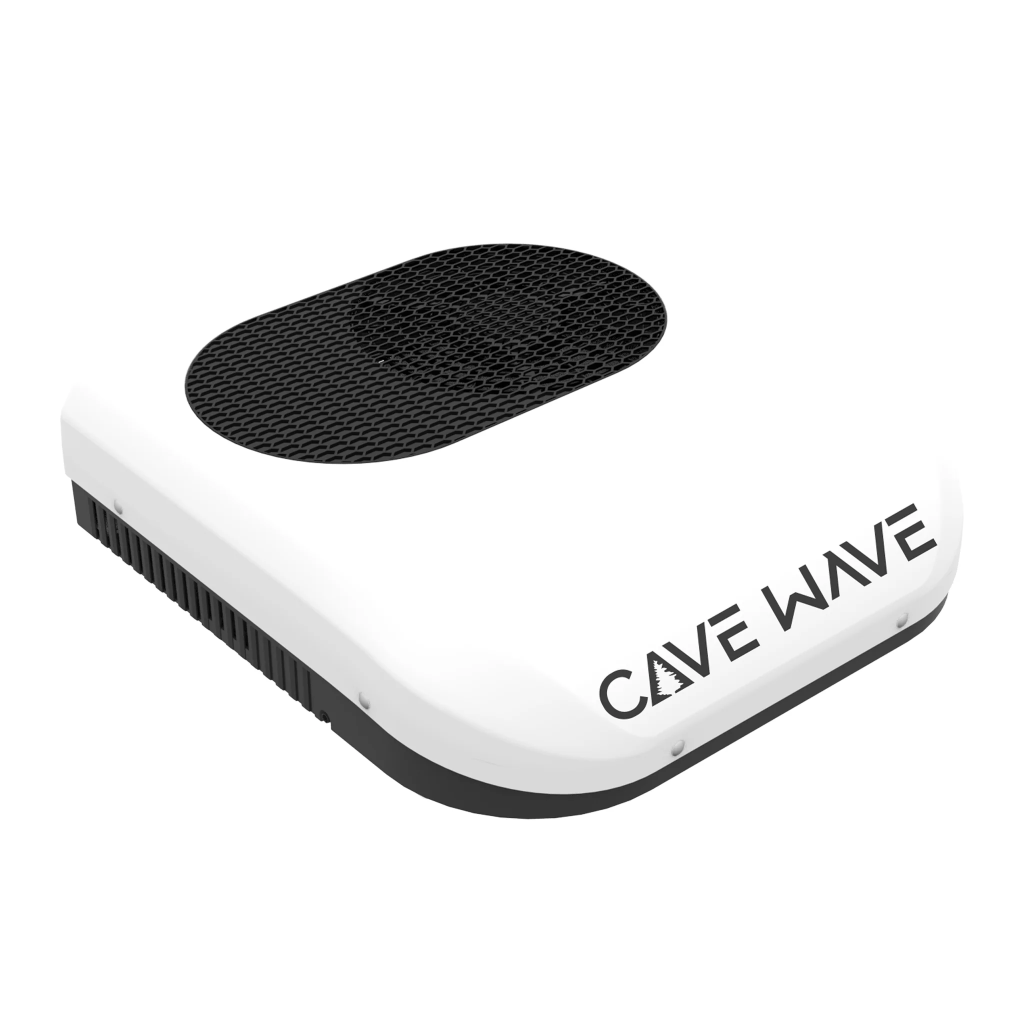

CAVE WAVE C2 SERIES 12V/24V/48V - AIR CONDITIONER 8500-9500BTU

https://canadarv.com/web/image/product.template/6297/image_1920?unique=ec7201f

Installation Compatibility

  • Roof Opening Required: 14" × 14"

  • Compatible with standard roof cutouts commonly used for roof vents and air conditioners

Dimensions & Weight

  • Rooftop Unit Dimensions:

    • 26.5" W × 27.2" L × 7.1" H

  • Interior Air Distribution Unit:

    • 20.5" W × 19.7" L × 2.0" H

  • Approximate Weight: 45 lb

2 655,00 $ 2655.0 CAD 2 655,00 $

Contact us for quote

  • Couleurs
  • Tension
  • Optional Protective Cover

Cette combinaison n'existe pas.

Contactez-nous

Conditions générales
Retour sous 30 jours pour la plupart des commandes.
Livraison gratuite sur la plupart des commandes.

DC-Powered Rooftop Air Conditioner – Slim Profile, Multi-Voltage

Designed for vans, RVs, trailers, and work vehicles, this DC-powered rooftop air conditioner delivers efficient cooling, quiet operation, and reliable four-season performance. Its slim, aerodynamic design minimizes wind resistance while maintaining strong airflow and consistent temperature control.

Built for off-grid and mobile applications, the system supports 12V, 24V, and 48V DC configurations, making it suitable for a wide range of electrical setups.

Key Features

  • High-efficiency DC inverter technology for optimized power usage

  • Quiet operation for comfortable rest and overnight use

  • Eco and turbo operating modes to balance efficiency and performance

  • Slim, low-profile rooftop design to reduce drag

  • Weather-resistant construction suitable for year-round use

  • Environmentally friendly refrigerant with reduced environmental impact

  • Remote control and mobile app compatibility for convenient operation

Optional In-House Protective Cover (Sold Separately)

An optional quilted rooftop AC cover is available for added protection when the unit is not in use.

Cover features:

  • Quilted, insulated fabric construction

  • Waterproof and weather-resistant

  • Designed for four-season protection

  • Helps protect vehicle bodywork and the AC housing from the elements

Electrical & Performance Specifications

  • Input Voltage: DC 12V / 24V / 48V

  • Operating Current:

    • 12V: 20–60A

    • 24V: 10–33A

    • 48V: 5–18A

  • Cooling Capacity: 8,500 / 9,000 / 9,500 BTU (model dependent)

  • Airflow Rate: 250 CFM

  • Rated Power: 600W

Power Consumption & Noise Levels

  • Eco Mode Power Draw: 100–250W

  • Turbo Mode Power Draw: 400–600W

  • Eco Mode Noise Level: ~45 dB

  • Boost Mode Noise Level: ~54 dB

Refrigerant & Environmental Design

  • Refrigerant Type: R454B

  • Charge Amount: 425 g

  • Designed to reduce environmental impact while maintaining effective cooling performance

Warranty

  • 5-year limited warranty

Couleurs Black or White
Tension 12V or 24V or 48V
Optional Protective Cover Without or With
