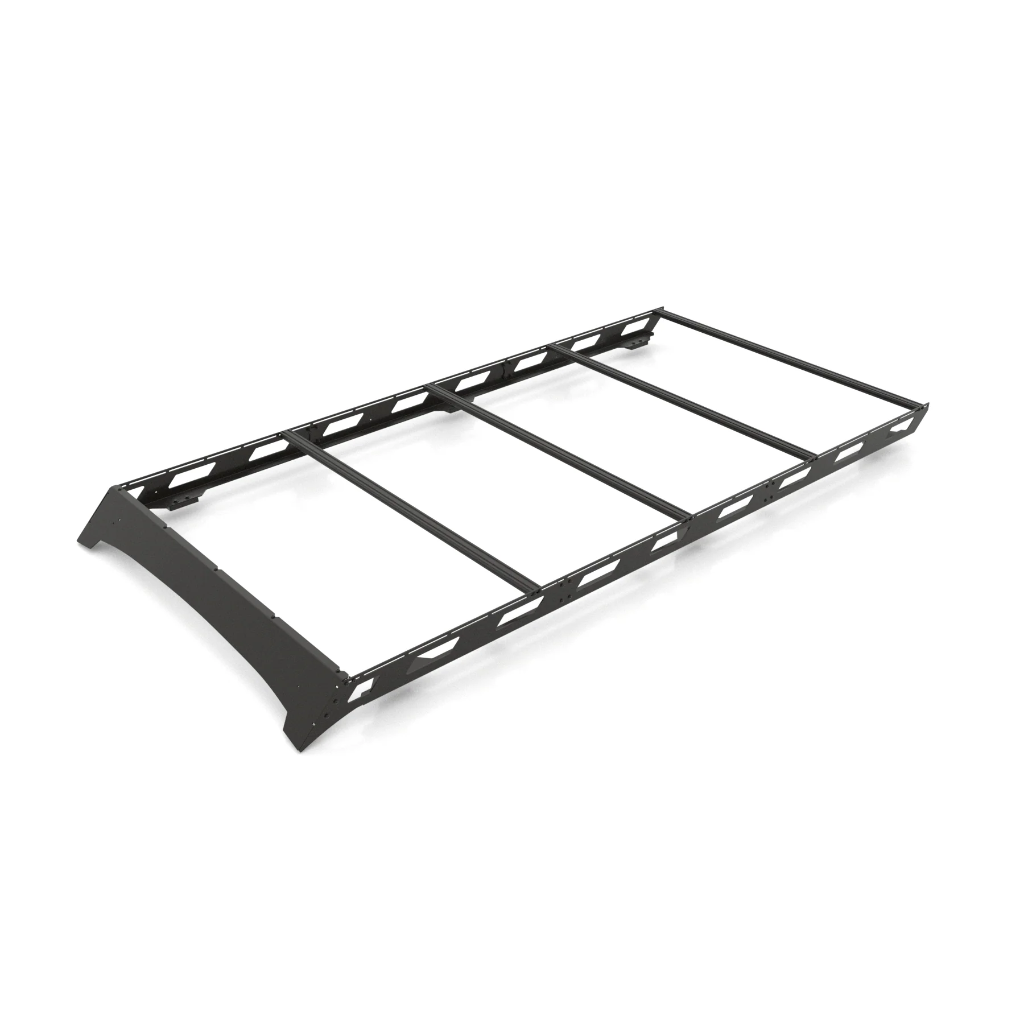

Ram Promaster 136" Roof Rack
Click here to download the installation instructions
Features:
- Modular design for easy installation, arrives flat-packed
- Mounts directly to Promaster roof bolts, simplifying the installation process
- Lightweight aluminum side rails and crossbars totaling 52 lbs, complete with powder-coated aluminum wind fairing, brackets, and stainless steel hardware
Full Details:
Most Transit roof racks cost over $4k, require heavy machinery to install and are not DIY friendly. Our brand new modular Ram Promaster rack is half the price, can be installed by a single person in less than a day, and can hold anything and everything (solar panels, light bars, decking, rooftop tents, awnings...etc.)
The side walls are water-jet cut from 3/16" powder-coated aluminum, and mount to the van with 6 brackets that mount into the Promaster factory roof bolts. Crossbars are black 8020 aluminum extrusion making it very flexible and easy to mount up other items. The rack comes with 5 crossbars, 1 for the wind fairing, but can hold many many more.
Designed specifically for the Ram Promaster, 136" wheelbase, high-roof.
NOT COMPATIBLE with 118", 159" or 159" extended wheelbases, or low-roof.
Total weight is 52 lbs.
Specifications
| Weight | 52 lbs. |
| Total Length | 128in (3256mm) |
| Mounting Length | 120in (3053mm) |
| Total Width | 64in (1626mm) |
| Mounting Width | 63.625in (1616mm) |
| Height | 5in (127mm) |
Compatibility
Designed specifically for the Ram Promaster, 136"" wheelbase, high-roof.
NOT COMPATIBLE with 118"", 159"" or 159"" extended wheelbases, or low-roof.
Compatible with Fiamma 45s and Thule awnings (no drilling needed!)
Width: 62.79" (1595mm)
Crossbar Length: 62.40" (1585mm)
130 HR Transit: 104.72" (266.0cm)
148 MR Transit: 132.3" (336.0cm)
148 HR Transit: 81.9" (308.0cm)
148 HR EXT Transit: 150.4" (382.0cm)
Lengths by Vehicle:
Internal Width: 62.22" (1555mm)
130 Transit: 49 lbs
148 Transit: 58 lbs
148 EXT Transit: 74 lbs
