Isotherm F115RSBAS7 Freeline 115 Silver Elegance RV AC/DC Electric Refrigerator / Freezer - 4.1 Cube feet

Isotherm F115RSBAS7 Freeline 115 Silver Elegance RV AC/DC Electric Refrigerator / Freezer - 4.1 C/F

The Freeline 115 by Isotherm represents an evolution of the Elegance line designed for both the Marine & Recreational Vehicle market. The Freeline 115 features a spacious cabinet comprised of a 83 liter fridge and a 32 liter freezer compartment which allows for storage of extra frozen goods. Unique design allows this large fridge to fit in limited spaces such as fitting the hull curve on most boats.

ENERGY EFFICIENCY

Characterized by superior cooling performance, the Freeline 115 also excels at energy efficiency. An integrated control panel allows you to select Maximum Cooling or ECO Mode for economical operation and minimum battery consumption. The Freeline 115 control panel allows easy control of fridge functions such as temperature setting and internal lighting while providing simple system diagnosis.

MARINE GRADE

Originally engineered to withstand the rigorous demands of the marine industry, Isotherm refrigerators are renowned for their robust construction and ability to perform in the challenging conditions of rough waters. This design philosophy ensures they offer superior cooling reliability, vibration resistance, and energy efficiency. The adoption of Isotherm refrigerators by the RV and Van industry is a testament to their high-end quality and versatility. The benefit is a seamless, worry-free experience, whether navigating the high seas or exploring rugged terrains, where reliability, efficiency, and durability are not just preferred but essential.

ITALIAN ENGINEERING

Isotherm refrigerators are meticulously designed and manufactured in St. Agata Feltria, Italy, a region synonymous with a rich heritage of engineering excellence and craftsmanship. This strategic location is not merely a point of origin but a testament to the brand's commitment to quality, innovation, and design. Italian manufacturing is globally revered for its attention to detail, use of premium materials, and cutting-edge technological integration, ensuring that each Isotherm refrigerator is not just an appliance but a piece of artistry.

DANFOSS COMPRESSOR

Isotherm refrigerators are powered by the renowned Danfoss/Secop compressors, offering unmatched efficiency, reliability, and quiet operation. Their superior design ensures minimal energy consumption while providing consistent, powerful cooling performance, even in the most demanding conditions. The quiet operation of the Danfoss/Secop compressors enhances the onboard or in-vehicle experience, making Isotherm refrigerators the perfect choice for those who value tranquility alongside efficiency.

EXTRA-THICK INSULATION

Manufactured with extra-thick insulation for superior performance. This design choice is instrumental in achieving reduced compressor run times, thereby enhancing overall efficiency. The thicker-than-average foam insulation not only ensures that internal temperatures are maintained more consistently, minimizing the energy required to cool the contents but also contributes to the longevity of the compressor by reducing its workload. This translates into lower energy consumption, which is especially valuable in environments where power resources may be limited. By exceeding the standard insulation thickness used by most competing brands, Isotherm sets a high bar for thermal efficiency and reliability.

INTERNAL MOUNTING

This refrigerator does not mount with a flange. Instead there are four mounting points on the interior sidewalls of the refrigerator. This allows for a clean installation that is not visible from the outside of the refrigerator.

Electric refrigerators are sensitive to power changes or insufficient power. It is important that the system can handle 15 amps of 12V DC power. A minimum of 8 gauge wire for installations up to 20 ft. is required. If the refrigerator is supplied with insufficient power, it will not operate, or show signs of difficulty operating. In order to prevent excessive battery depletion, a protection device shuts off the compressor in case of insufficient voltage (10.4v) and turns it back on when the voltage in the system increases after the batteries have been charged (11.7v).

Additional Info

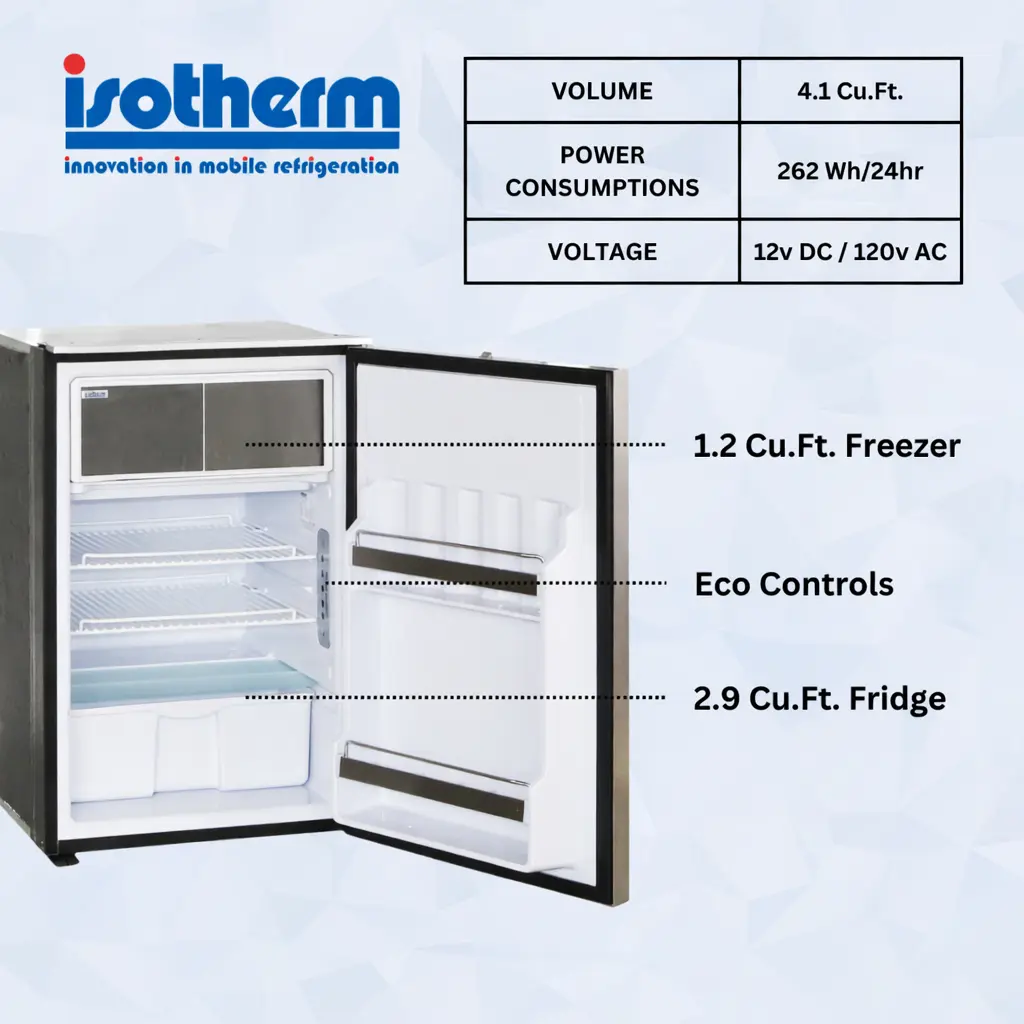

Total Capacity



4.10 cu. ft.

Refrigerator Capacity



2.97 cu. ft.

Freezer Capacity



1.13 cu. ft.

Overall Dimensions



31-1/2"H x 20-3/4"W x 21-3/8"D

Cut-Out Dimensions



31-1/2"H x 20-1/2"W x 20"D

Freezer Dimensions



5-1/4"H x 15-1/2"W x 14-1/2"D

Power Source



12V DC / 120V AC

Average Daily Power Consumption



267 Watts

Instantaneous Power Consumption



72 Watts

Compressor



BD35F

Series



Freeline Elegance

Thermostat Type



Electronic

Mounting Style



Proud Mount

Weight



71 lbs.

Color



Silver

Door Swing



Right

Note: The dimensions listed here are for reference and are not intended to be used for cabinet design. We highly recommend taking measurements from the actual product before finalizing the design of your cabinetry and/or cutouts.
