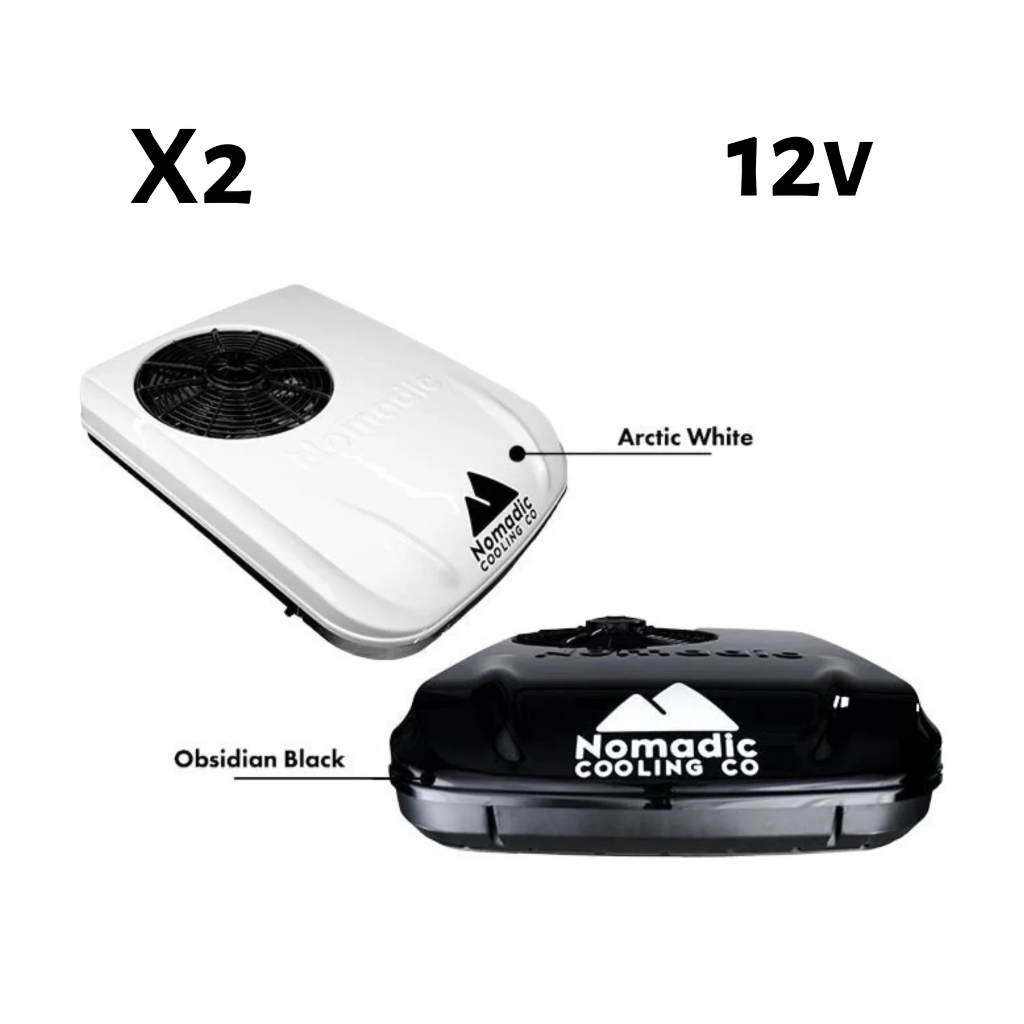

Nomadic Cooling X2 – 12V Low-Profile Rooftop Air Conditioner

Upgrade your van’s climate control with the Nomadic Cooling X2 (12V)—a compact, lightweight, and efficient rooftop air conditioner engineered for off-grid comfort. With a low-profile aerodynamic shroud and whisper-quiet operation, the X2 delivers powerful cooling without increasing roof height or wind resistance.

Designed to fit a standard 14" × 14" roof opening, the X2 installs cleanly on Sprinter, Transit, and ProMaster builds. The modern control panel offers five operating modes, adjustable vents, and smooth, quiet airflow for comfortable van life in any climate.

For an even faster and safer installation, pair it with the Nomadic Cooling Installation Kit (recommended).

Key Features

• Lightweight and Powerful Cooling

  Efficient 12V performance packed into a compact 44 lb unit.

• Low-Profile Aerodynamic Design

  Minimizes roof drag and maintains a sleek exterior.

• Standard 14×14" Opening

  Hassle-free installation on most conversion vans and RVs.

• Quiet Fan & Adjustable Vents

  Provides smooth airflow with minimal noise.

• Five Cooling Modes

  Offers complete control over airflow, temperature, and efficiency.

• Optional Installation Kit

  Ensures a secure, safe, and professional mounting process.

• Optional 1-Year Extended Warranty

  Additional protection for long-term reliability.

Technical Specifications

• Model: X2 – 12V

• Rated Cooling Capacity: 8,188 BTU

• Rated Power: 720W

• Current Draw:

  • Eco Mode: 27A

  • Max Mode: 55A

• Refrigerant: R134a

• Refrigerant Oil: POE68

• Unit Weight: 44 lbs

• Dimensions: 28.0" × 22.5" × 6.9"

• Power Cable: 4 AWG
