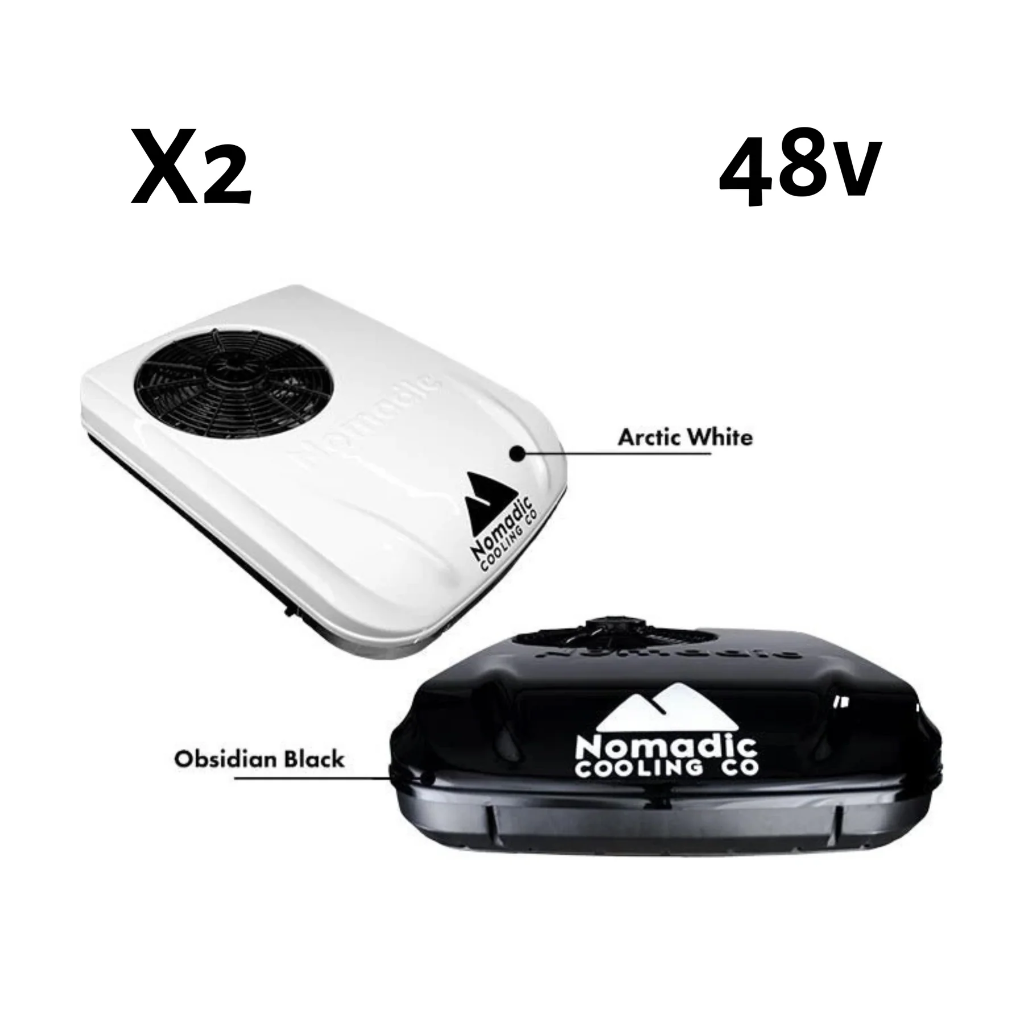

Nomadic Cooling X2 – 48V Air Conditioner

Features

• Lightweight, powerful design with a sleek, low-profile shroud

• Fits a standard 14x14" roof opening for easy installation

• Quiet fan with adjustable vents for improved air distribution

• Five operating modes for full user control

• Operates on a 48V system, offering high efficiency and reliable performance

Overview

The Nomadic Cooling X2 (48V) is a compact and efficient rooftop air conditioner designed specifically for van conversions, RVs, and mobile living setups. Its lightweight construction and aerodynamic profile make it one of the smallest yet most capable units available.

Despite its compact size, the X2 delivers strong cooling performance with low noise output, thanks to its whisper-quiet fan and adjustable air vents. Installation is straightforward due to its compatibility with the industry-standard 14x14" roof cutout.

With a modern control panel offering five operating modes, users can easily fine-tune cooling performance to match changing conditions. The X2 is built for reliability, energy efficiency, and continuous off-grid use on a 48-volt power system.

Specifications – 48V Model

• Current Eco Mode (A): 8A

• Current Max Mode (A): 15A

• Rated Power (W): 1,070W

• Cooling Capacity: 12,150 BTU

• Refrigerant: R134a

• Refrigerant Oil: POE68

• Weight: 44 lbs

• Unit Dimensions (in): 28.0 × 22.5 × 6.9

• Turbo 33delta (51V): 13A – 663W

Key Features

• Lightweight but powerful cooling performance

• Aerodynamic, low-profile rooftop shroud

• Fits standard 14x14" openings

• Quiet fan with adjustable air vents

• Five control modes for customizable operation

• Simple, user-friendly installation

• Optional one-year extended warranty

• Inventory arriving soon
