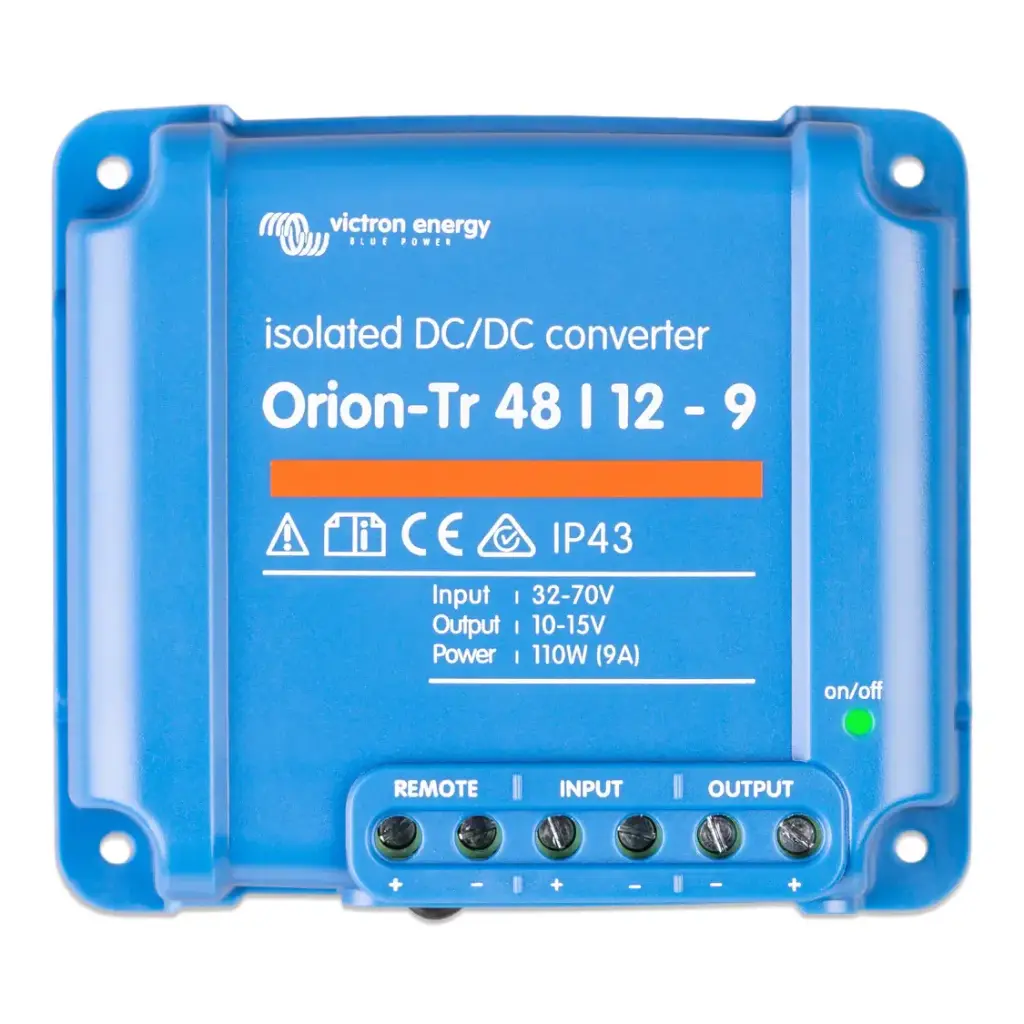

Victron Energy Orion-Tr 48/12-9A (110W) – Isolated DC-DC Converter

The Victron Orion-Tr 48/12-9A is a high-performance isolated DC-DC converter engineered to deliver stable 12V power from a 48V source. With a 9A output and 110W capacity, it’s the ideal solution for vehicle, marine, and off-grid systems requiring reliable step-down power conversion.

🔋 Key Features

• Isolated Design: Galvanic isolation between input and output enhances system safety and protects sensitive electronics.
• 9A Output / 110W Rated Power: Delivers clean and consistent 12V DC power for a variety of 12V devices.
• Remote On/Off Terminal: Enables easy control via low-power switches, such as engine run/stop switches—no need for high-current wiring interruptions.
• Parallel Operation: Connect multiple units in parallel for higher output current—scalable for growing system needs.
• High-Temperature Protection: Output current is automatically reduced in high ambient temperatures, ensuring long-term reliability.
• IP43 Rated: Provides dust and water resistance when installed with terminals facing downward.
• Adjustable Output Voltage: Allows fine-tuning of output (note: not intended for battery charging).
• Screw Terminals: Easy installation with standard tools—no crimping or special connectors needed.
• Internal Input Fuse: Built-in protection on 12V and 24V input models (not replaceable).

⚠️ Not for Battery Charging

This model is not designed for battery charging applications. For battery-to-battery charging, consider the Victron Orion-Tr Smart DC-DC charger series, which includes intelligent multi-stage charging profiles for lead-acid and lithium batteries.

📦 Applications

• RVs, vans, and campers with 48V house banks
• Marine power systems
• Industrial or telecom off-grid setups
• Solar energy systems requiring 12V device power from 48V storage

Ensure dependable power conversion with the Victron Orion-Tr 48/12-9A DC-DC Converter—a rugged, efficient, and compact solution built for the demands of real-world mobile and off-grid environments.
