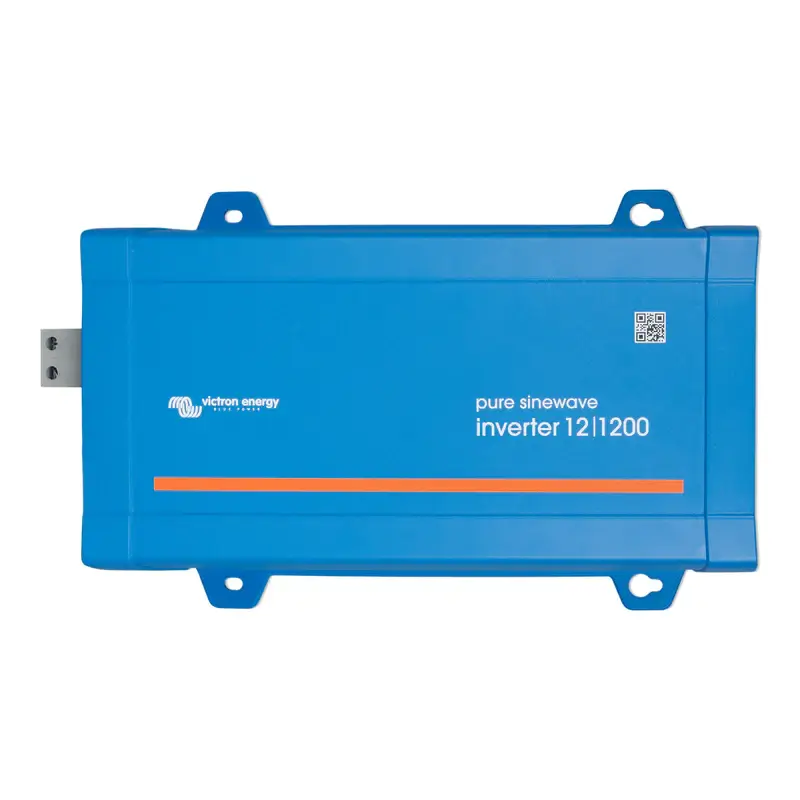

Victron Energy 12/1200 120V VE.Direct NEMA 5-15R Phoenix Inverter
Victron Energy Phoenix Inverter 12/1200 VE.Direct 120V – NEMA 5-15R
Model: PIN122122500
Power your 120V AC appliances using 12V DC leisure or automotive batteries with the Victron Phoenix Inverter. Engineered with a full bridge and toroidal transformer, this pure sine wave inverter is reliable, efficient, and ideal for off-grid, mobile, and backup power applications.
Key Features:
- Pure sine wave output ensures safe operation of sensitive electronics
-
VE.Direct communication port for monitoring and configuration via:
- VictronConnect app (Bluetooth dongle required)
- VE.Direct to USB interface (for PC connection)
-
Fully configurable parameters:
- Low battery alarm and cutoff thresholds
- Output voltage (210–245V) and frequency (50/60Hz)
- ECO mode on/off and sensitivity level
- Dynamic cut-off based on load
- High startup power to handle inductive loads like LED drivers and power tools
- Short circuit and overheat protection for robust safety
- Remote on/off terminals for external control
- ECO mode enables standby at low load (<15W), saving energy
- LED status diagnostics (see manual for details)
Additional Info:
- DC Connection: Screw terminals – no special tools required
- AC Output: NEMA 5-15R
- Compatible with Filax automatic transfer switch (for seamless switching to alternate AC sources)
Applications: Ideal for RVs, boats, mobile workstations, and off-grid homes.
