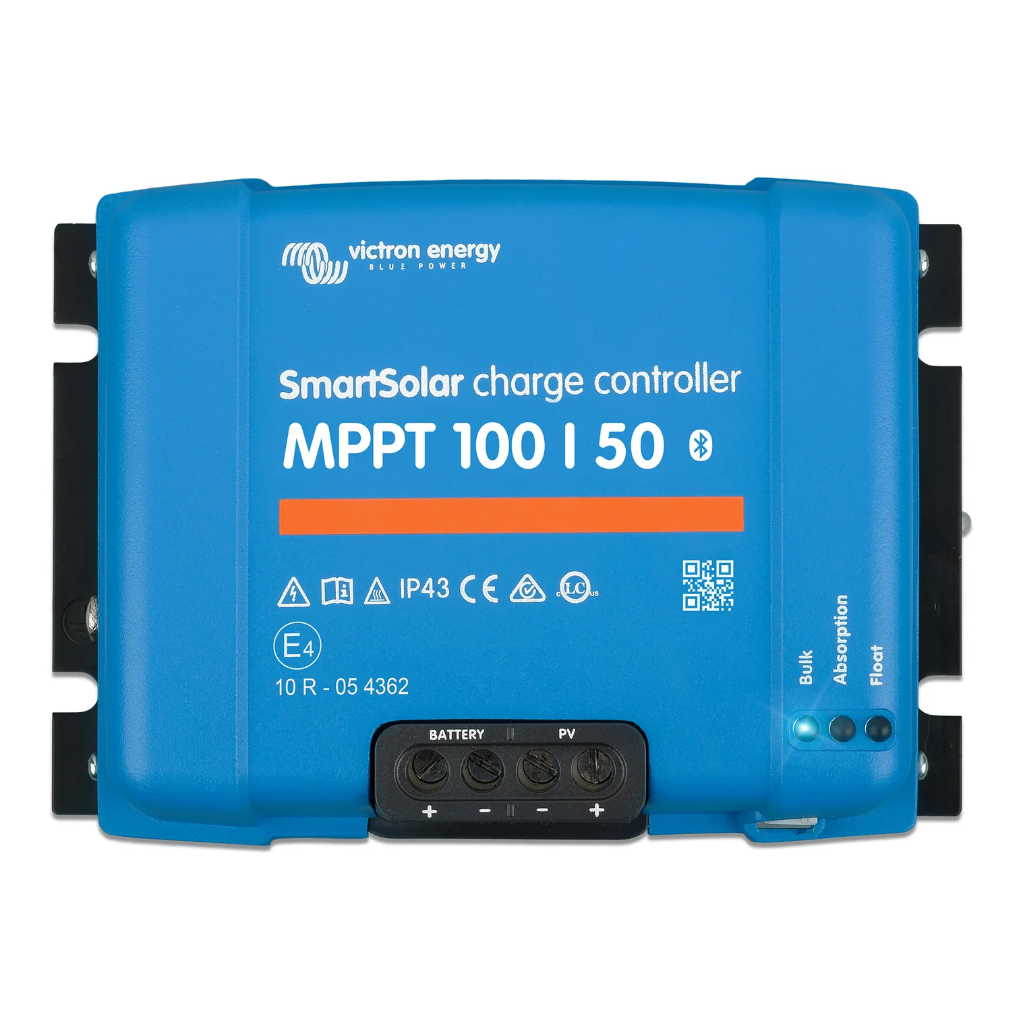

Victron Energy SmartSolar MPPT 100/50 Solar Charge Controller | SCC110050210

Victron Energy SmartSolar MPPT 100/50 Solar Charge Controller | SCC110050210

How does a Victron Energy MPPT Solar Charge Controller work?  How to change Victron MPPT solar charge controller settings using Bluetooth?

SmartSolar Charge Controller: Key Features

Wireless Connectivity

✔ Bluetooth Smart Built-in – Wireless setup, monitoring, updates, and synchronization for your SmartSolar Charge Controllers.

✔ VE.Direct Port – For wired connections to Color Control GX, other GX products, PC, or compatible devices.

Ultra-Fast MPPT (Maximum Power Point Tracking)

✔ Maximizes energy harvest, especially in changing weather.

✔ Up to 30% more efficient than PWM controllers and up to 10% more efficient than slower MPPT controllers.

Advanced MPPT for Partial Shading

✔ Detects multiple power points in shaded conditions.

✔ The BlueSolar algorithm ensures the controller always locks to the optimal maximum power point (MPP), improving energy harvest.

Outstanding conversion efficiency

✔ No cooling fan required, achieving >98% efficiency.

✔ Provides full output current up to 40°C (104°F).

Flexible Charging Options

✔ Fully programmable charge algorithm (see website for details).

✔ Eight pre-programmed algorithms, easily selected via a rotary switch (manual available).

Comprehensive Protection

✔ Over-temperature protection and power derating for high temperatures.

✔ PV safety features: short-circuit, reverse polarity, and reverse current protection.

Temperature & Voltage Monitoring

✔ Internal temperature sensor adjusts charge voltage based on temperature.

✔ Optional external monitoring via Smart Battery Sense or BMV-712 Smart Battery Monitor for battery voltage and temperature.

Battery Recovery from Full Discharge

✔ Will begin charging even if the battery is at zero volts.

✔ Reactivates fully discharged Li-ion batteries with integrated disconnect function.
